The Leica FlexLine TS03 high-quality, manual total station is based on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years. The Leica TS03 is equipped with a comprehensive application-based software package – Leica FlexField software – that enables most survey and stakeout tasks to be carried out easily and efficiently. The new FlexLine TS03 works reliably and delivers accurate results even in the harshest environments.
• Work faster: measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our comprehensive and user-friendly Leica FlexField software.
• Use it trouble-free: increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
• Choose products that are built to last: FlexLine operates with the same high level of quality even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold).
• Control your investment: reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.

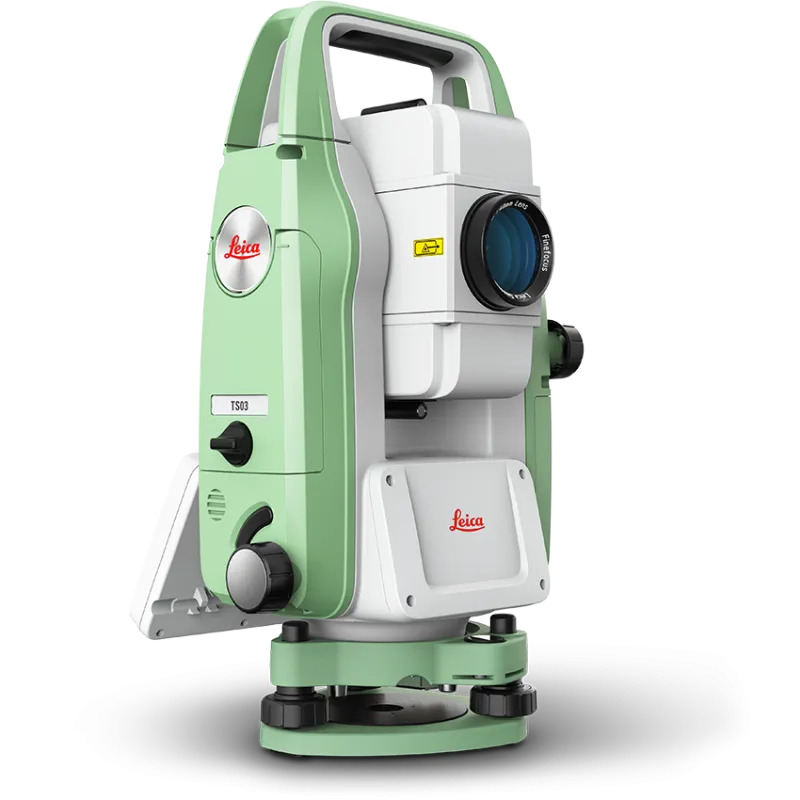

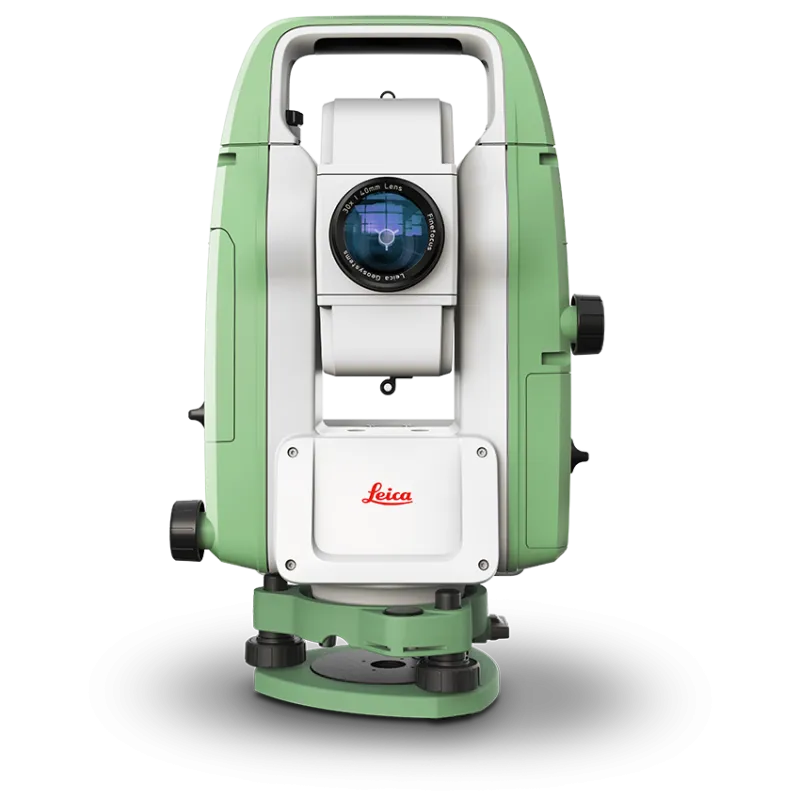

Leica FlexLine TS03 Manual Total Station
Contact Details
| Leica FlexLine TS03 | ||
| ANGULAR MEASUREMENT | ||
| Accuracy Hz and V | Absolute, continuous, diametrical1 | 2’’ / 3’’ / 5’’ |
|
 |
|
| DISTANCE MEASUREMENT | ||
| Range |
|
|
| Non-Prism / Any surface | ||
| R500 | |
|
| R1000 |  |
|
| Accuracy / Measurement time |
Single prism
|
|
Non-Prism / Any surface
|
|
|
| Laser dot size |
|
|
| Telescope |
|
|
| GENERAL | ||
| Display and keyboard | 3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys5a | |
| 2nd keyboard | |
|
| Key illumination | |
|
| Operation |
|
|
| Power management | Exchangeable Lithium-Ion battery | |
| Operating time with GEB361 | up to 30h | |
| Operating time with GEB331 | up to 15h | |
| Battery charging time with | ||
| GKL341 charger for GEB361 / GEB331 | 3h 30min / 3h | |
| GKL311 charger for GEB361 / GEB331 | 6h 30min / 3h 30min | |
| Data storage |
|
|
| Processor |
|
|
| Interfaces | RS2327, USB device | |
| Bluetooth®8, WLAN9 | |
|
| Mobile Data sidecover: LTE-Modem for internet access | |
|
| Guide Light (EGL) |
|
|
| Laser plummet (Laserclass 2) |
Accuracy
|
|
| AutoHeight module for automatic instrument height measurement (Laserclass 2) | Accuracy
|
|
| Weight | 4.3kg | |
| Environmental specifications | Working temperature range: –20°C to +50°C | |
| Arctic version: –35°C to +50°C | |
|
| Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing | |
|
| Military Standard 810G, Method 506.5 | |
|
