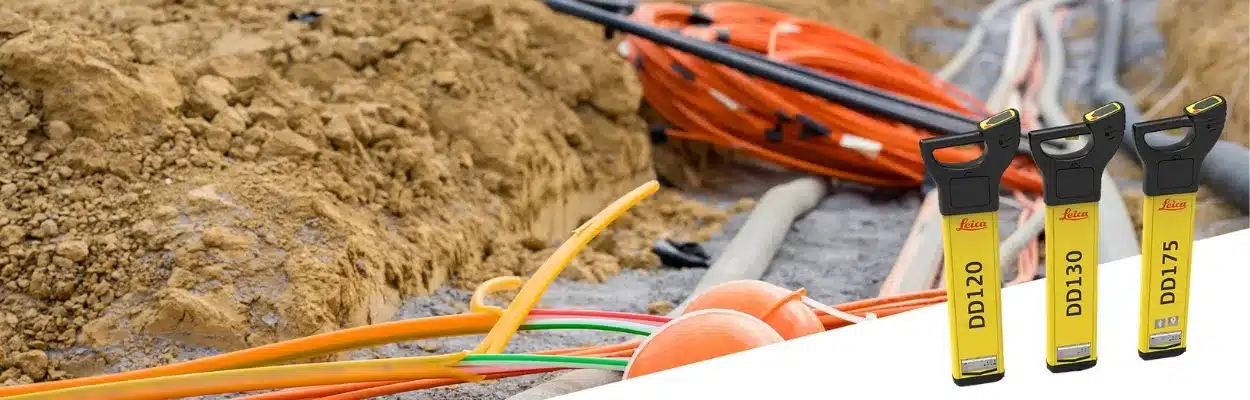

Reveal the utilities beneath the surface with confidence
The Leica DD100 Series cable locators combine intelligent automatic controls with simple operation, making underground utility detection easier for every user. As a result, teams can locate buried cables and pipes before excavation begins. This approach reduces risks, supports safer digging and prevents costly utility strikes.
When used with a DA175 or DA230 signal transmitter, or with compatible accessories, the DD100 Series provides greater accuracy and broader application coverage. In addition, the DD175 model introduces Bluetooth and GPS, allowing data transfer through the DX Software Suite. This connectivity improves reporting, documentation and overall workflow efficiency.

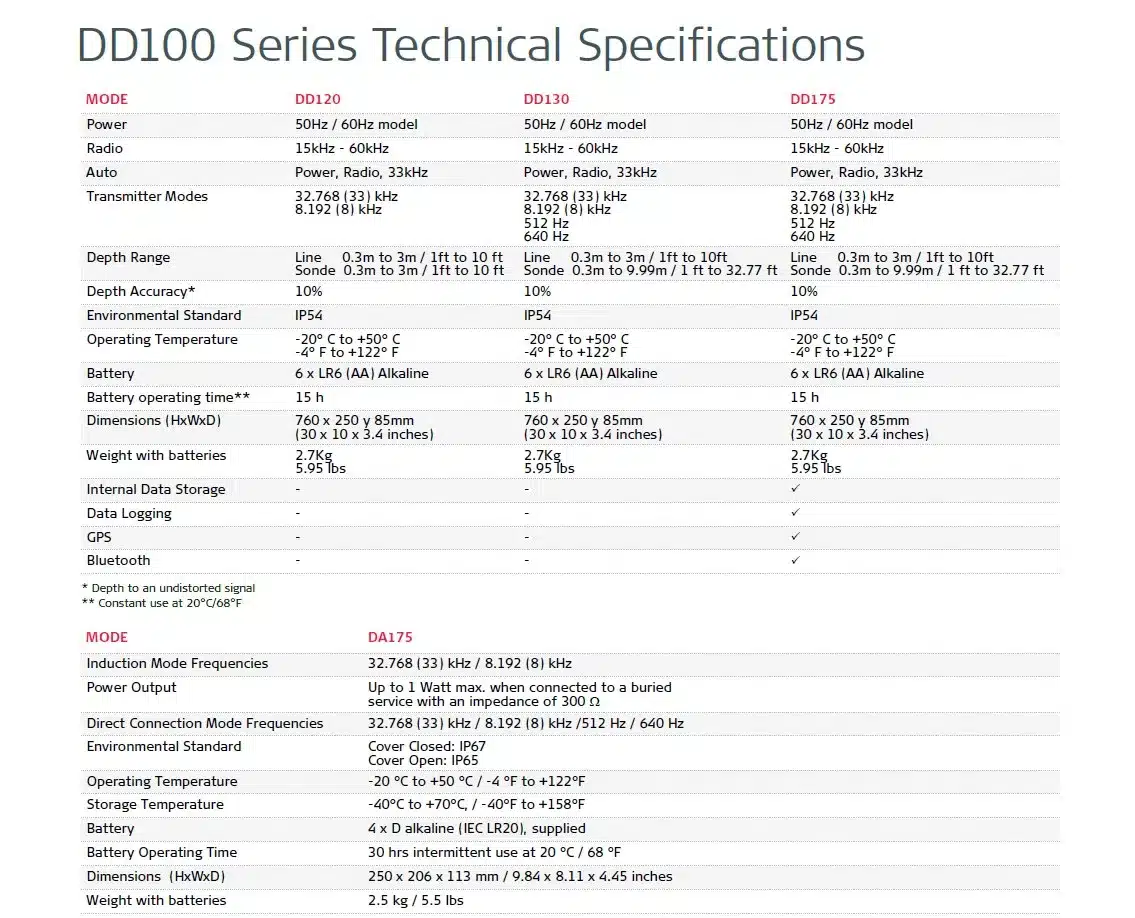

Leica DD120 – Key Highlights
- Automatic pinpoint detection
- Power, radio and auto modes
- Operates with transmitters at 33 kHz and 8 kHz
- Depth detection up to 3 metres
- Good to Go health check and start up test
- IP54 dust and water protection
Leica DD130 – Enhanced Capabilities
- Extended trace range with 512 Hz and 640 Hz
- Signal current measurement
- Depth detection up to 10 metres
Leica DD175 – Advanced Performance
- Integrated GPS and Bluetooth
- Internal data logging
- Compatible with the DX Software Suite
- Extended trace range with 512 Hz and 640 Hz
- Signal current measurement for confident identification
Benefits of the Leica DD100 Series
- Supports safer excavation
- Reduces service-strike risks
- Improves accuracy
- Enhances reporting with optional connectivity
