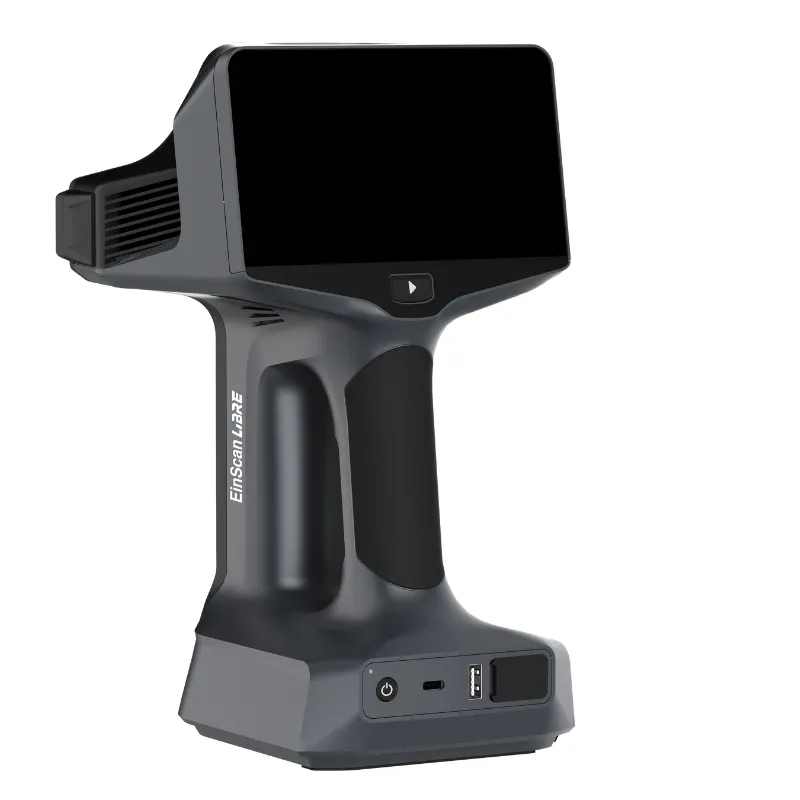

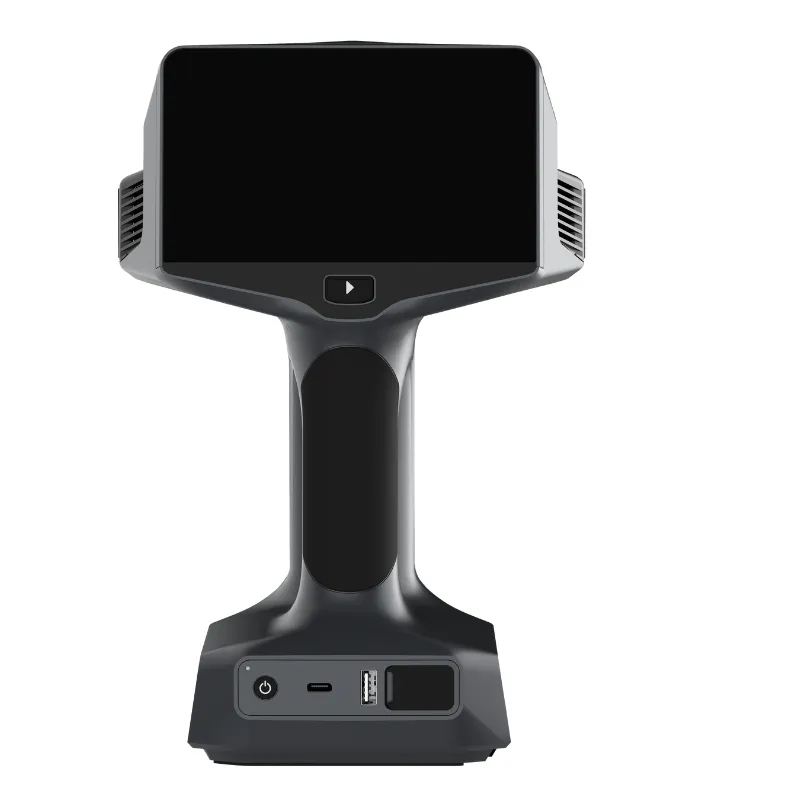

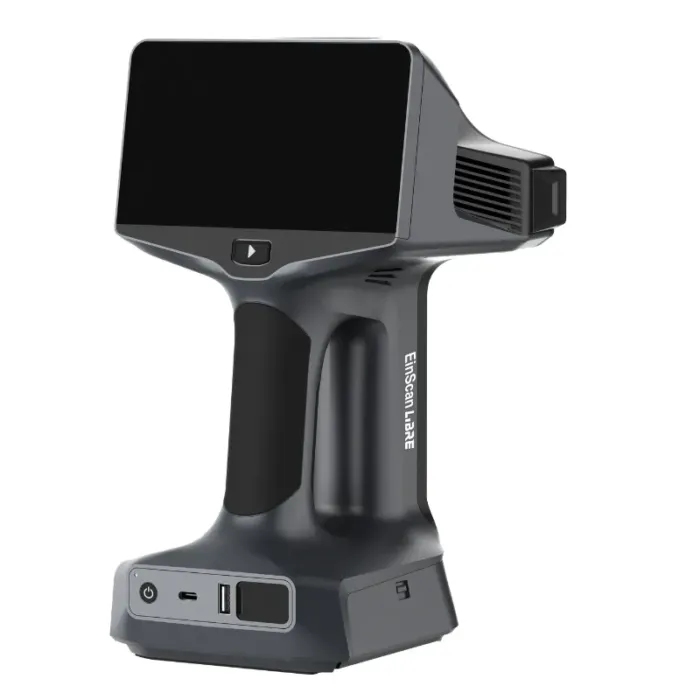

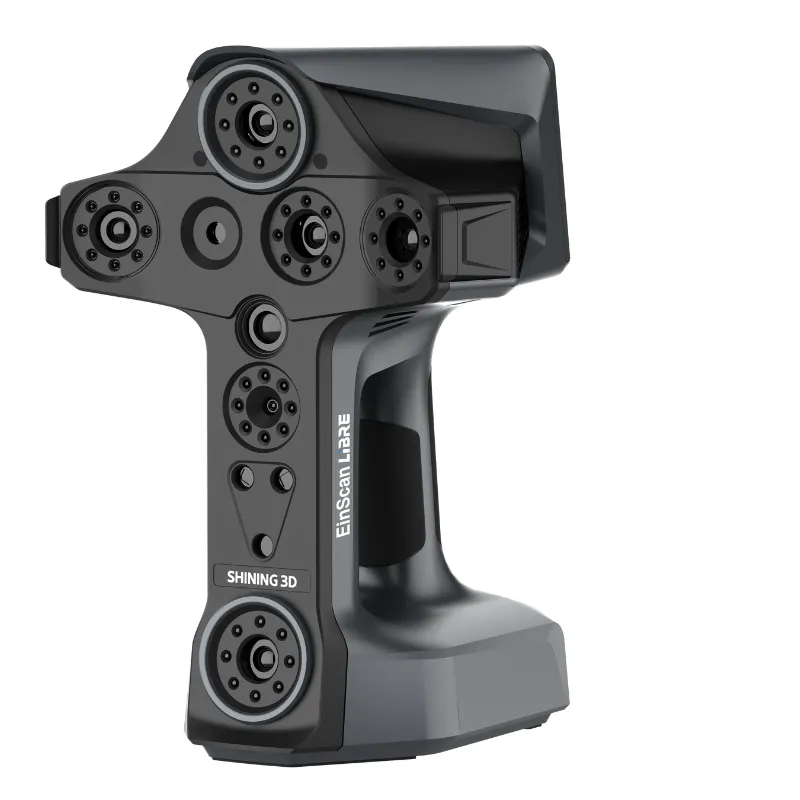

EinScan Libre

Contact Details

All-in-one laser 3D scanner: wireless, marker-free, and full-color capable.

  • Completely wireless and standalone operation
  • On-device scan-to-mesh processing
  • Markerless laser scanning with detailed textures
  • Powered by high-performance NVIDIA embedded computing
SKU: EinScan Libre Category:

Description

Get ready, get Libre!

The EinScan Libre offers a completely wireless, standalone 3D scanning solution, featuring an integrated display and high-performance NVIDIA processor. It combines flexibility and efficiency, delivering accurate results with intuitive, easy-to-use functionality.

Completely Wireless

High-Performance Processor



Laser & Infrared Light



Complete On-device Workflow

Multiple Scan Modes

Lifelike Color Reproduction

Cut the Cord, Go Wireless

  • 5.5-Inch OLED Touchscreen
    Easily capture, preview, and manage scans with an intuitive, user-friendly display interface.
  • Built-In Computing System
    Perform scanning and processing directly on the device—no external computer needed.
  • Swappable Rechargeable Batteries
    Minimize downtime with quick-swap batteries and a dedicated charging dock, keeping you ready to scan anytime.

Brains Behind the Speed

Designed for speed and mobility, the EinScan Libre combines powerful performance with ample storage—offering wireless freedom without sacrificing efficiency.

  • High-Performance NVIDIA Processor
    Powered by the integrated Jetson Orin NX 16GB with an 8-core CPU and Ampere GPU featuring 1024 CUDA cores for ultra-fast data processing.
  • 1TB SSD Storage
    Scan large, high-resolution models with confidence—plenty of space ensures you never miss a detail, no matter the project size.

All Modes On Deck

Easily switch between the EinScan Libre’s three dynamic scanning modes, optimized for capturing objects from 0.1m up to over 10m in size. With both infrared and laser options, the scanner adapts seamlessly to various materials and environments—including challenging outdoor settings with direct sunlight.

Laser HD Mode

Breakthrough 101-laser-line technology delivers ultra-detailed, marker-free scanning with rich, textured results.

  • High-resolution scanning up to 0.05 mm

  • 101 blue laser lines for exceptional accuracy

  • Supports texture-based alignment for precise model generation

IR Rapid Mode

Perfect for scanning large areas, this mode delivers fast, marker-free performance using invisible, eye-safe infrared light. Its low sensitivity to ambient light makes it highly effective for outdoor environments.

  • Working distance up to 1.5 meters

  • Expansive field of view: 983 x 979 mm

IR Adaptive Mode

Optimized for scanning reflective and dark surfaces, this mode ensures consistent and accurate results in challenging conditions.

  • 38 infrared laser lines for enhanced surface capture

  • Volumetric accuracy up to 0.04 + 0.06 mm/m

Lifelike Color Reproduction

Capture stunning high-resolution color with the EinScan Libre’s advanced 48MP color camera. It delivers exceptional color accuracy and vivid detail, ensuring every scan reflects the true-to-life richness of your subject with unmatched clarity.

Where Wireless Meets Accuracy

Enjoy the ultimate combination of precision and portability with the EinScan Libre. This cutting-edge wireless scanner offers outstanding volumetric accuracy of up to 0.04 + 0.06 mm/m, capturing every detail with exceptional clarity. From detailed designs to complex projects, the EinScan Libre delivers dependable, high-accuracy performance—all in a fully wireless platform.

What You Can Achieve with Our Scanners
Explore how SHINING 3D scanners deliver versatile, high-performance solutions tailored to meet the demands of multiple industries.

The EinScan Libre is built for unmatched versatility, effortlessly scanning a wide range of surface types—including difficult reflective and dark materials. Its advanced Laser HD mode supports marker-free operation, offering a seamless solution for capturing complex textures and highly detailed scans with ease.

Featuring a 48MP texture camera, the EinScan Libre captures cultural heritage assets with exceptional detail and vivid color. Its marker-free Laser HD mode ensures precise, high-fidelity digitization—preserving historical artifacts with remarkable accuracy and lifelike authenticity.

Completely cable-free and independent of laptops, this versatile scanner allows effortless mobility across various work environments. Equipped with a 5.5-inch touchscreen and swappable rechargeable batteries, it simplifies the process of scanning large components with maximum efficiency.

Utilizing fast infrared light scanning, the EinScan Libre captures large-scale machinery with ease—no markers required. Ideal for professionals in industries like construction, product design, and more, this all-in-one scanner empowers users to handle a wide range of projects efficiently with a single, high-performance device.

Complete On-Device Workflow



Mesh Data Output

Generate mesh data effortlessly with one-click processing—entirely on the device. Export your scans in STL, OBJ, ASC, and LAS formats, ready for use across a wide variety of professional applications.

Quick Data Editing

Streamline your workflow by editing scan data directly on the device—no need for external software or additional steps.

Data Quality Indicator

Blue zones represent complete scan data, while yellow zones highlight areas needing additional coverage for optimal results.

Range Indicator Box

The scanner displays a green rectangle to visually indicate the active scanning area in real time.

In-Project Resolution Adjustment

Adjust resolution settings on the fly without restarting your project. Effortlessly view, modify, and resume scanning without any workflow disruptions.

Working Distance Adjustment

Adjust the data collection distance range to either eliminate background noise or maximize scan data capture, depending on your project needs.

Light & Dark UI Adaptation

Choose between light and dark themes to optimize visibility and comfort, boosting focus and productivity in any workspace or lighting condition.

Flexible Hybrid Alignment Modes

Freely combine feature, texture, and marker alignment modes to create hybrid scanning solutions tailored to a wide range of applications and object types.

Precision Boost with Scale Bar

The EinScan Libre’s certified scale bar enhances calibration precision and seamlessly integrates with photogrammetry technology, enabling real-time marker verification and boosting accuracy for large-scale object scanning.

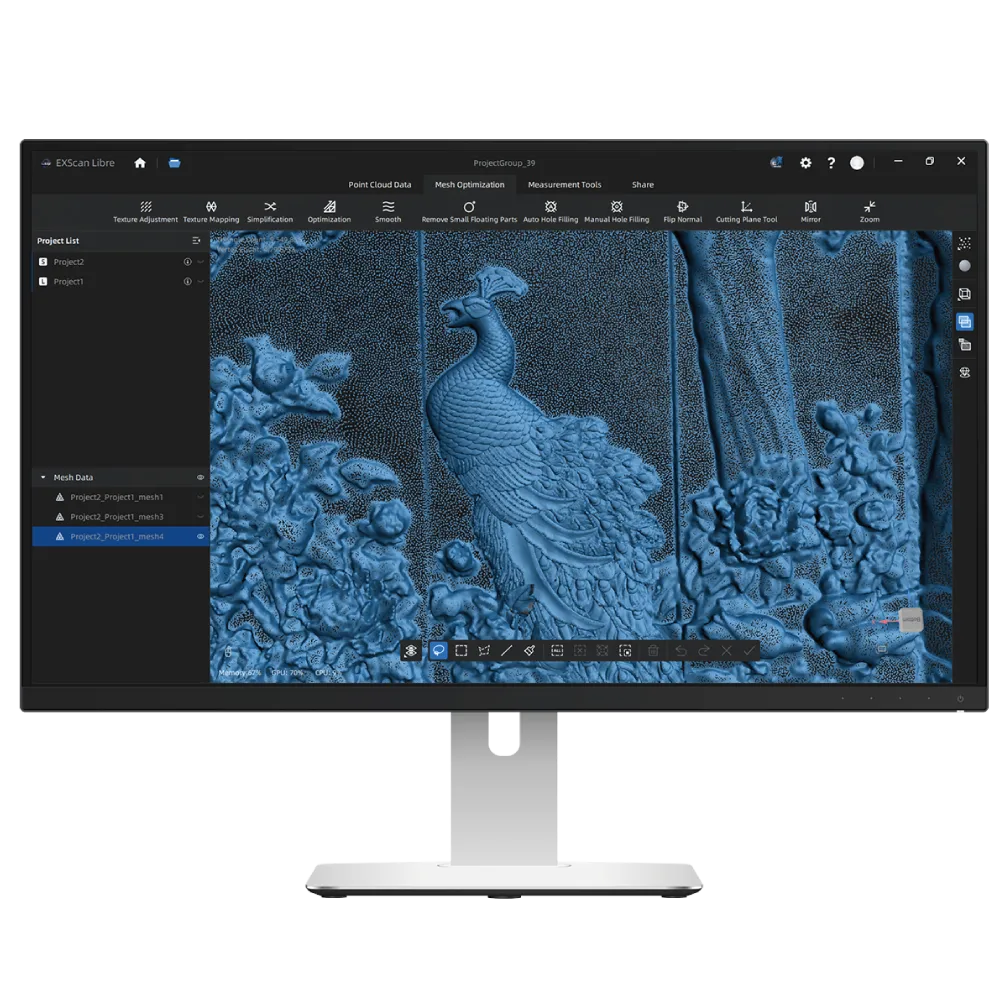

Enhanced PC Integration

Multi-resolution fusion

Seamlessly merge scans captured at different resolutions and in multiple modes to achieve superior, high-accuracy results.

Resource-efficient system

Provides seamless, high-efficiency performance without relying on high-end or specialized computer systems.

Flexible workflow

Supports multi-tasking workflows for greater flexibility, enabling efficient performance beyond traditional single-threaded operations.

Measurement functions

Offers a range of coordinate alignment methods and supports precise measurements, including distance, surface area, and volume calculations.

Compatible Software

EinScan Libre Tech Specs

Volumetric accuracy

Up to 0.04 + 0.06 mm/m

Scan speed

Up to 4,500,000 points/s (Laser HD)

Light source

IR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines; Laser HD: 101 blue laser lines

Resolution (point distance)

IR Rapid & IR Adaptive: 0.5 ~ 10 mm; Laser HD: 0.05 ~ 3.0 mm

Maximum FOV

Up to 983 x 979 mm (IR Rapid)

Alignment modes
  • Feature / Texture / Hybrid / Markers / Global markers
