Leica Absolute Scanner LAS

The user-friendly option for large-volume manual laser scanning

Bringing complete usability to shop-floor laser scanning, the Leica Absolute Scanner LAS is an affordable and easy-to-use way to add 3D digitisation to your metrology toolset.

Collecting accurate point-cloud data in measurement volumes of up to 60 metres, LAS-20-8 combines the six degrees of freedom (6DoF) measurement capabilities of the Leica Absolute Tracker AT960 coordinate measuring machine (CMM) with a lightweight and ergonomically-designed handheld laser scanner unit to provide a complete and user-friendly portable 3D scanning solution.

Optimised for manual inspection applications and offering excellent performance in non-contact freeform surface inspection, the LAS-20-8 handheld laser scanner is packed with operator-friendly features.

LAS automatically adjusts the laser intensity to adapt to changes in material or ambient light, so you can generate detailed dimensional data on even on shiny metallic or dark objects without spending time on surface preparation. Designed for quick changes between inspection techniques, the LAS scanner is automatically recognised by the laser tracker for seamless shifts between reflector, probe and scanner measurements, making it the perfect complement to the Leica T-Probe. You can also use the main button to select a customisable pre-set measurement profile, allowing you to use the optimum setup for each section of the part without needing to make adjustments in the software.

The scanner unit features a built-in guidelight and three line-of-sight indicators to ensure correct positioning for the best possible scan results. Visual, acoustic and haptic indicators enable you to see, hear and feel feedback from the scanner to give you complete confidence in your operations. IP50 rated and with a battery power option, LAS is the handheld laser scanning solution that can be taken anywhere.

SKU: Leica Absolute Scanner LAS Category:

Description

Features

Leica Absolute Scanner LAS

The user-friendly option for large-volume manual laser scanning

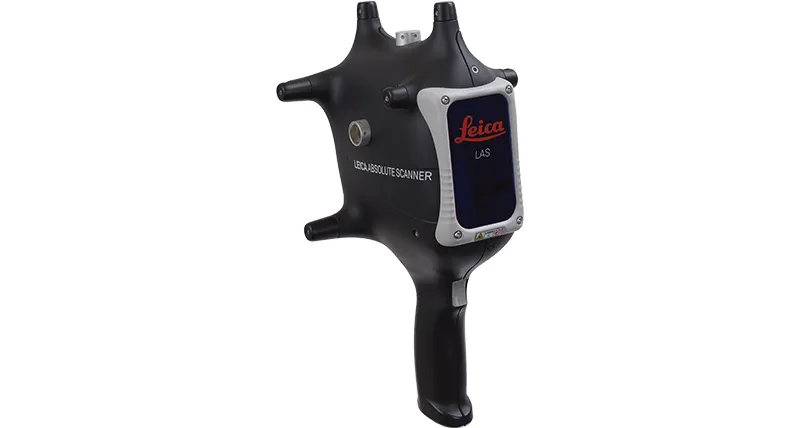

Leica-Absolute-Scanner-20-8

Bringing complete usability to shop-floor laser scanning, the Leica Absolute Scanner LAS is an affordable and easy-to-use way to add 3D digitisation to your metrology toolset.

Collecting accurate point-cloud data in measurement volumes of up to 60 metres, LAS-20-8 combines the six degrees of freedom (6DoF) measurement capabilities of the Leica Absolute Tracker AT960 coordinate measuring machine (CMM) with a lightweight and ergonomically-designed handheld laser scanner unit to provide a complete and user-friendly portable 3D scanning solution.

Optimised for manual inspection applications and offering excellent performance in non-contact freeform surface inspection, the LAS-20-8 handheld laser scanner is packed with operator-friendly features.

LAS automatically adjusts the laser intensity to adapt to changes in material or ambient light, so you can generate detailed dimensional data on even on shiny metallic or dark objects without spending time on surface preparation. Designed for quick changes between inspection techniques, the LAS scanner is automatically recognised by the laser tracker for seamless shifts between reflector, probe and scanner measurements, making it the perfect complement to the Leica T-Probe. You can also use the main button to select a customisable pre-set measurement profile, allowing you to use the optimum setup for each section of the part without needing to make adjustments in the software.

The scanner unit features a built-in guidelight and three line-of-sight indicators to ensure correct positioning for the best possible scan results. Visual, acoustic and haptic indicators enable you to see, hear and feel feedback from the scanner to give you complete confidence in your operations. IP50 rated and with a battery power option, LAS is the handheld laser scanning solution that can be taken anywhere.

Leica Absolute Tracker AT960 with LAS-20-8 at Mercedes

Battery power option
The Leica Absolute Scanner LAS can be used on battery power and requires just a single network cable, offering complete portability for laser scanner measurements on the move.

Automatic adjustments for surface type
The ‘flying-dot’ operating concept enables the LAS scanner to automatically adjust laser intensity to the surface type, ensuring the best possible reading with no additional user workload.

Self-identifying sensor
The LAS laser scanner is automatically recognised by the Leica Absolute Tracker AT960, allowing you to make quick changes between 3D scanning, probing and reflector measurements.

On-scanner measurement profile change
Customisable pre-set scanning modes can be selected from the LAS’s main switch, giving you access to the right measurement profile at the right time without making adjustments in the software.

Multisensory feedback
The LAS laser scanner combines haptic, acoustic and visual feedback to guide you to the optimum measurement position with the minimum of training.

Robust IP50-rated design
Designed for robustness and durability in tough workshop conditions, LAS’s IP50 ingress protection rating gives you the ability to apply laser scanning measurement wherever you need it.

RDS software interface
Based on the same proven RDS software interface as Hexagon portable measuring arms, LAS enables you to draw on existing expertise for system checks, compensation and certifications.

Technical Details

Measurement volumes (Ø)

 Leica Absolute Tracker Model  Leica Absolute Scanner LAS Maximum Range
 AT960-MR  20 m
 AT960-LR  40 m
 AT960-XR  60 m
 AT960-SR  10 m

System Specifications

   Leica Absolute Scanner LAS
 Scanner Size / Weight (without cable)  300 x 201 x 140 mm / 0.94 kg
 Controller Size / Weight  226 x 146 x 91 mm / 1.9 kg
 Stand Off  180 mm
 Working Range  ± 40 mm
 Maximum Scan Width (at stand off)  Approximately 220 mm
 Maximum Sampling Rate  150 000 pts/sec*
 Maximum Line Frequency  100 Hz*
 Minimum Point Density (at stand off)  0.013 mm*
 Scanner / Controller IP Code  IP50 (IEC 60529) / IP30 (IEC 60529)

System Accuracies

   Leica Absolute Scanner LAS-20-8
 Measurement uncertainty of spatial length  (2  sigma)  UL = ± 60 μm if under 8.5 m (± 0.0024 in if under 27.9 ft)

 UL = ± 26 μm + 4 μm/m  if greater than 8.5 m (± 0.0010 in + 0.00005 in/ft if  greater than 27.9 ft)
 Measurement uncertainty of  sphere radius (2  sigma)  UR = ± 50 μm if under 8.5 m (± 0.002 in if under 27.9 ft)

 UR = ± 16 μm + 4 μm/m if greater than 8.5 m (± 0.0006 in + 0.00005  in/ft if  greater than 27.9 ft)

 US = ± 85 μm + 1.5 μm/m (±0.0033 in + 0.00002 in/ft)
 Measurement uncertainty of  plane surface (2  sigma)  UP = ± 80 μm + 3 μm/m (±0.0031 in + 0.00004 in/ft)
