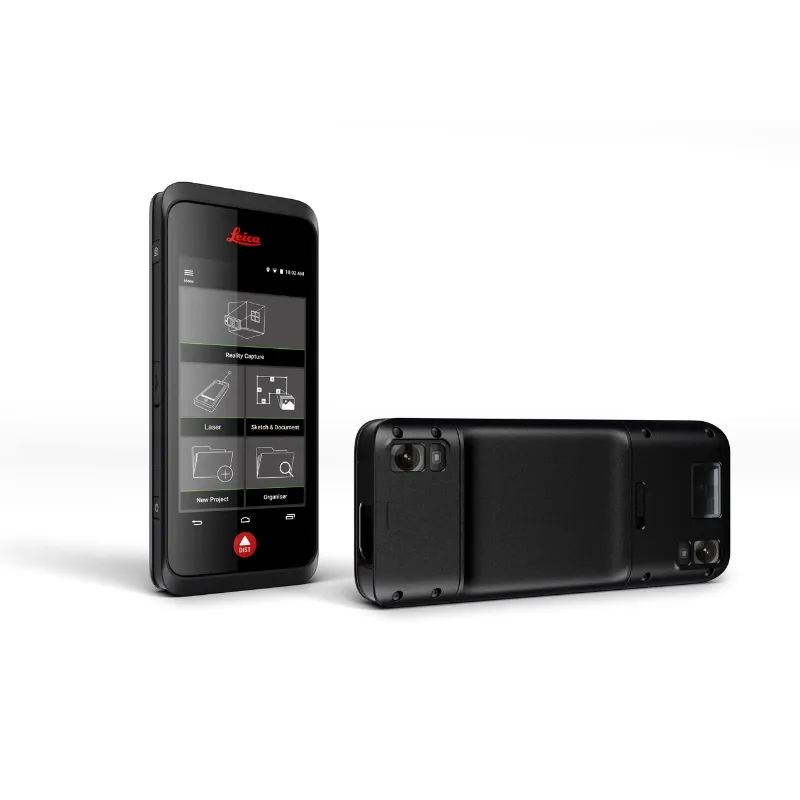

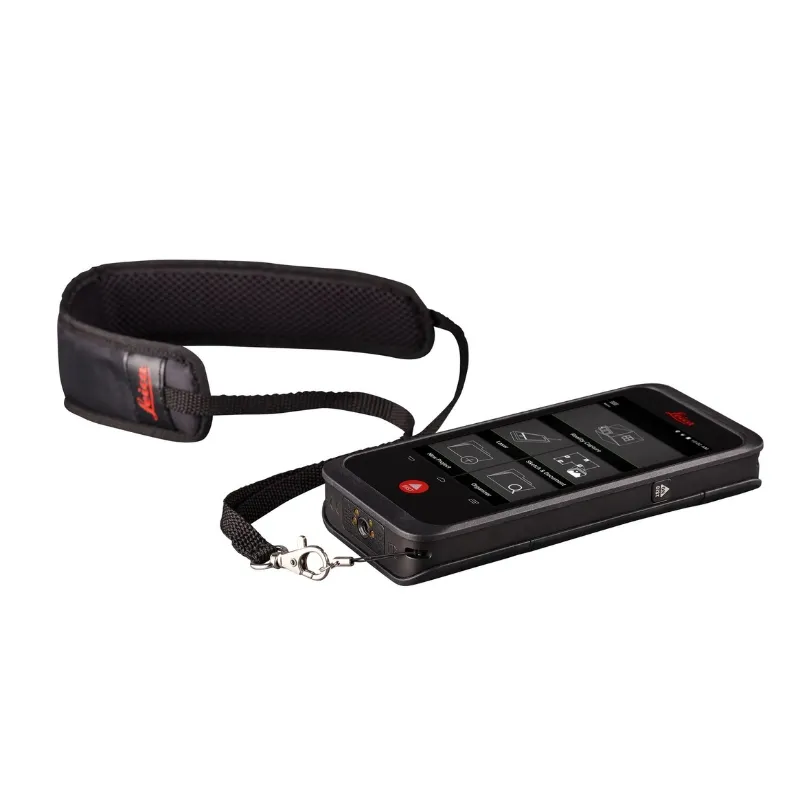

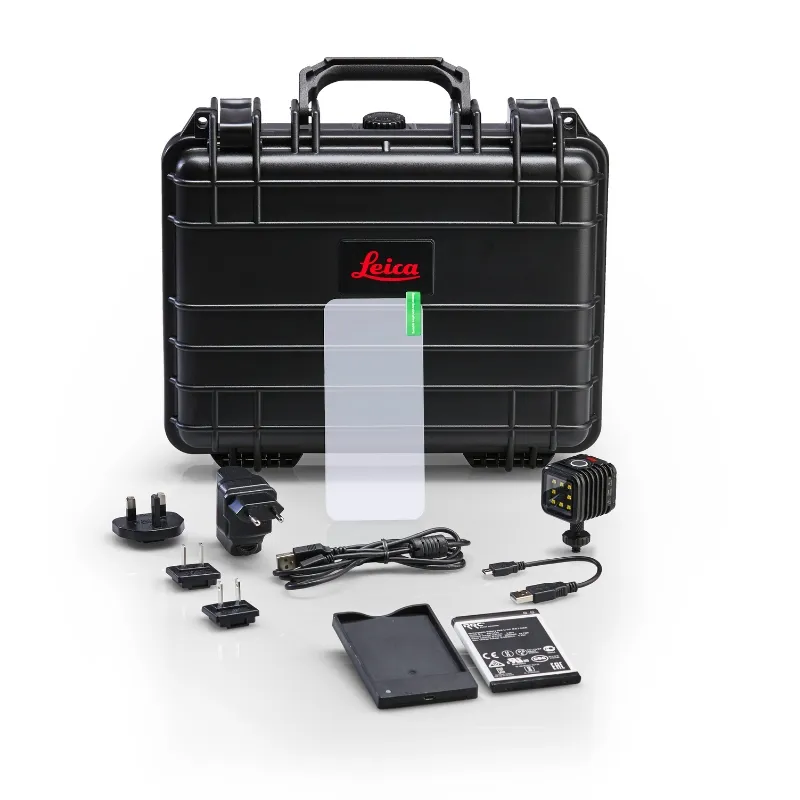

Leica BLK3D

Capture Measurements Instantly with High Accuracy

The BLK3D revolutionizes measurement-taking by allowing you to extract precise dimensions directly from any image captured with the device. This cutting-edge solution simplifies documentation, enabling professionals to record as-built conditions and track project progress efficiently.

A Smart and Intuitive Photogrammetry Tool

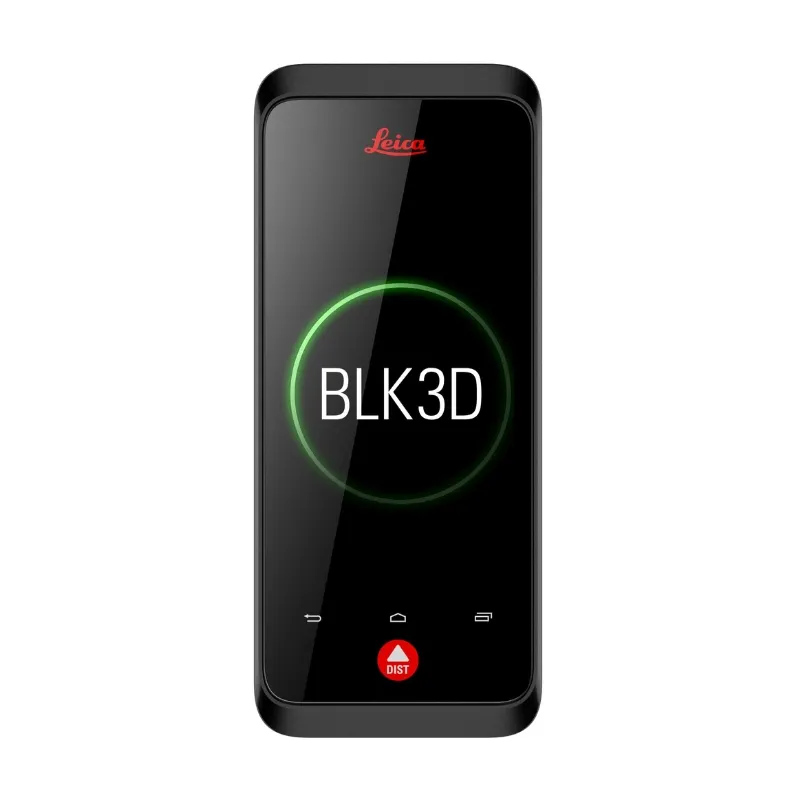

Designed for ease of use, the BLK3D combines advanced photogrammetry technology with a smartphone-like form factor. Equipped with intelligent edge detection algorithms, it enables accurate measurements within 2D images. The high-resolution touchscreen interface enhances usability, providing a seamless experience for professionals who demand precision.

Advanced Functionality for Various Applications

Built to support diverse workflows, the BLK3D empowers professionals to make faster, data-driven decisions. Whether it’s measuring inaccessible areas, creating detailed floor plans, estimating building installations, or documenting construction progress, this device streamlines tasks with efficiency. Its ability to generate measurable as-built documentation ensures reliability in architectural, engineering, and construction projects.

Seamless Data Storage, Access, and Sharing

With versatile storage and transfer options, the BLK3D ensures that your data is always accessible. Store images directly on the device or transfer them effortlessly using USB-C or WLAN for integration with your computer. Organize projects efficiently by tagging images with searchable keywords, allowing for quick retrieval. Share measured images in multiple formats to enhance collaboration and workflow efficiency.

SKU: Leica BLK3D Category:

Description

Leica BLK3D

THE POWER OF PHOTOGRAMMETRY

Harness the Power of Photogrammetry

Now seamlessly integrated into your RTC360 and BLK360 data, photogrammetry empowers you to capture precise, measurable image data. Enhance your workflow with high-accuracy measurements, improved documentation, and streamlined project execution.

Leica BLK3D

Execute Cyclone FIELD 360 directly on the BLK3D and gain full control over your scans with precision and efficiency.

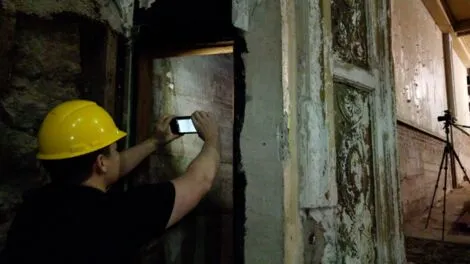

Capture Small and Inaccessible Spaces with Precision

Easily document and measure tight, confined, or hard-to-reach areas with advanced photogrammetry and scanning technology.

Eliminate Scan Shadows for Complete Data Capture

Accurately collect data in shadowed areas behind objects or beyond the scanner’s line of sight, ensuring comprehensive and precise documentation.

Capture data from concealed spaces, including the interiors of electrical panels, cabinets, and complex plumbing systems, ensuring thorough and accurate documentation.

Leave No Detail Behind

Save time, reduce costs, and minimize waste by capturing critical details on-site, ensuring nothing is overlooked on the first visit.

Plumbing

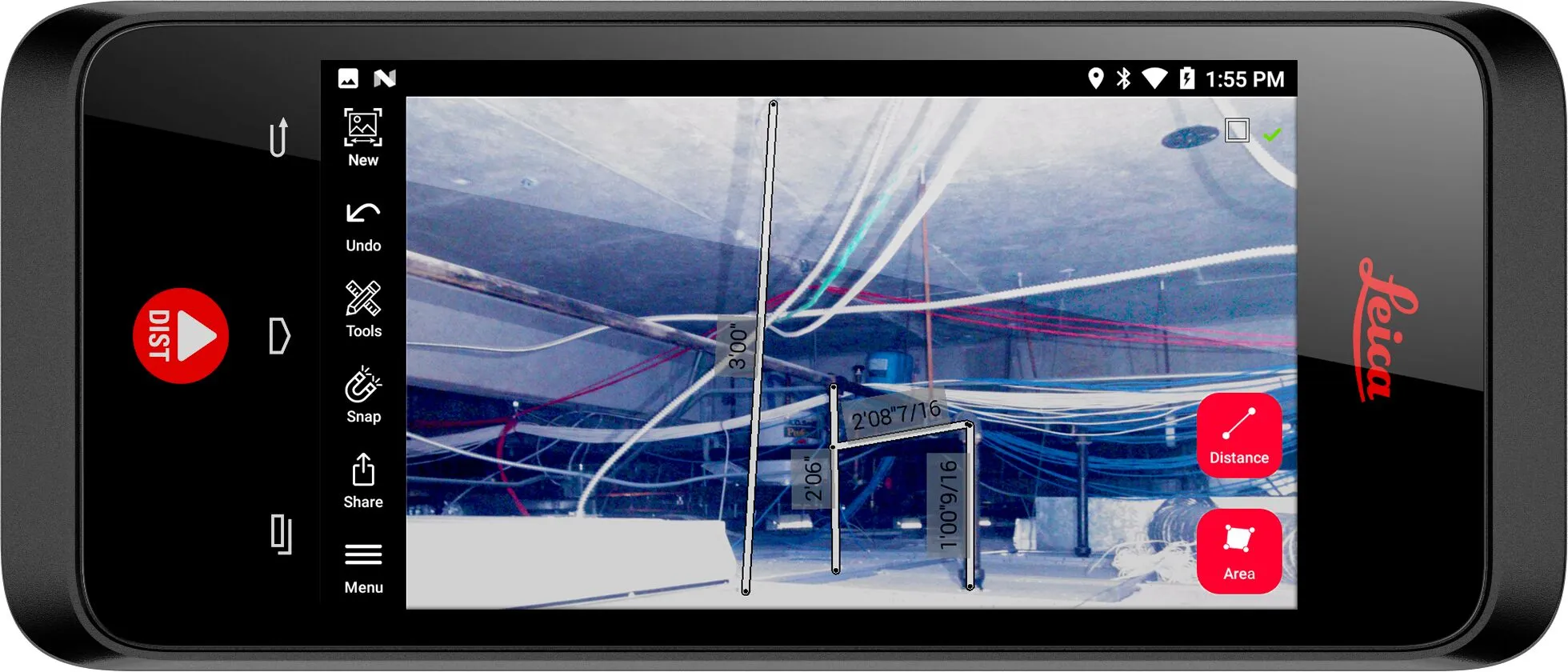

Document concealed plumbing infrastructure, even in areas hidden behind drop ceilings, ensuring accurate and comprehensive data capture.

Electrical

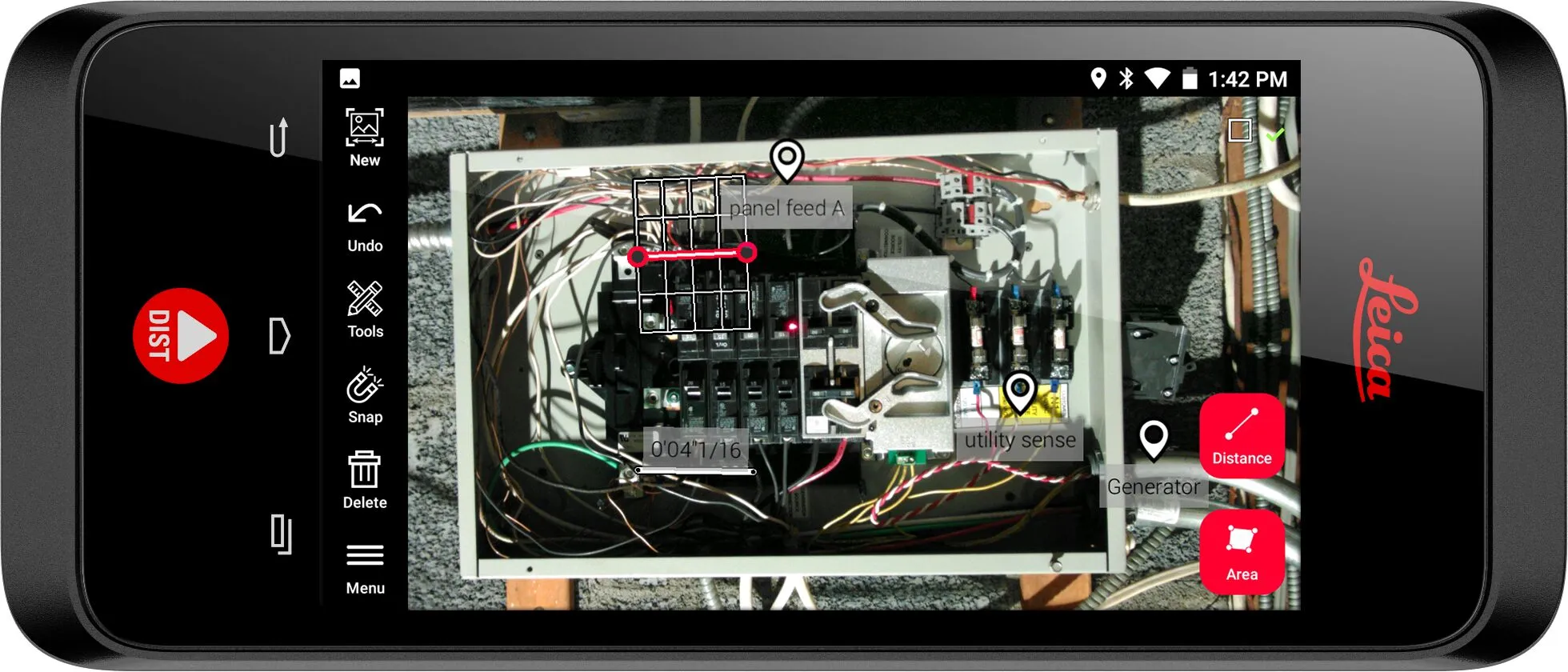

Obtain measurable data from inside electrical boxes, transfer switches, relays, and panels, enabling precise documentation for wire diagrams and future reference.

HVAC

Identify and document hidden decay in piping and electrical floor transitions, ensuring proactive maintenance and accurate system assessments.

Architectural Elements

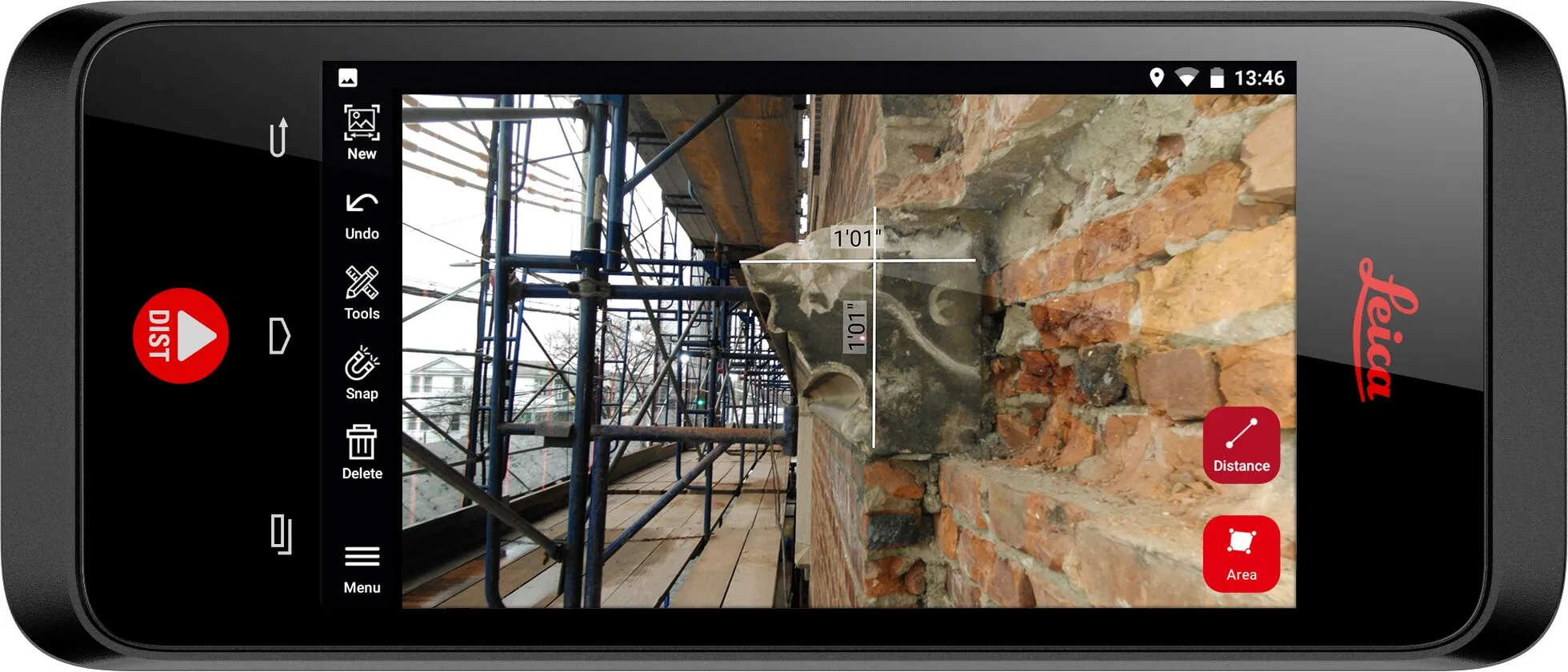

Capture detailed cross-sectional data for precise documentation of architectural features and intricate design elements.

Place annotations directly in your 3D images to leave important notes.

Embed measurable images seamlessly into your 3D point clouds for enhanced visualization, analysis, and accurate documentation.

Annotate directly within your 3D images, adding notes for enhanced collaboration, documentation, and streamlined project workflows.

Specifications

BLK3D Specifications
Dimensions (H x W x D) 180.6 x 77.6 x 27.1 mm (7.11 x 3.06 x 1.07 in)
Weight (with rechargeable battery) 480 g (17 oz)
Temperature Range Storage: -25 to 60 °C (-13 to 140 °F)
Operation: -10 to 50 °C (14 to 122 °F)
Charging: 0 to 40 °C (32 to 104 °F)
Tripod Adapter Supports 1/4-20 UNC screw adapters
Article No. 869073
Technology
Operating System Android 7.1.2 (Nougat)
Processor (with integrated GPU) Snapdragon 820E QuadCore (2.35 GHz)
RAM Memory 4 GB
Real-time Processor STM32F446
Screen 5.0” IPS, HD 720x1280 LCD capacitive multi-touch screen, chemically strengthened, brightness: 450 cd/m²

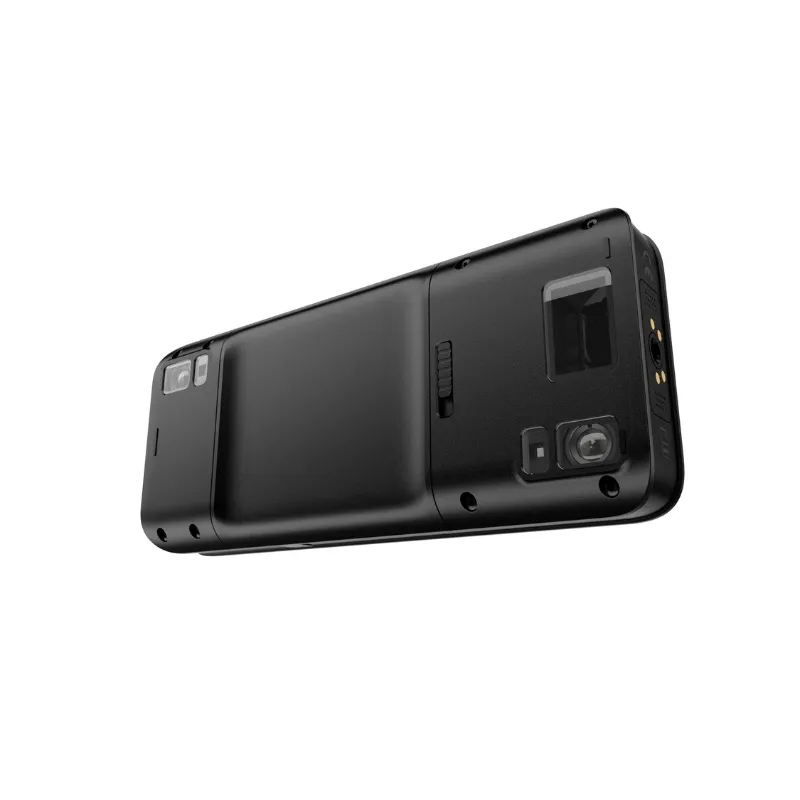

Stereo Camera Pixels: 2 x 10 MP (15.8 cm diagonal baseline), Field of view: 80°, Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1), Aperture: F3.0
EDM Camera Pixels: 2 MP, Field of view: 14°

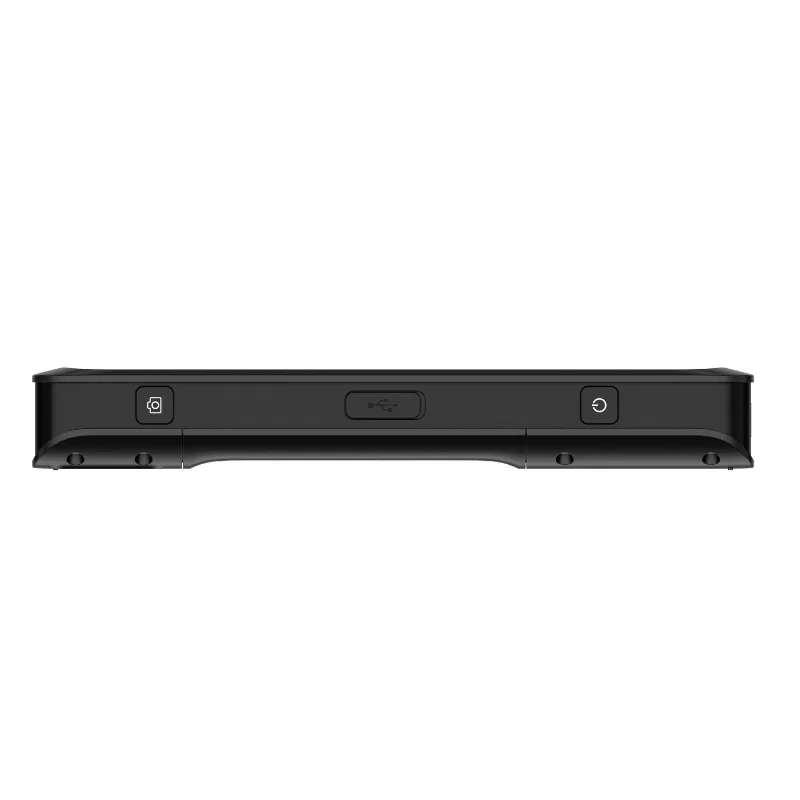

I/O USB Type-C 1.0 for data transfer and charging (water-resistant), integrated speaker and microphone
Keyboard Three physical buttons (Power, Laser/Photo capture, Photo capture), four touch buttons (Back, Home, Recents, Laser/Photo capture)
Additional Sensors Compass, 3D accelerometer, 3D gyroscope
Laser Class 2
Laser Type 655 nm, 0.95 mW
Storage
Internal Storage 64 GB (equals 14,000 single-shot or 5,000 multi-shot 3D images)
Communication
Bluetooth® Smart Bluetooth® v4.1 and v2.1
Radiated power: 1.78 mW (BLE)
Radiated power: 10.00 mW (BT classic)
Frequency: 2402-2480 MHz
Wireless LAN Standard: 802.11 b/g/n
Radiated power: 6.31 mW
Frequency: 2412-2472 to 2412-2462 MHz
GPS A-GPS and GLONASS
Power Management

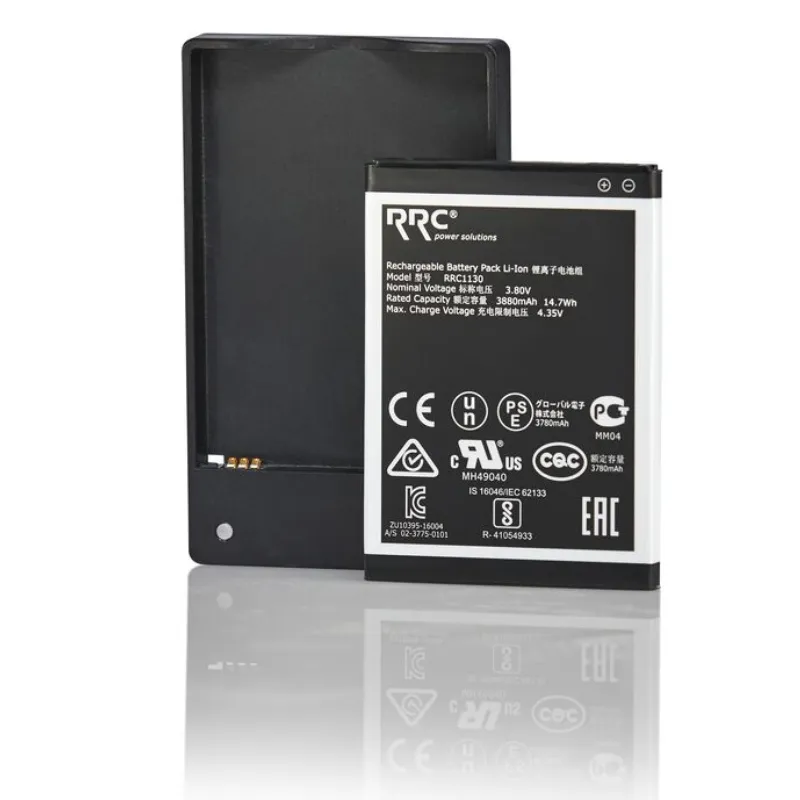

Battery Rechargeable battery pack Li-ion, (3.80 V, 3880 mAh, 14.7 Wh)
Power Management AC adapter (input: 100-240 V AC), External charger (input: 100-240 V AC) (optional)
Charge Time < 3.5 h (with AC adapter), < 5 h (with optional external charger)
Operating Time Typical capture: 4h / 220 multi-shot captures
Continuous capture: 2.5 h / 1000 single-shot captures
Laser measurements: 6.5 h / 9500 laser measurements
Auto power off after 3 h in sleep mode
Laser Distance Measurement
Accuracy (Favorable Conditions) ± 1.0 mm (0.04 in)
Accuracy (Unfavorable Conditions) ± 2.0 mm (0.08 in)
Range (Favorable Conditions) 250 m (820 ft)
Range (Unfavorable Conditions) 120 m (394 ft)
Smallest Unit Displayed 0.1 mm (1/32 in)
X-Range Power Technology™ Yes
Ø Laser Point at Distances 6 / 30 / 60 mm (10 / 50 / 100 m)
Tilt Measurement
Measuring Tolerance to Laser Beam ± 0.2°
Measuring Tolerance to Housing ± 0.2°
Range 360°
P2P Measurement with DST 360 (Optional)
Working Range Vertical Sensor -64° to > 90°
Accuracy Vertical Sensor Up To ± 0.1°
Working Range Horizontal Sensor 360°
Accuracy Horizontal Sensor Up To ± 0.1°
Tolerance P2P Function at Distances ± 2 mm / 2 m, ± 5 mm / 5 m, ± 10 mm / 10 m
Levelling Range ± 5°
Software Options Overview
BLK3D Mobile (Included) Reality Capture, Laser, Organiser, 3D Image export to PDF and JPG
Sketch & Document Option (Optional) Sketch Plan, P2P Measure, Smart Room, Plan export to PDF, JPG, DXF, and DWG (2D/3D/raw)
Autodesk BIM 360 Option (Optional) Work with Autodesk BIM 360 Docs projects
BLK3D Desktop Base (Optional) Organiser, Measure, Working with Plans
3D Model Option (Optional) 3D Modelling on 3D Images, including export to DXF and DWG (3D)
Publisher Option (Optional) Publish 3D Images to BLK3D Web
Autodesk BIM 360 Option (Optional) Work with Autodesk BIM 360 Docs projects
Minimum System Requirements Windows® 8.1, 10 with 64-bit; 6 GB RAM

1) Wi-Fi® off, Bluetooth® off, flash off, screen brightness 50%.

2) Applies to 100 % target reflectivity (white painted wall), low background illumination, 25 ºC.

3) Applies to 10 to 100 % target reflectivity, high background illumination, – 10 ºC to + 50 ºC.

4) Tolerances apply to ranges from 0.05 m to 10 m with a confidence level of 95%. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m, to 0.20 mm/m between 30 m to 100 m and to 0.30 mm/m for distances above 100 m.

5) After user calibration. Additional angle related deviation of ±0.0.1° per degree up to ±45° in each quadrant.

6) Valid Autodesk BIM 360 subscription required.

7) Tolerances apply to 2D measurements up to 3m in length (<20° depth).
