Tough and robust the Leica Piper 100 laser housing is made from cast aluminium and is completely water proof. It features a large LED display which shows the grade & level indication and battery status. It is ideal for sanitary and storm sewer construction, gravity flow pipes and any place where a single line and grade are required with only one laser beam. This pipe laser has a range of 200 metres and grade ranges of -10% to +25%. Standard battery life is 40 hours. The Leica Piper 100 does not include Alignmaster. If Alignmaster is required please select the Leica Piper 200 Laser.

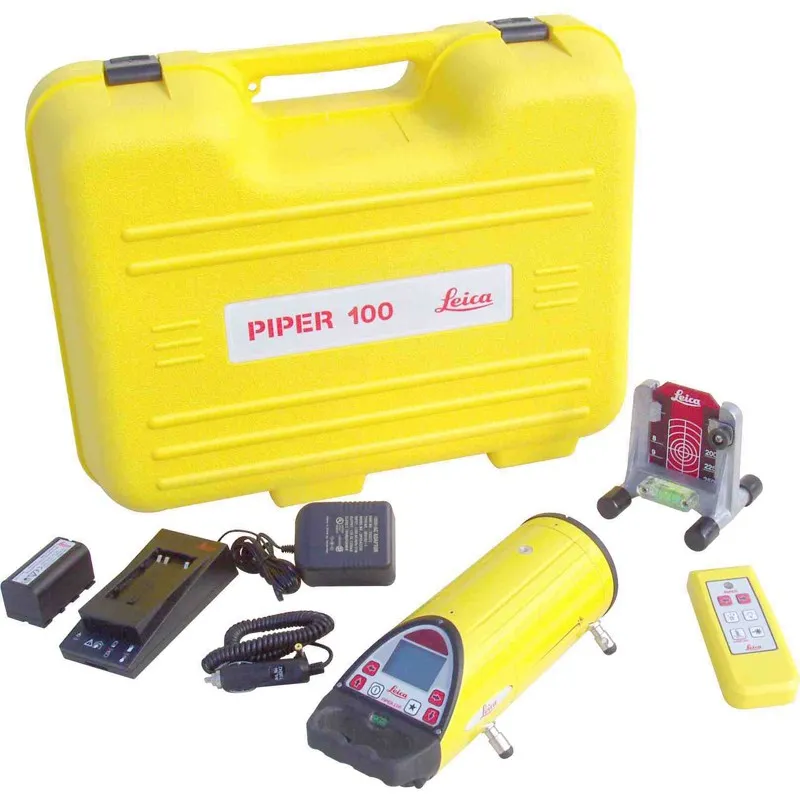

Supplied with:

  • Protective Carrying Case
  • User Manual

Technical Specification:

  • Red Laser Diode – 635 nm
  • 4.75 mW maximum Laser Output
  • 200m Working Range
  • -10 % to +25 % Grade Range
  • -15 % to +30 % Self-levelling Range
  • Line Movement: 6 m metres @ 30 metres
  • Battery type and life: Lithium-Ion, 40 hours
  • Operating Temp: -20° to +50° C
  • Weight: 2 kg
  • Seal – IPX8
  • Wireless remote control up to 150 metres
