PolyWorks® is an advanced industrial 3D metrology software for precision inspection, dimensional measurement, and reverse engineering. Designed for quality-critical environments, it supports 3D scanning, CAD-to-part comparison, and GD&T analysis, helping manufacturers achieve accurate, repeatable, and traceable inspection results across automotive, aerospace, and manufacturing workflows.
PolyWorks®
PolyWorks is a specialized software solution designed for advanced point cloud inspection and reverse engineering applications.
PolyWorks metrology software is a professional 3D inspection and reverse engineering solution designed for precision-driven manufacturing and quality control workflows. It supports casting, milling, molding, stamping, and complex industrial processes where dimensional accuracy, repeatability, and traceability are critical.
The PolyWorks software suite is available as a complete platform or as specialized modules for point cloud inspection and reverse engineering, allowing organizations to configure inspection workflows based on production and quality requirements.
Developed by InnovMetric Software Inc., PolyWorks is widely adopted in automotive, aerospace, manufacturing, and heavy industry for advanced dimensional analysis, quality validation, and inspection automation.
Modular Software Architecture for Industrial Inspection
PolyWorks provides a scalable and flexible software architecture that supports multi-device metrology environments. It integrates seamlessly with laser scanners, optical scanners, portable CMMs, and tracking systems, enabling consistent inspection processes across the entire product lifecycle.

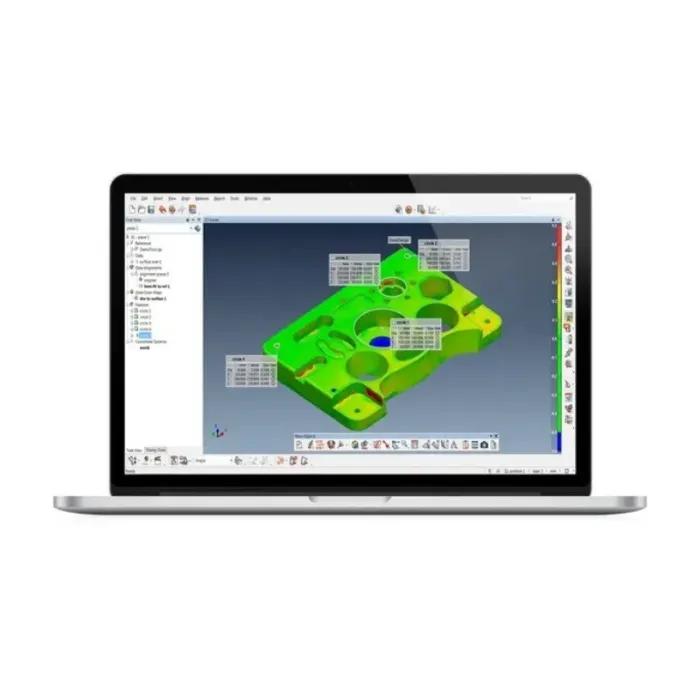

PolyWorks Inspector – Point Cloud Inspection
High-Density Point Cloud Analysis
Analyze dense point cloud data to detect deformations, deviations, and dimensional inconsistencies in digitized prototype parts and assemblies at early production stages.
Manufacturing Process Validation
Perform full inspections of first-assembled products to validate tooling accuracy and approve production workflows before mass manufacturing.
Production Cycle Monitoring
Automate inspection routines to measure tool wear, monitor production stability, and detect sudden quality degradation during manufacturing cycles.
Final Product Compliance Verification
Execute automated sample inspections to confirm that manufactured and assembled parts comply with required specifications and quality standards.
PolyWorks Modeler – Reverse Engineering
Polygonal Model Generation
Convert aligned point clouds into accurate polygonal models using tolerance-based adaptive meshing technology, even from incomplete or imperfect scan data.
Advanced Reverse Engineering Workflows
Reconstruct precise polygonal features and apply CAD operations directly to polygonal models for milling, rapid prototyping, inspection, CFD, FEA, and reverse engineering applications.
NURBS Surfacing & CAD Optimization
Intelligent Curve Network Creation
Use automatic feature-tracking tools to create structured curve networks with interactive extraction and precise control.
Controlled Surface Generation
Constrain surfacing operations to predefined curves for higher surface accuracy and predictable geometry control.
Surface Quality & Continuity Enhancement
Adjust NURBS surface rigidity to replicate sheet-metal behavior, producing smooth, ripple-free surfaces with improved continuity.
Optimized CAD Output
Reduce control points and surface patches to simplify CAD models, improve patch smoothness, and accelerate downstream design and manufacturing workflows.
Industrial Quality Control & Measurement Reliability
PolyWorks enables organizations to standardize inspection operations, improve inspection efficiency, reduce manual errors, and maintain consistent quality across complex production environments. It delivers the accuracy, scalability, and long-term reliability required for modern industrial metrology workflows.
