Wireless Multi-Functional Dynamic Tracking & Scanning System
- Modular & Flexible Configuration
- Compact, Agile Dynamic Tracking
- Lightweight, Wireless Operation
- Built-In Video Photogrammetry (VPG) Integration

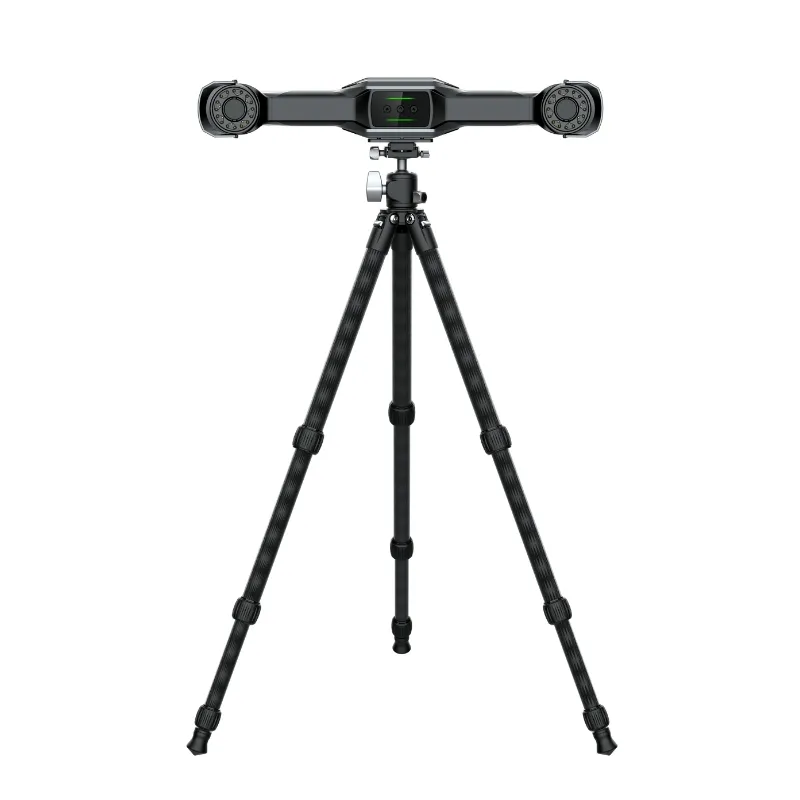

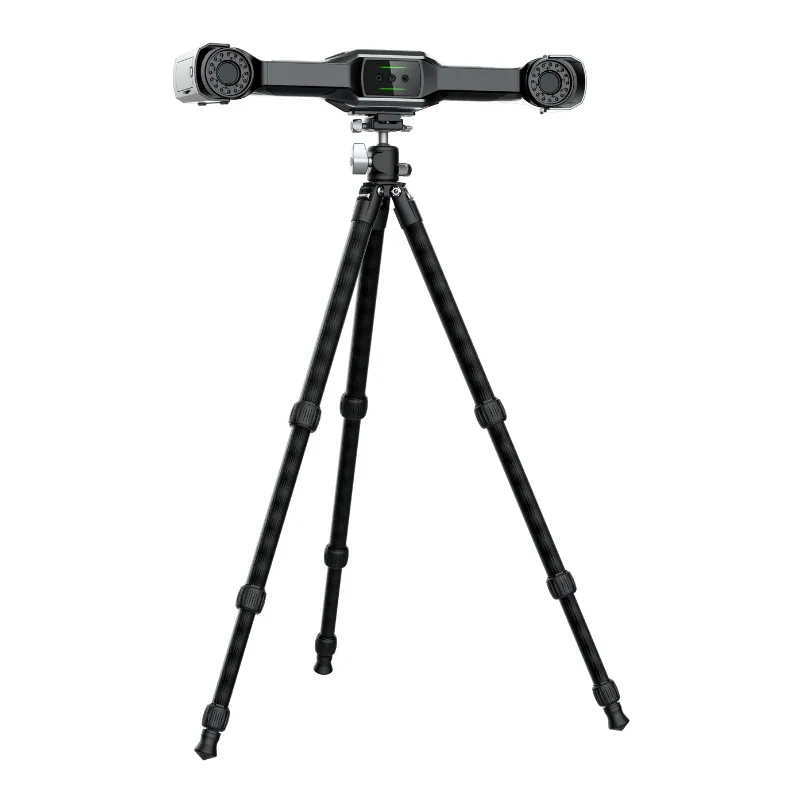

FreeScan Trak Nova
Description
Small in Form, Big on Performance.
From construction machinery and rail transit to civil aviation and energy, the FreeScan Trak Nova is engineered to meet the diverse demands of industries requiring precise, efficient large-scale measurements—delivering exceptional portability, productivity, and versatility.
All-In-One Scanning System
Detachable Handheld Scanner
Dynamic Tracking
Integrated Video Photogrammetry
Completely Wireless
Flexible & Separable System

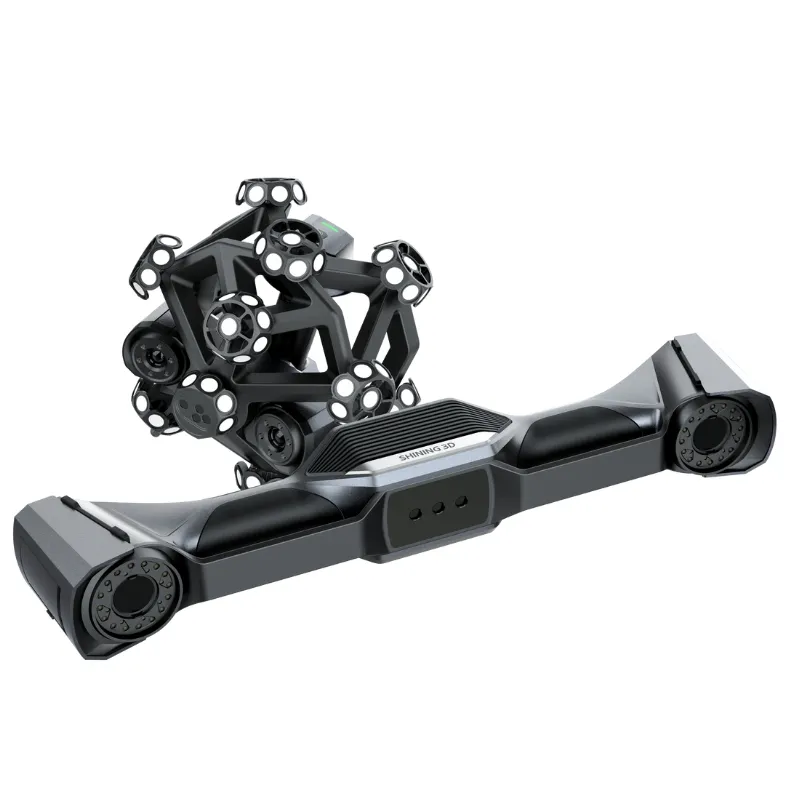

The FreeScan Trak Nova features a detachable handheld scanner, with the FreeScan UE Nova doubling as a handheld laser scanner offering the largest field of view (FOV) in its class—ensuring unmatched efficiency and versatility.
- Expansive 2.6 × 2.2 m Field of View for Large-Scale Coverage
- Ultra-Fast Scanning Speed
- Certified Accuracy with Guaranteed Performance
Video Photogrammetry (VPG)
The FreeScan Trak Nova utilizes SHINING 3D’s patented Video Photogrammetry (VPG) technology, eliminating the need for coded markers during measurement. By integrating advanced photogrammetry with a calibration rod, it enables real-time marker verification through video capture, ensuring stable volumetric accuracy and greatly simplifying setup for efficient scanning of large-scale objects.
Free to Scan, Built to Perform
Integrated Wireless Modules
Experience enhanced mobility when scanning large objects or working in confined spaces—free from the restrictions of cables or external hardware. Seamlessly integrated wireless technology enables real-time data transmission with high frame rates and stable performance.
Built-In Computing Modules
Equipped with powerful onboard computing, both the tracking scanner and wide-range scanner deliver fast, efficient processing for smooth and responsive scanning workflows.
Easy to Carry, Light to Move
All components are conveniently packed into a single portable case, featuring a lightweight carbon fiber frame that guarantees stability and dependable performance across various environments.
-
TE Nova Weight: 1.2 kg
-
UE Nova Weight: 1.6 kg
Keep Going with Swappable Batteries
For ultimate convenience, the FreeScan Trak Nova is equipped with detachable batteries, allowing extended scanning sessions without downtime. Effortlessly replace batteries to maintain continuous operation, even during lengthy projects or in remote environments.
Our Support Coverage
At SITML, we go beyond hardware by offering tailored solutions, nationwide support, and a dedication to your success. From user-friendly tools to precision-calibrated accuracy, we’re committed to elevating your workflow.
What You Can Achieve with Our Scanners
Integrate our advanced scanners into your workflow to boost efficiency, streamline processes, and achieve outstanding, high-precision results across every project.
FreeScan Software
Intuitive & Powerful
Multi-Scan Modes Data Fusion
The system effortlessly integrates wide-range laser scanning for capturing overall structures with dynamic tracking for precise local features, delivering a comprehensive dataset that combines broad coverage with intricate detail in a single, cohesive scan.
Intelligent Resolution
Automatically adapts mesh resolution to the object’s curvature, enhancing feature clarity and delivering more precise, detailed scans.
AI Feature Recognition
Intelligent boundary detection allows rapid and precise scanning of round and square holes, ensuring highly accurate and reliable hole measurement data.
Inspection Module
Equipped with a PTB-certified inspection module, the system ensures reliable, high-precision full-size inspection for consistent, professional-grade results.
Compatible Software
Polyworks
Geomagic Control X
Geomagic Design X
Technical Data
| High-speed scan |
Included (50 laser lines) |
| Deep pockets scan |
Included (1 laser line) |
| Volumetric accuracy with VPG |
0.046 + 0.012 mm/m (extension volume) |
| VPG |
Included (no coded markers required) |
| Depth of field |
TE Nova 380 mm (170 ~ 550 mm); UE Nova 2700 mm (800 ~ 3500 mm) |
| Certifications |
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Detailed scan |
Included (7 parallel laser lines) |
| Volumetric accuracy |
0.062 mm (12 m³) |
| Flexible FOV |
Up to 2600 x 2200 mm |
| Connection |
Wireless & Wired mode (Fiber optic) |
| Net weight |
TE Nova 1.2 kg; UE Nova 1.6 kg |
| Acceptance test |
VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
