Wireless 3D Dynamic Tracking & Scanning System with Extended Range
The FreeScan Trak ProW boasts an extended tracking range and significantly enlarged scanning volume, making it the perfect choice for large-scale 3D measurement projects. Its wireless design and power bank support deliver unmatched mobility and flexibility on the job.

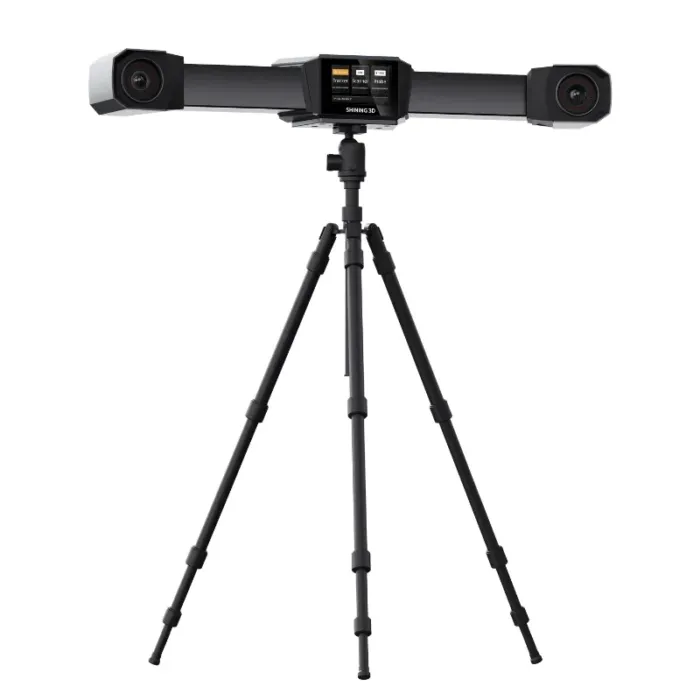

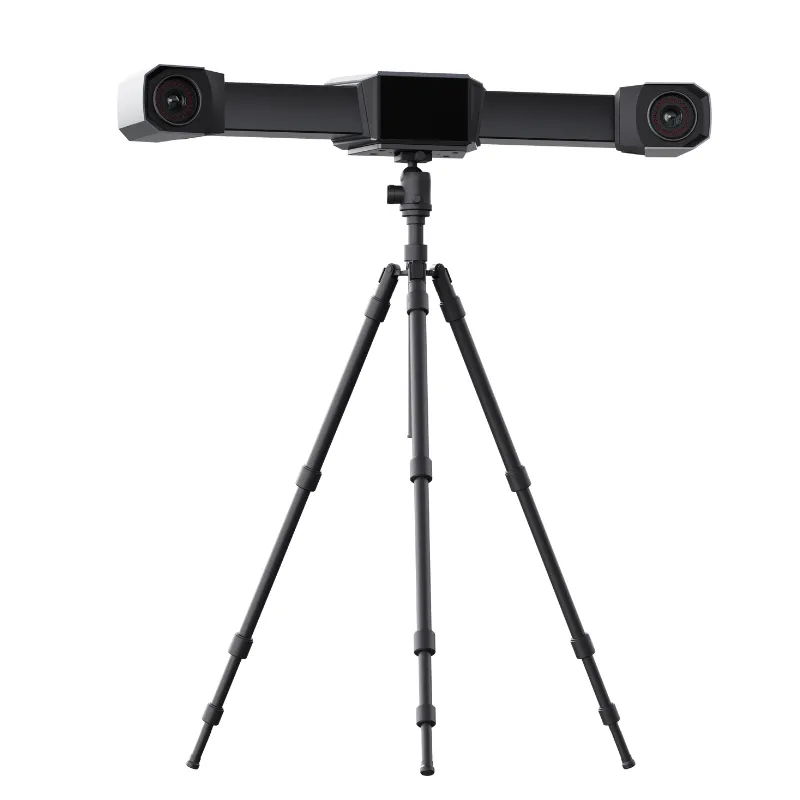

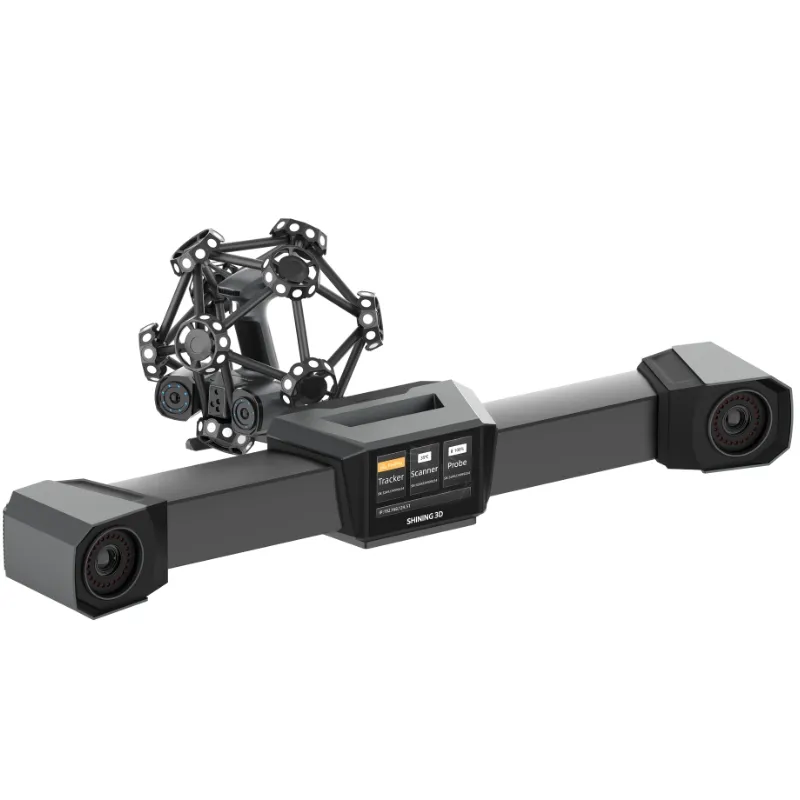

The FreeTrak W automatically follows the TE25W scanner through its integrated tracking targets, removing the need for manual marker placement on the object being scanned.
The FreeScan Trak ProW delivers high-speed, seamless scanning performance with a scanning rate of up to 5,500,000 points per second.
The FreeScan Trak ProW provides metrology-level scanning precision with outstanding accuracy.
The TE25W offers three versatile scanning modes: High-Speed Scanning, Detailed Scanning, and Deep Pocket Scanning.
The FreeScan Trak ProW boasts an innovative design with an extended 8.6-meter tracking range, dramatically increasing the single-station tracking volume to 206.7 m³. This significantly minimizes the need for leapfrogging* during large-scale object scanning.
*(1) Leapfrog is a method used to extend the measuring device’s working range by relocating it. The process involves capturing reference geometries (artifacts) from one position, then repositioning the device and remeasuring the same references. These shared reference points connect the new position to the original coordinate system, ensuring all measurements remain consistent within the same reference frame.
The FreeTrak W provides real-time recognition and positioning of the TE25W scanner without the need for reference markers, boosting scanning efficiency and optimizing workflow. It ensures fast data capture with a scanning speed of up to 5,500,000 points per second.
The FreeScan Trak ProW incorporates SHINING 3D’s patented video-based photogrammetry, removing the need for coded markers. By combining photogrammetry with a calibration rod, it enables real-time marker verification via video capture, ensuring stable volumetric accuracy and simplifying setup for efficient large-scale object scanning.
At SITML, we offer more than just devices — we deliver tailored solutions, nationwide support, and a dedication to your success. With user-friendly tools and precision-calibrated accuracy, we’re here to elevate your workflow.
FreeProbe (Optional)
When targeted data is required, the Probe allows you to capture geometric features instantly—perfect for quick inspections or measurements without the need to generate full mesh data.
What You Can Achieve with Our Scanners
Discover how incorporating our scanners into your workflow can boost productivity and deliver exceptional results with greater speed and precision.
Intuitive & Powerful
Users can evaluate marker quality in real time during video photogrammetry and monitor data completeness throughout the scanning process.
Automatically optimizes mesh resolution according to the object’s curvature, delivering sharper details and enhanced feature clarity.
Intelligent boundary detection allows for rapid and precise scanning of both round and square holes, ensuring highly accurate hole measurement data.
Features a built-in inspection module certified by PTB, ensuring dependable and high-quality full-scale inspection results.
| Volumetric accuracy (based on measuring range) |
15.6 m³: 0.046 mm; 45 m³: 0.063 mm; 76 m³: 0.088 mm; 128 m³: 0.127 mm |
| High-speed scan |
Included (50 laser lines) |
| Deep pockets scan |
Included (1 laser line) |
| Connection |
Wireless & Wired mode (fiber optic) |
| Acceptance test |
VDl/VDE 2634 Part3 (certificated in |
| Volumetric accuracy with VPG |
0.044 + 0.012 mm/m (extension volume) |
| Detailed scan |
Included (7 parallel laser lines) |
| Weight |
FreeTrak W: 8.2 kg; TE25W: 1.47 kg |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
