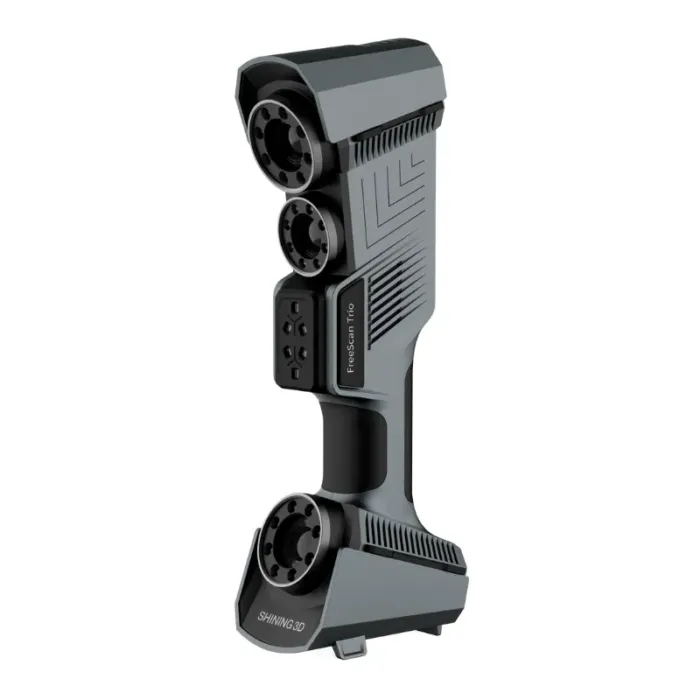

FreeScan Trio: Marker-Free Handheld Laser 3D Scanner

Achieves precision accuracy up to 0.02 mm with markers

● Captures data at speeds up to 3,010,000 points per second

● Equipped with three industrial-grade 5-megapixel cameras

● Offers four versatile scanning modes with built-in photogrammetry

● Enables marker-free scanning with innovative 98-laser-line technology

SKU: FreeScan TRIO Category:

Description

Innovation Meets Every Inspection
FreeScan Trio is the world’s first handheld 3D scanner with marker-free scanning capabilities, equipped with exclusive innovative technologies designed to handle a wide array of high-precision inspection tasks across various industries.

Speed and Efficiency Redefined
FreeScan Trio sets a new benchmark for scanning performance with 98 laser lines that enable true marker-free 3D scanning. Delivering an impressive capture rate of up to 3,010,000 points per second, it minimizes preparation time and maximizes operational efficiency.

The Power of Three 5MP Cameras
Equipped with three high-performance 5MP industrial-grade cameras, the FreeScan Trio captures intricate details with exceptional clarity, delivering superior-quality 3D data for precise and reliable results.

Certified and Guaranteed Results
In marker-based scan modes, the FreeScan Trio ensures consistently high-precision results, delivering measurement accuracy of up to 0.02 mm for reliable and certified 3D scanning performance.

Quick On-Site Inspection
Streamline workflows and accelerate quality control processes with fast, efficient solutions tailored for a wide range of on-site inspection tasks.

Smart Self-Positioning Technology
Marker-Free Scanning Mode
The FreeScan Trio features cutting-edge smart self-positioning technology, simplifying your scanning workflow. Utilizing 98 laser lines, it delivers ultra-fast scanning speeds of up to 3,010,000 points per second—completely marker-free.

Triple 5MP Industrial-Grade Cameras
Equipped with three high-resolution 5MP industrial cameras, the FreeScan Trio captures intricate details and delivers superior-quality 3D data with remarkable accuracy.

Precision High-Detail Scanning
FreeScan Trio ensures outstanding high-detail capture, delivering accurate and intricate 3D data acquisition whether using markers or operating in marker-free mode.

Deep Hole Scanning Mode
FreeScan Trio utilizes both 26-laser and single-laser line modes to effectively capture deep holes, narrow pockets, and thin fin walls—enabled by optimized camera angles and advanced scanning technology.

Video Photogrammetry (VPG) Technology
Powered by SHINING 3D’s patented video photogrammetry (VPG), FreeScan Trio removes the need for coded markers, ensuring stable volumetric accuracy and simplifying setup for seamless large-scale object scanning.

Comprehensive Support Coverage
At SITML, we go beyond hardware by offering tailored solutions, nationwide support, and a dedication to your success. From user-friendly tools to precision-calibrated accuracy, we’re committed to elevating your workflow.

What You Can Achieve with Our Scanners
Unlock Enhanced Efficiency Integrate our scanners into your workflow to boost productivity and achieve outstanding results with precision, speed, and seamless performance.

High-Speed, Accurate Scanning for Streamlined Workflows with exceptional scanning speed, smooth operation, and high precision, the FreeScan Trio minimizes iteration cycles, making it the perfect solution for scanning vehicle bodies, analyzing surface deviations, and verifying the positional accuracy of sheet metal holes.

Combining rapid scanning, seamless performance, and precision, the FreeScan Trio boosts efficiency without compromising accuracy. Its integrated photogrammetry system enhances volumetric accuracy, making it ideal for scanning large aerospace components such as aircraft fuselages, plane engines, and other sizable parts.

Equipped with a metrology-grade camera, built-in photogrammetry, and excellent portability, the FreeScan Trio delivers precise data capture in both indoor and outdoor environments. It excels in scanning large-scale objects like water turbines and petroleum drill bits, enabling accurate deformation and damage analysis.

Featuring three laser line modes, outstanding portability, and metrology-grade precision, the FreeScan Trio enables efficient and accurate scanning in any environment. It’s perfectly suited for capturing data on hull components, rail transit tracks, and supports applications in inspection and reverse engineering.

FreeScan Software

Intuitive & Powerful

Adjustable Resolution on Demand

Easily modify the scanning resolution as needed—without restarting your project—offering flexibility and efficiency throughout your workflow.

Live Mesh Data Visualization

Our optimized software delivers real-time mesh data visualization, improving visual precision and reducing the need for time-consuming meshing adjustments later.

Data Quality Visualization

Enables instant visualization of collected data quality directly within the software interface.

Customized Scanning Template

Streamline your workflow and maintain measurement consistency with tailored scanning settings—eliminating the need for manual parameter setup.

Compatible Software

Technical Data

High Speed Scan

26 laser lines

Deep Hole Scan

26 / single laser lines

Large Parts

Photogrammetry mode, no coded markers required

Volumetric Accuracy

0.02 + 0.015 mm/m (with photogrammetry)

Max. FOV

650 x 580 mm

Certifications

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX

Detailed Scan 7 parallel laser lines
No Markers Scan 98 laser lines
Accuracy 0.02 mm
Scan Speed Up to 3,010,000 points/s
Point Distance 0.01 ~ 3 mm
Accuracy Certification VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
