FreeScan UE PRO 2

Contact Details

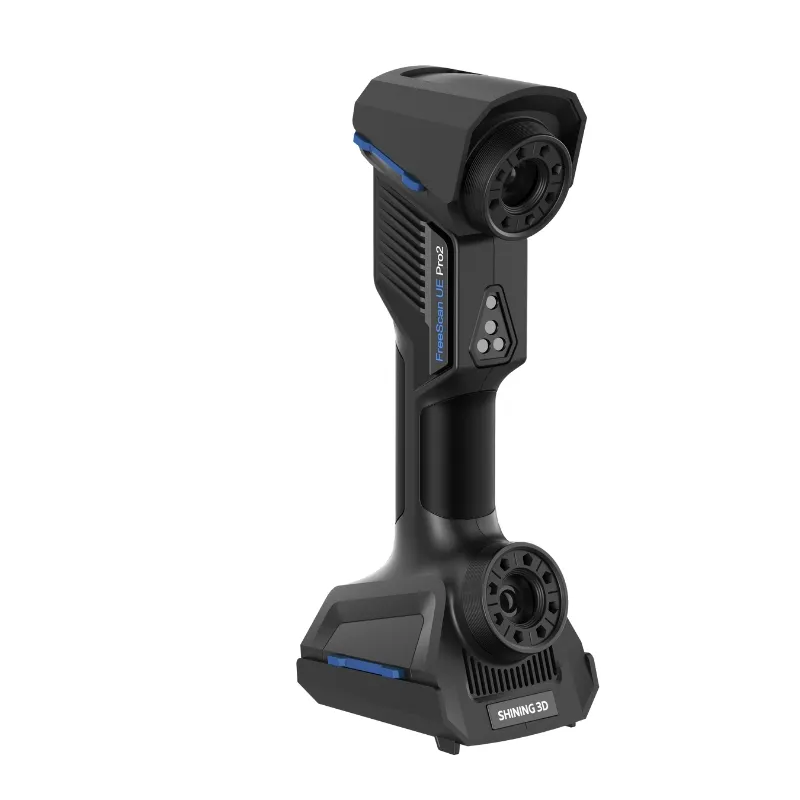

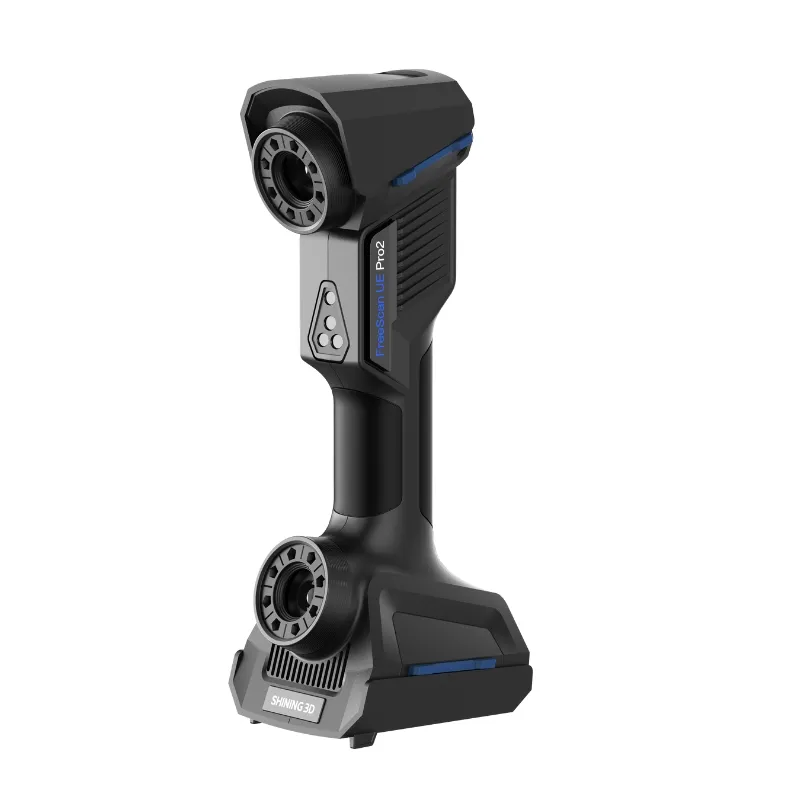

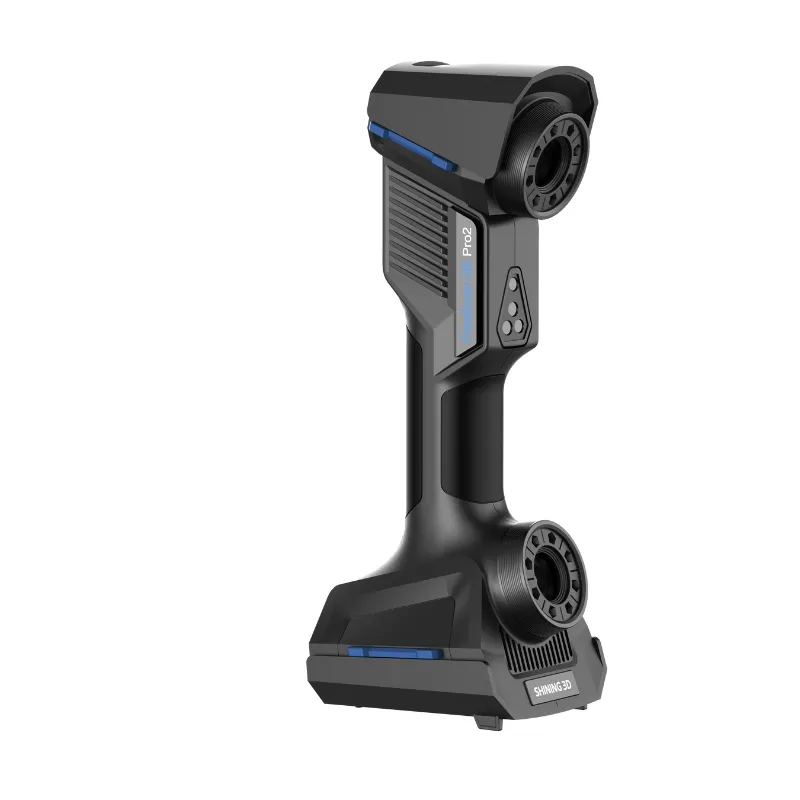

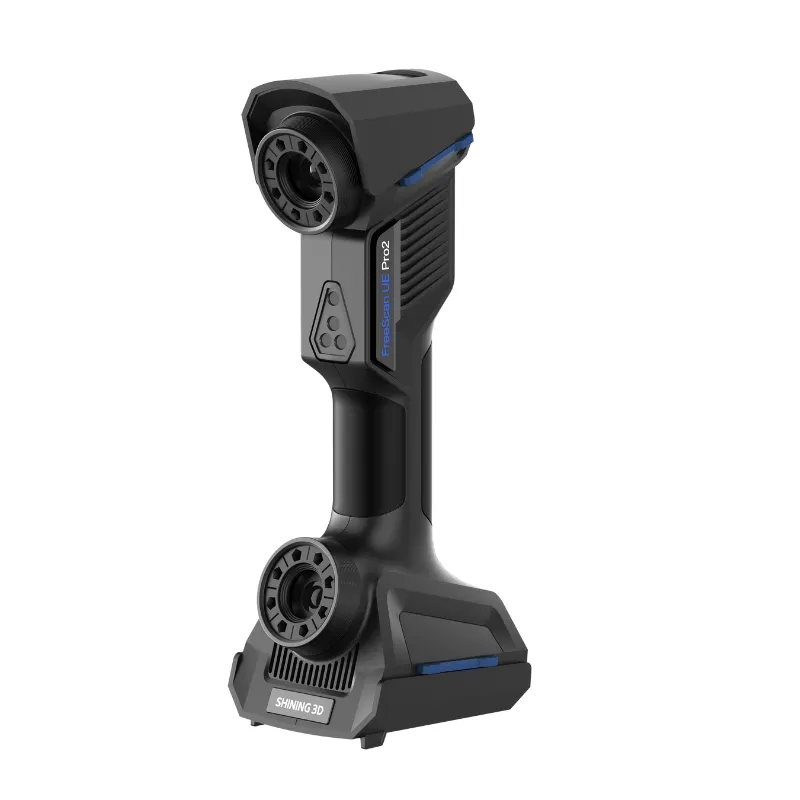

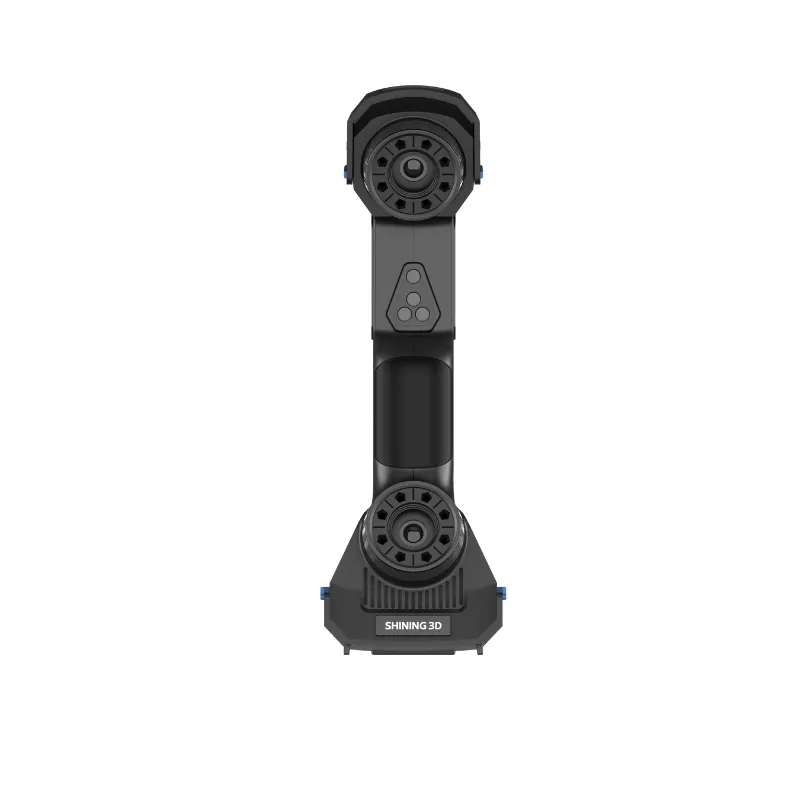

Wireless Multifunctional Laser Handheld 3D Scanner

  • Wireless handheld design for maximum mobility and convenience

  • Ultra-fast scanning speed of up to 3,460,000 points per second

  • Integrated Video Photogrammetry (VPG) for enhanced accuracy without markers

  • Ideal for quick and efficient on-site inspections

SKU: FreeScan UE PRO 2 Category:

Description

Inspect on the Move

Ideal for inspections and a wide range of industrial applications, the FreeScan UE Pro2 sets a new benchmark in the portable 3D metrology field, delivering unmatched precision, versatility, and performance.

Wireless and Portable

The FreeScan UE Pro2 features an integrated wireless module for seamless, cable-free data transmission. Weighing only 950g, it’s perfectly suited for on-site fieldwork and challenging environments, enabling easy and efficient 3D data capture anytime, anywhere.

Ultra-Fast Scan Speed

With an impressive scan speed of up to 3,460,000 points per second, the FreeScan UE Pro2 delivers twice the scanning efficiency of its predecessor.

Video Photogrammetry (VPG)

The FreeScan UE Pro2 is equipped with SHINING 3D’s patented Video Photogrammetry (VPG) technology, removing the need for coded markers and streamlining the scanning workflow.

Quick On-Site Inspection

The FreeScan UE Pro2 comes with an integrated inspection module that ensures strict quality control, simplifies operational workflows, and enhances the speed and efficiency of on-site quality inspections.

Double the Speed, Double the Productivity

  • Ultra-Fast Scanning Efficiency
    Achieves scan speeds of up to 3,460,000 points/s, ensuring smooth operation and significantly improving productivity in inspection workflows.
  • Embedded Computing Module
    Boosts data acquisition and processing efficiency, reducing total scanning time and lightening the load on connected computers.
  • 50 Laser Lines for Full Coverage
    Delivers faster, more comprehensive scanning performance, even on complex surfaces.
  • High Frame Rate up to 180fps
    Enables seamless and rapid data capture with enhanced frame rate, ensuring stable and efficient scanning results.

Video Photogrammetry (VPG)

FreeScan UE Pro2 integrates SHINING 3D’s patented video photogrammetry technology, eliminating the need for coded markers. This enhances volumetric accuracy and streamlines the scanning setup, ensuring high-efficiency data capture for large-scale objects.

Certified and Guaranteed Results

FreeScan UE Pro2 delivers stable and reliable global accuracy with volumetric accuracy up to 0.02 mm + 0.015 mm/m using photogrammetry. SHINING 3D’s Accuracy Laboratory, accredited by CNAS under ISO 17025 standards, ensures precise optical metrology calibration based on VDI/VDE 2634 guidelines, guaranteeing traceable and dependable measurement results.

Scan Indoors and Outdoors

The FreeScan UE Pro2 performs exceptionally well in both indoor and outdoor environments, offering versatility and reliability across diverse work settings.

3 Functions for Versatile Applications

  • High-speed scanning: Utilizes 50 laser lines for rapid data acquisition
  • Detail scanning: Equipped with 7 parallel laser lines for capturing fine details
  • Deep hole scanning: Features 1 laser line optimized for scanning deep holes and narrow areas

Our Support Coverage

At SITML, we offer more than just devices — we deliver tailored solutions, nationwide support, and a dedication to your success. With user-friendly tools and precision-calibrated accuracy, we’re here to elevate your workflow.

What You Can Achieve with Our Scanners
Discover how incorporating our scanners into your workflow can boost productivity and deliver exceptional results with greater speed and precision.

With 50 laser lines, the FreeScan UE Pro2 captures flat surfaces and complex details at ultra-fast scanning speeds, making it ideal for surface deformation analysis. Combining metrology-grade accuracy with high-speed performance, it ensures precise detection of positional accuracy in sheet metal holes and other components. Its wireless functionality enhances usability, delivering efficient and accurate quality control in manufacturing environments.

FreeScan UE Pro2’s wireless capability enables unrestricted mobility around large equipment and infrastructure, eliminating the limitations of cable connections. Paired with SHINING 3D’s patented video photogrammetry (VPG) technology, it ensures dependable accuracy, making it an ideal solution for inspecting turbines, pipelines, and other critical components.

FreeScan UE Pro2 features outstanding material adaptability, enabling stable and accurate scanning of dark or reflective surfaces in both indoor and outdoor settings. Its blend of speed, flexibility, and surface adaptability makes it an ideal solution for detailed inspection and maintenance of large-scale equipment and vehicles.

FreeScan Software

Intuitive & Powerful

Real-Time Display of Mesh Data

The streamlined software displays mesh data in real time during scanning, improving visual feedback and reducing the need for additional meshing steps, ultimately saving time and enhancing workflow efficiency.

Customized Scanning Template

Save time and maintain consistency by creating custom scanning templates, eliminating the need for manual parameter adjustments for each project.

Data Quality Visualization

Users can monitor scanning distance via laser line color or the LED indicator, while the real-time mesh indicator provides instant feedback on data quality during the scanning process.

Flexible Resolution

EXScan allows users to adjust resolution settings at any point during the workflow, without restarting the project, offering greater flexibility and efficiency.

Compatible Software

Technical Data

High-speed Scanning 50 laser lines
Deep Pockets 1 single line
Volumetric Accuracy (Photogrammetry) 0.02 mm + 0.015 mm/m
Scan Speed 3,460,000 points/s
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX
Detailed Scan 7 parallel laser lines
Accuracy 0.02 mm
Max. FOV 600 x 550 mm
Point Distance 0.01 ~ 10 mm
Accuracy Certification VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)



Download Brochure

Brand

Shining 3D

Shining 3D | Global Innovator in 3D Scanning and Digital Solutions

About Shining 3D

Shining 3D is a pioneer in 3D scanning and digital manufacturing solutions, founded in 2004 and headquartered in Hangzhou, China. Over nearly two decades, the brand has grown into a worldwide leader, serving industries from manufacturing and aerospace to healthcare and education. Known for accuracy and innovation, the company makes advanced 3D scanning technology accessible to professionals and organizations across the globe.

Innovation and Leadership

The company integrates hardware and software to create complete digital ecosystems that cover every step of the 3D workflow. From inspection and reverse engineering to design and prototyping, its solutions offer unmatched flexibility. With global expertise and a strong commitment to R&D, the brand has become a trusted technology partner for businesses pursuing reliable 3D scanning and printing systems.

In markets such as the Kingdom of Saudi Arabia, this technology supports industry modernization, product development, and smart manufacturing. Its scanners play a crucial role in helping organizations adopt Industry 4.0 practices.

Core Product Categories

Handheld 3D Scanners

Portable and flexible, the EinScan series delivers professional-grade scanning for design, heritage preservation, manufacturing, and education.

Desktop 3D Scanners

Compact desktop systems such as the EinScan-SP and EinScan-SE provide high-precision results for small to medium-sized objects, ideal for research, design, and teaching.

Industrial 3D Scanners

The FreeScan series offers metrology-grade accuracy tailored for demanding sectors including automotive, aerospace, and industrial manufacturing.

Dental and Healthcare 3D Scanners

Specialized solutions like the AutoScan series improve digital workflows in dentistry and healthcare, enhancing both precision and patient outcomes.

Future-Ready Technology

By combining 3D scanning, design, and additive manufacturing, the brand delivers streamlined processes that reduce costs and accelerate innovation. Its forward-looking approach ensures sustainable growth and smarter production practices.

Recognition and Achievements

With international recognition and numerous industry awards, the company has established itself as a global leader in 3D digitization. A continuous focus on research and product development keeps its technologies at the cutting edge of digital manufacturing.

Summary

Shining 3D offers handheld, desktop, industrial, and healthcare scanners that empower industries with precise, innovative, and accessible 3D solutions.

Official Website: www.shining3d.com

Shining 3D is a global leader in 3D scanning solutions. Its portfolio includes handheld, desktop, industrial, and dental scanners designed for precision, innovation, and smarter workflows.
