Leica Disto X3 Laser Distance Meter

Rugged design for tough conditions

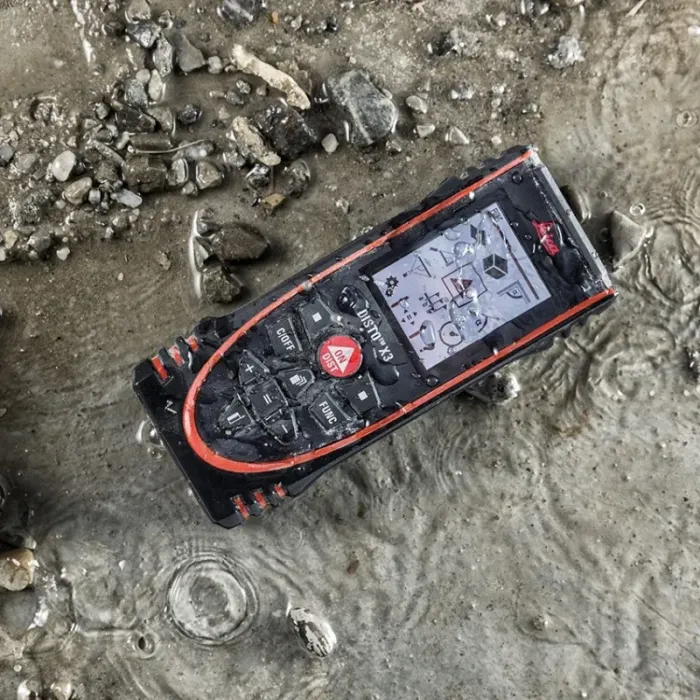

Construction Site Proof
The Leica DISTO™ X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.

Smart Room
New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app allow you to quickly create scaled floor plans on your smartphone or tablet.

Point to Point Measurement
The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.

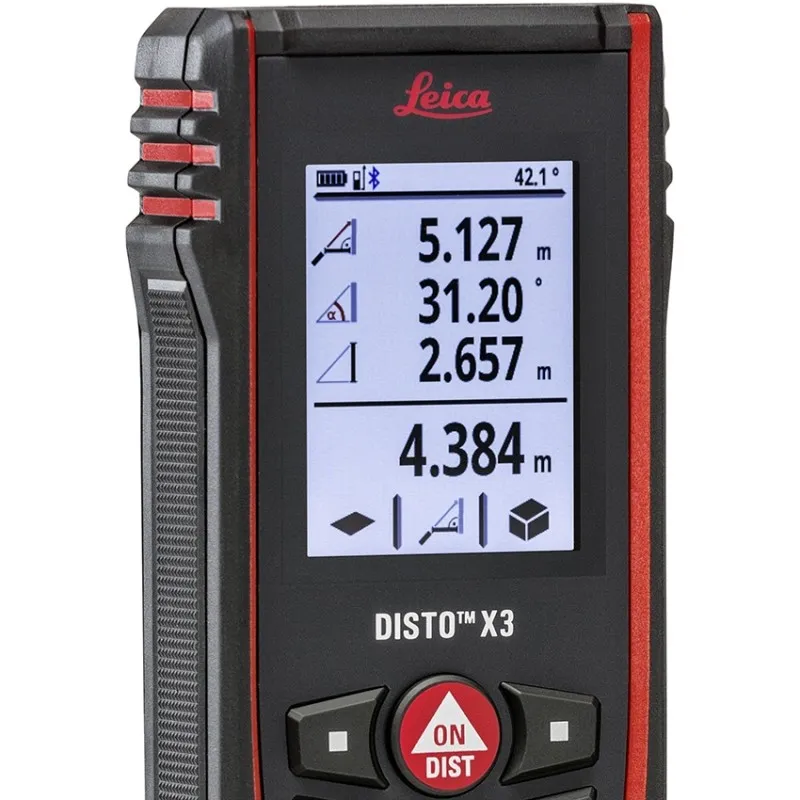

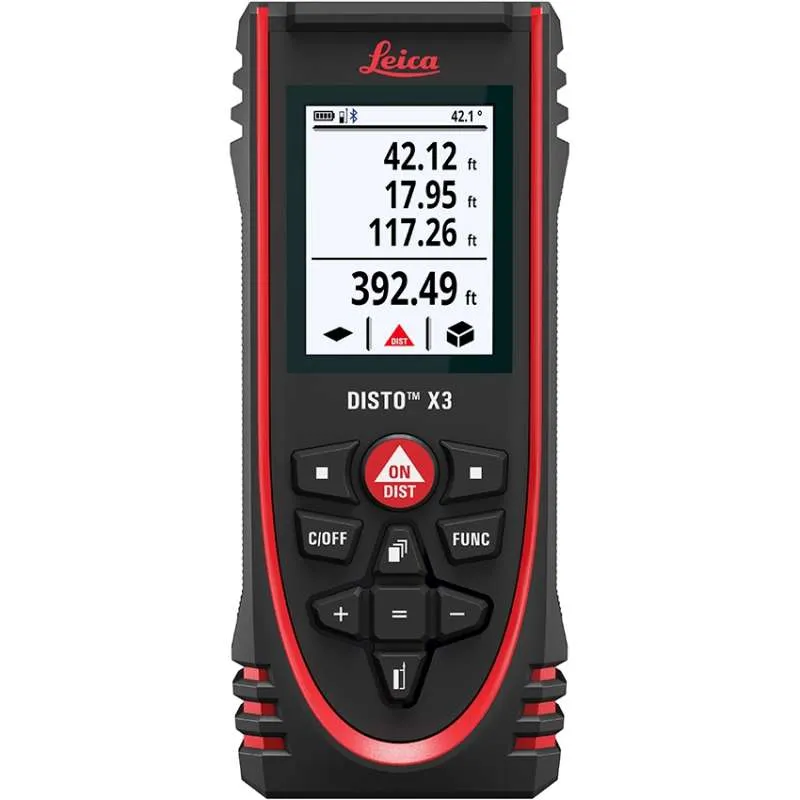

Intuitive
Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.

Product includes

  • Leica DISTO™ X3
  • Handloop
  • Pouch
  • 2xAA batteries
  • Calibration Certificate Silver
  • Quickstart

Document & Visualise
The Leica DISTO™ Plan app allows you to document and visualise your measurements. The Smart Room function makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise room measurements.

SKU: 1501110 Categories: ,

Description

Technical Specifications Leica DISTO X3 Leica DISTO X4
Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150m 0.05 up to 150m
Measuring units m, ft, in m, ft, in
X-Range Power Technology Yes Yes
Tilt sensor Yes Yes
Tilt sensor accuracy to the housing ± 0.2° ± 0.2°
Smart Base measuring range: Horizontal 360° for use with Leica DST 360 360° for use with Leica DST 360

Smart Base measuring range: Vertical

-64° to > 90° for use with Leica DST 360 -64° to > 90° for use with Leica DST 360
Typ. tolerance of the P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360 5° for use with Leica DST 360
Pointfinder with zoom 4x
Memory of last measurement 20 20
Free software for Windows Yes Yes
Free App for iOS and Android Yes Yes
Smart Room function support Yes Yes
General data interface Bluetooth® Smart Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart Bluetooth® Smart
Measurements per set of batteries up to 4'000
(reduced when used with Bluetooth®)
up to 4'000
(reduced when used with Bluetooth®)
Service life of batteries up to 8h
(reduced when used with Bluetooth®)
up to 8h
(reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection Yes Yes
Batteries 2x AA Alkaline 2x AA Alkaline
Protection class IP 65 IP 65
2m drop tested Yes Yes
Dimensions 132 x 56 x 29 mm 132 x 56 x 29 mm
Weight with batteries 184g 188g

Functions and features

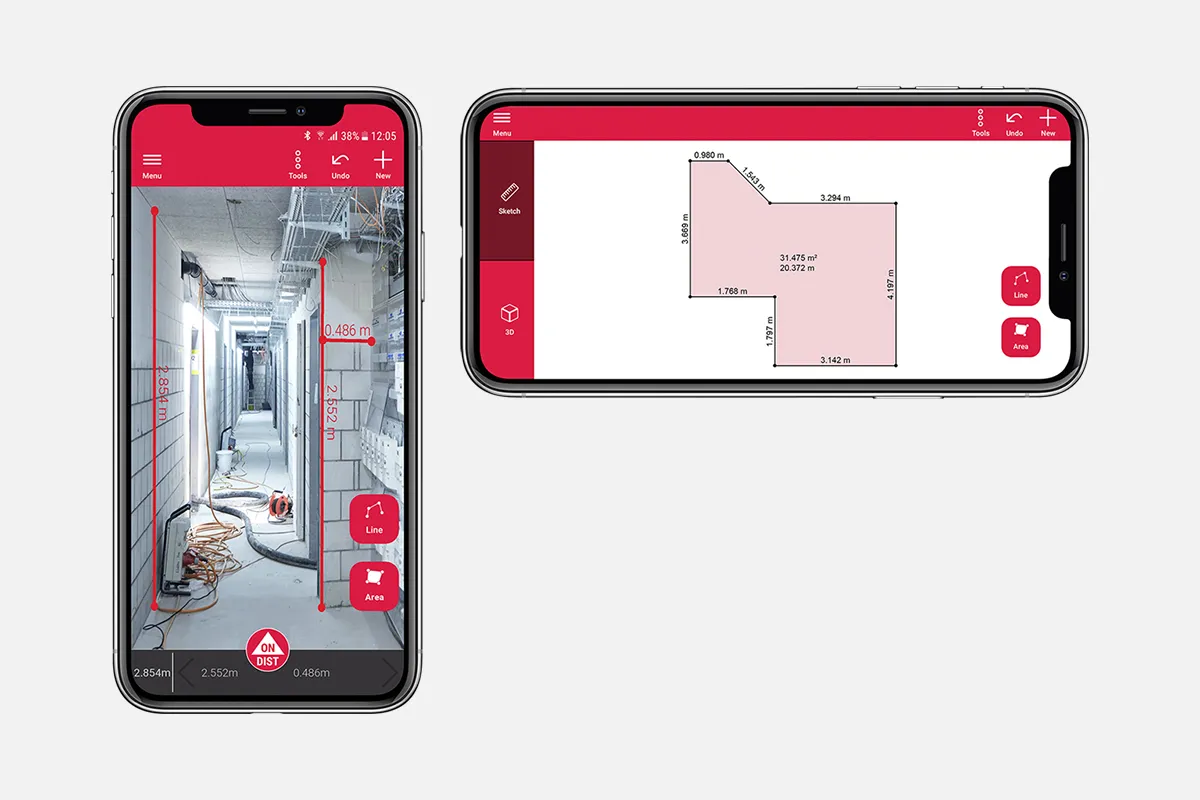

Leica DISTO™ Plan App

Easily document and visualise your measurements

App includes in app purchase

SKETCH YOUR PLAN
Create a sketch on your smartphone or tablet and then assign distance measurements taken with your DISTO™ to each line. The app’s ‘auto-scale’ function adjusts the lines’ length and the result is a scaled, CAD ready plan.

SMART ROOM
Create CAD ready floor plans with your DISTO™ X3 or X4 simply by taking clockwise or counter-clockwise measurements of a room. Once all measurements are taken, the app’s Smart Room function automatically generates the plan.

MEASURE AND PLAN
Point to Point technology and the app’s ‘Measure Plan’ and ‘Measure Façade’ functions make it possible to create detailed floor and wall plans, including doors and windows. You can export your plans from devices which support this functionality as dxf or dwg files directly into your preferred CAD solution.

MEASURE HIDDEN CORNERS
The DISTO™ Plan App’s ‘Measure Façade’ function makes it easy to measure points which are hidden behind objects. Simply take your measurements and the app then automatically calculates the hidden points.

SKETCH ON PHOTO
Leica DISTO™ Bluetooth® Smart technology allows you to assign distance measurements to the appropriate part of a photo taken with your tablet or smartphone.

Leica Disto Plan App on Google Play Leica Disto Plan App on iTunes
