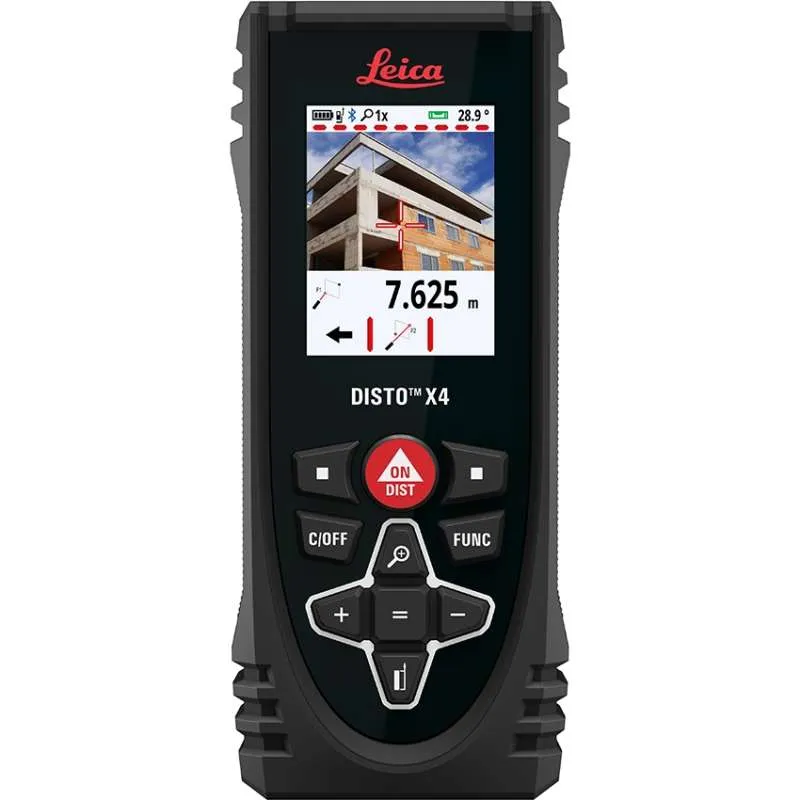

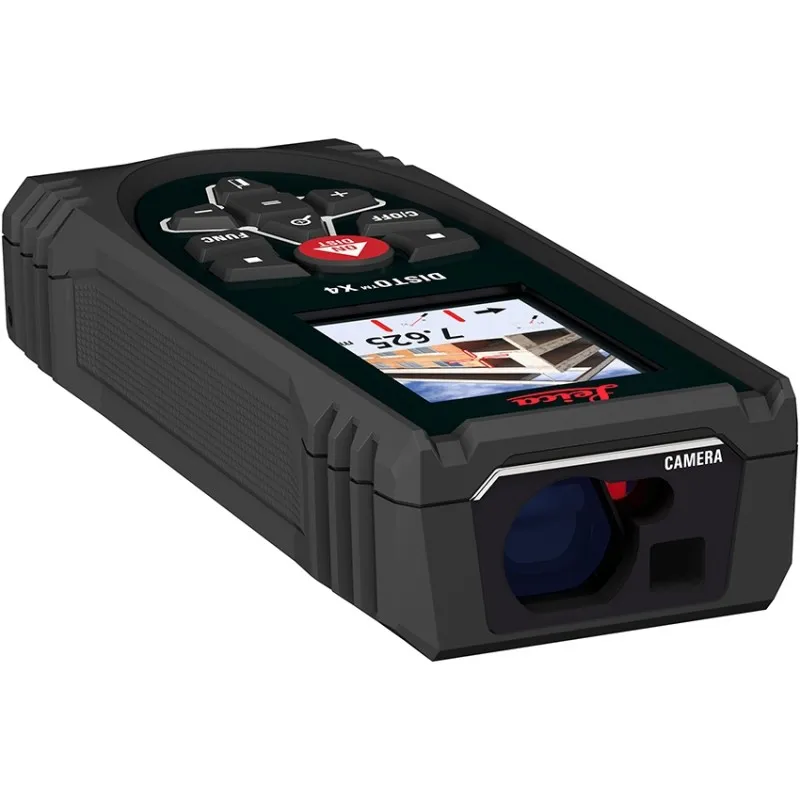

Leica Disto X4 Laser Distance Meter

Designed for bright, outdoor environments

Outdoor Measuring
The Pointfinder camera allows you to precisely target and measure distant objects in bright sunlight. The target object shows clearly on the DISTO’s high-resolution screen.

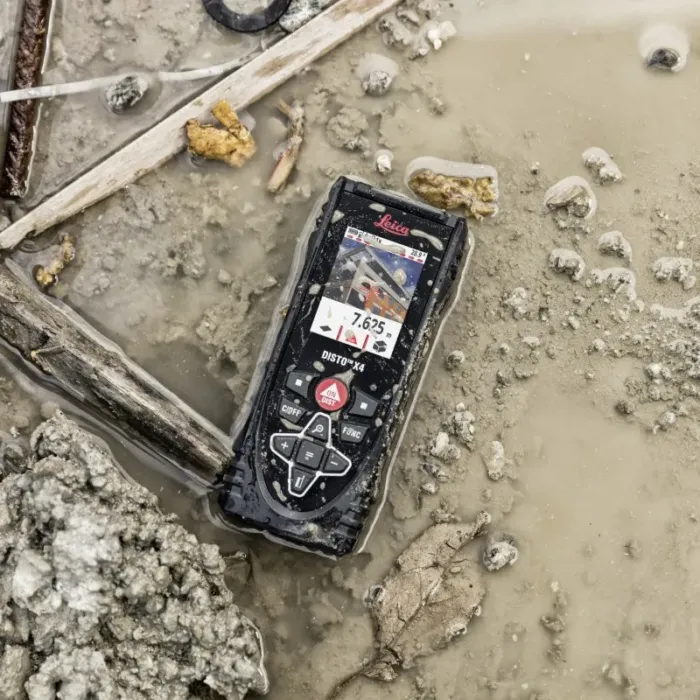

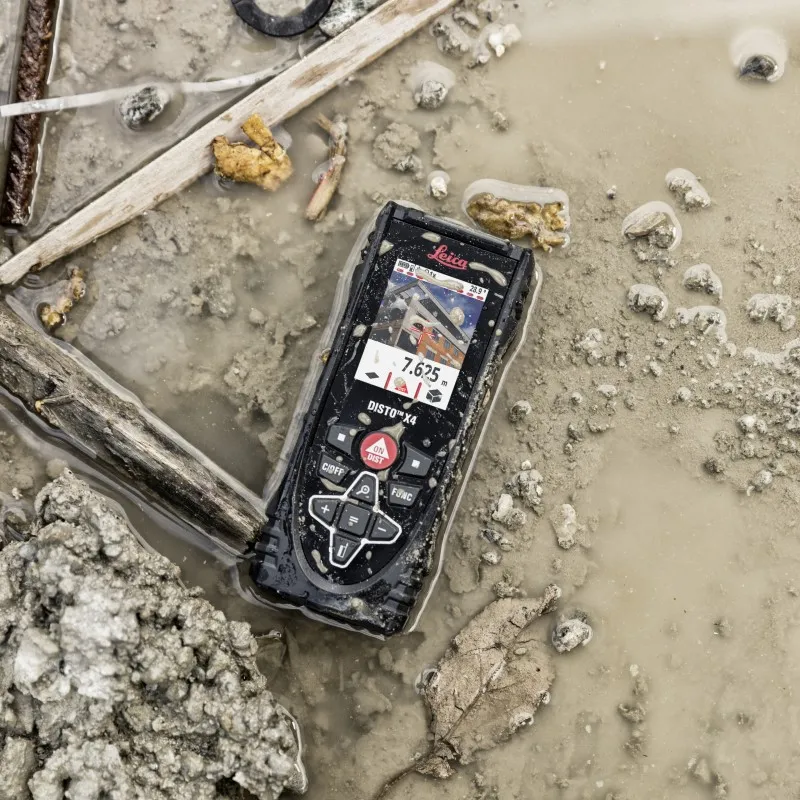

Truly Robust
This DISTO™ is drop-tested up to 2 m in height, water jet and dust protected. Its IP65 rating means you can clean it under running water.

Point to Point Measurement
Transform your DISTO™ X4 into a real measurement station with the DST 360. It allows you to measure distances between any two points, from one position.

Quality Feel
The all-new DISTO™ X4 only uses the best quality materials to ensure consistent measurement results in different environments. A precision product you can trust.

Horizontal Measurements
Distance and tilt measurements allow you to determine horizontal distances with absolute precision. Use your laser measurement data to automatically generate realistic and scaled floor plans.

Product includes

  • Leica DISTO™ X4
  • Handloop
  • Pouch
  • 2xAA batteries
  • Calibration Certificate Silver
  • Quickstart

Document & Visualise
The Leica DISTO™ Plan app allows you to document and visualise your measurements. The Smart Room function makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise room measurements.

SKU: 1501111 Categories: ,


Technical Specifications Leica DISTO X3 Leica DISTO X4
Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150m 0.05 up to 150m
Measuring units m, ft, in m, ft, in
X-Range Power Technology Yes Yes
Tilt sensor Yes Yes
Tilt sensor accuracy to the housing ± 0.2° ± 0.2°
Smart Base measuring range: Horizontal 360° for use with Leica DST 360 360° for use with Leica DST 360

Smart Base measuring range: Vertical

-64° to > 90° for use with Leica DST 360 -64° to > 90° for use with Leica DST 360
Typ. tolerance of the P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360 5° for use with Leica DST 360
Pointfinder with zoom 4x
Memory of last measurement 20 20
Free software for Windows Yes Yes
Free App for iOS and Android Yes Yes
Smart Room function support Yes Yes
General data interface Bluetooth® Smart Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart Bluetooth® Smart
Measurements per set of batteries up to 4'000
(reduced when used with Bluetooth®)
up to 4'000
(reduced when used with Bluetooth®)
Service life of batteries up to 8h
(reduced when used with Bluetooth®)
up to 8h
(reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection Yes Yes
Batteries 2x AA Alkaline 2x AA Alkaline
Protection class IP 65 IP 65
2m drop tested Yes Yes
Dimensions 132 x 56 x 29 mm 132 x 56 x 29 mm
Weight with batteries 184g 188g

Functions and features

Leica DISTO™ Plan App

Easily document and visualise your measurements

App includes in app purchase

Create a sketch on your smartphone or tablet and then assign distance measurements taken with your DISTO™ to each line. The app’s ‘auto-scale’ function adjusts the lines’ length and the result is a scaled, CAD ready plan.

Create CAD ready floor plans with your DISTO™ X3 or X4 simply by taking clockwise or counter-clockwise measurements of a room. Once all measurements are taken, the app’s Smart Room function automatically generates the plan.

Point to Point technology and the app’s ‘Measure Plan’ and ‘Measure Façade’ functions make it possible to create detailed floor and wall plans, including doors and windows. You can export your plans from devices which support this functionality as dxf or dwg files directly into your preferred CAD solution.

The DISTO™ Plan App’s ‘Measure Façade’ function makes it easy to measure points which are hidden behind objects. Simply take your measurements and the app then automatically calculates the hidden points.

Leica DISTO™ Bluetooth® Smart technology allows you to assign distance measurements to the appropriate part of a photo taken with your tablet or smartphone.

Leica Disto Plan App on Google Play Leica Disto Plan App on iTunes
