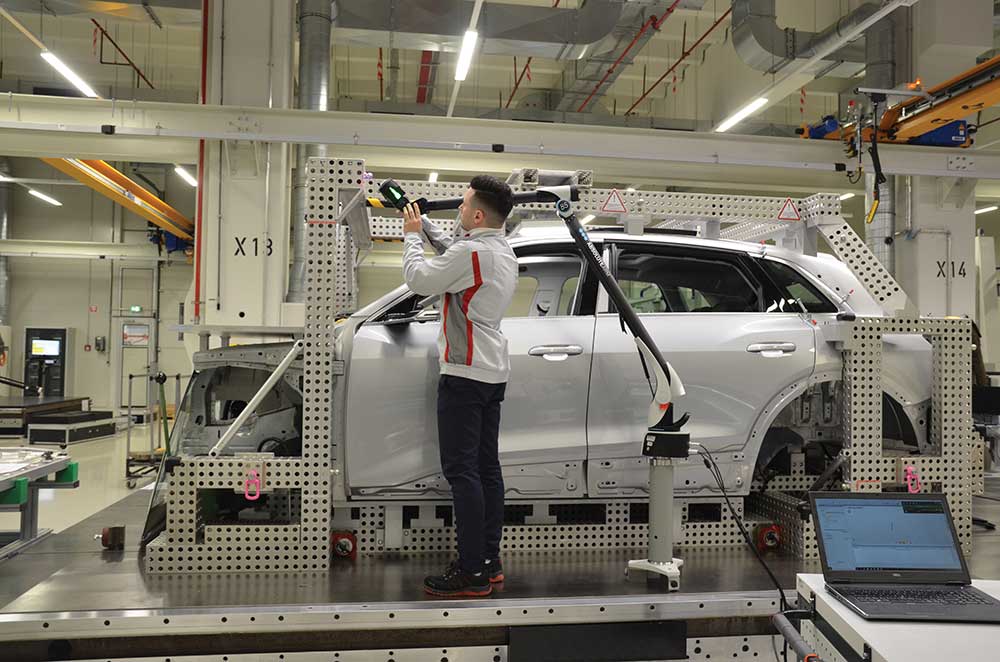

Experience unmatched 3D measurement flexibility with the Hexagon Absolute Arm 7-Axis, the ultimate portable solution for high-precision inspection and scanning in Saudi Arabia. Designed for manufacturing, aerospace, automotive, and energy industries, this advanced arm combines lightweight portability, ergonomic handling, and integrated laser scanning for fast and reliable quality control on the shop floor or in the field.
Description
Portable 3D scanning and probing with exceptional accuracy
Engineered for greater durability and simplified operation, the Hexagon Absolute Arm 7-Axis delivers high-precision measurement wherever it is needed.

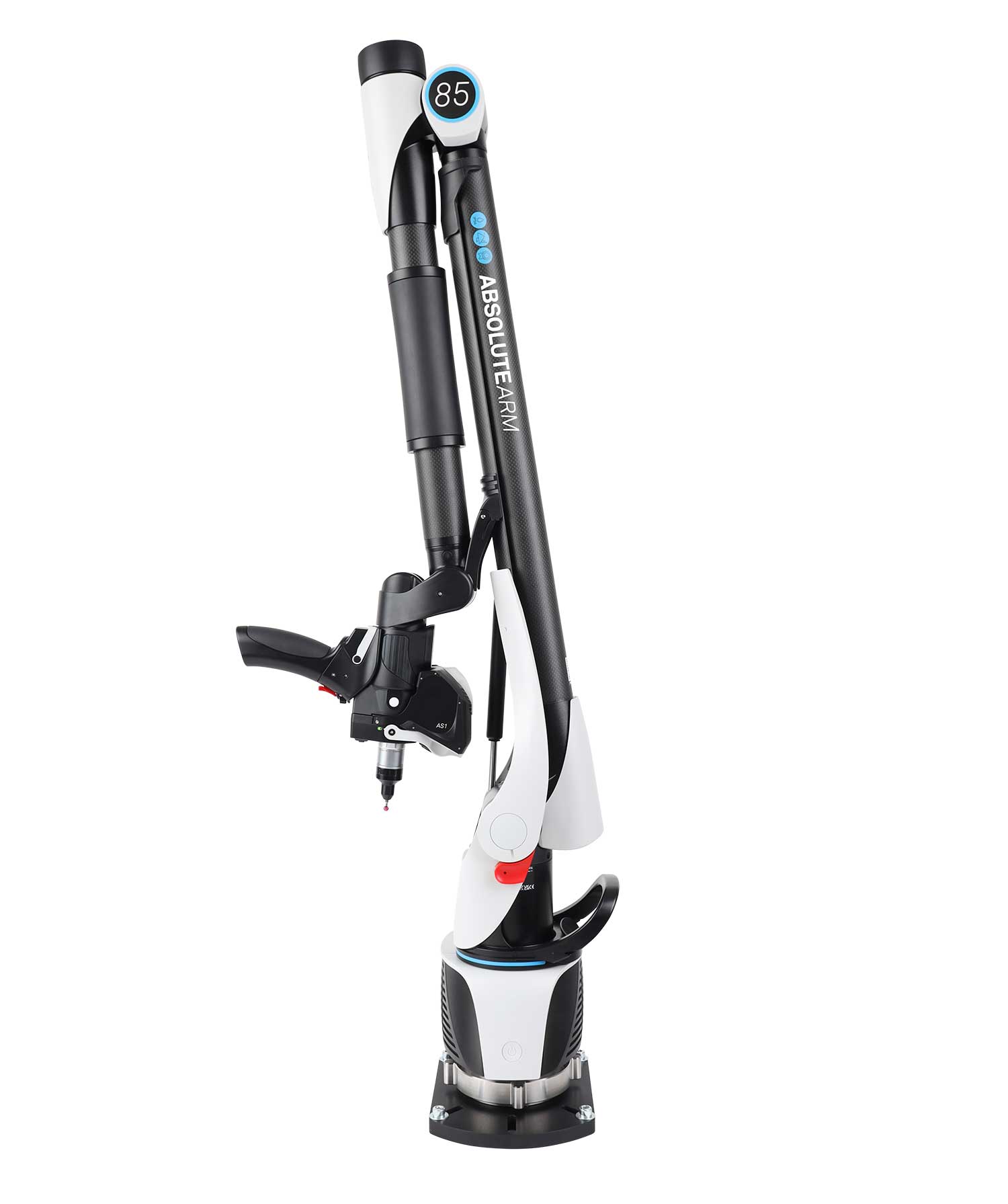

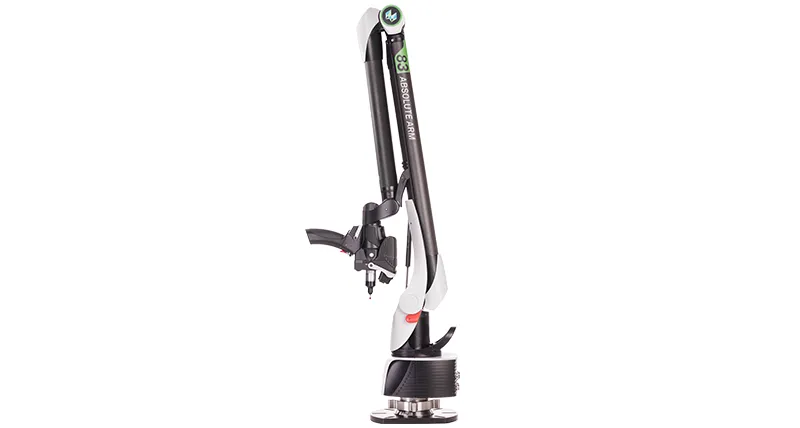

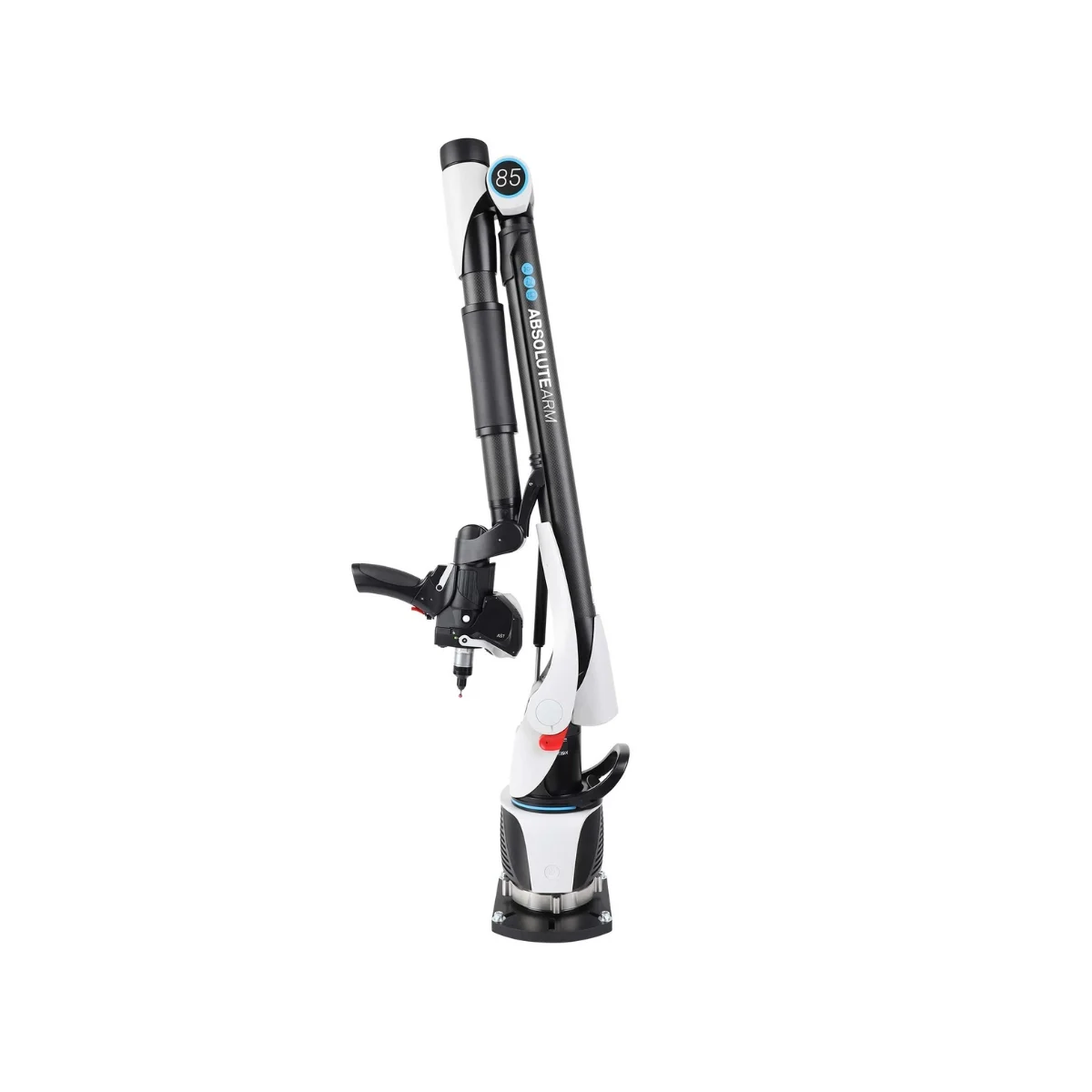

Absolute Arm 7 Axis
High-accuracy touch probing alongside fast and accurate 3D laser scanning. One of three models available in the Absolute Arm range.

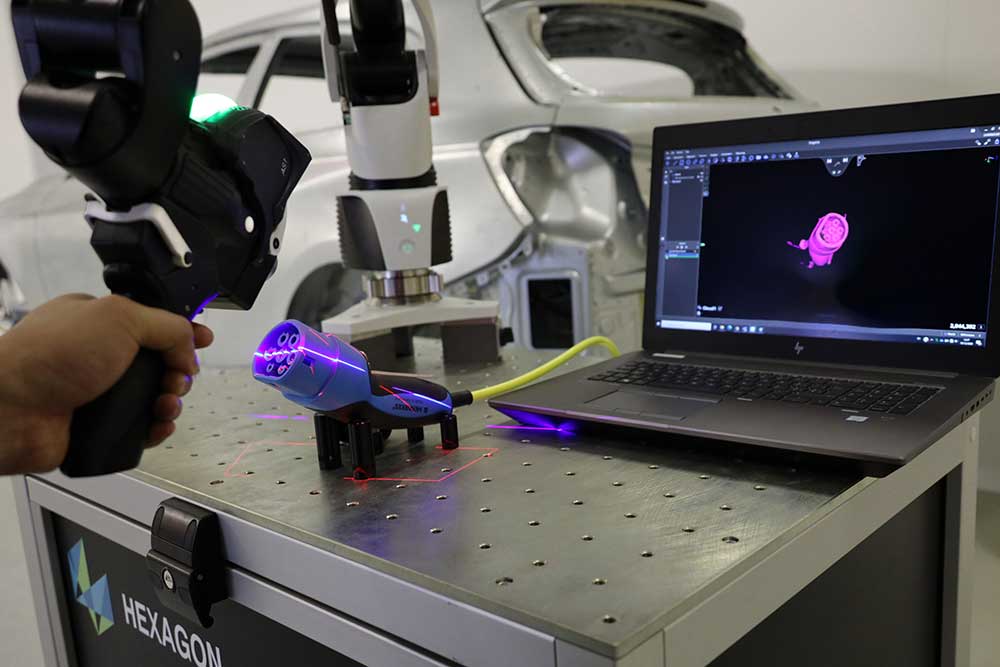

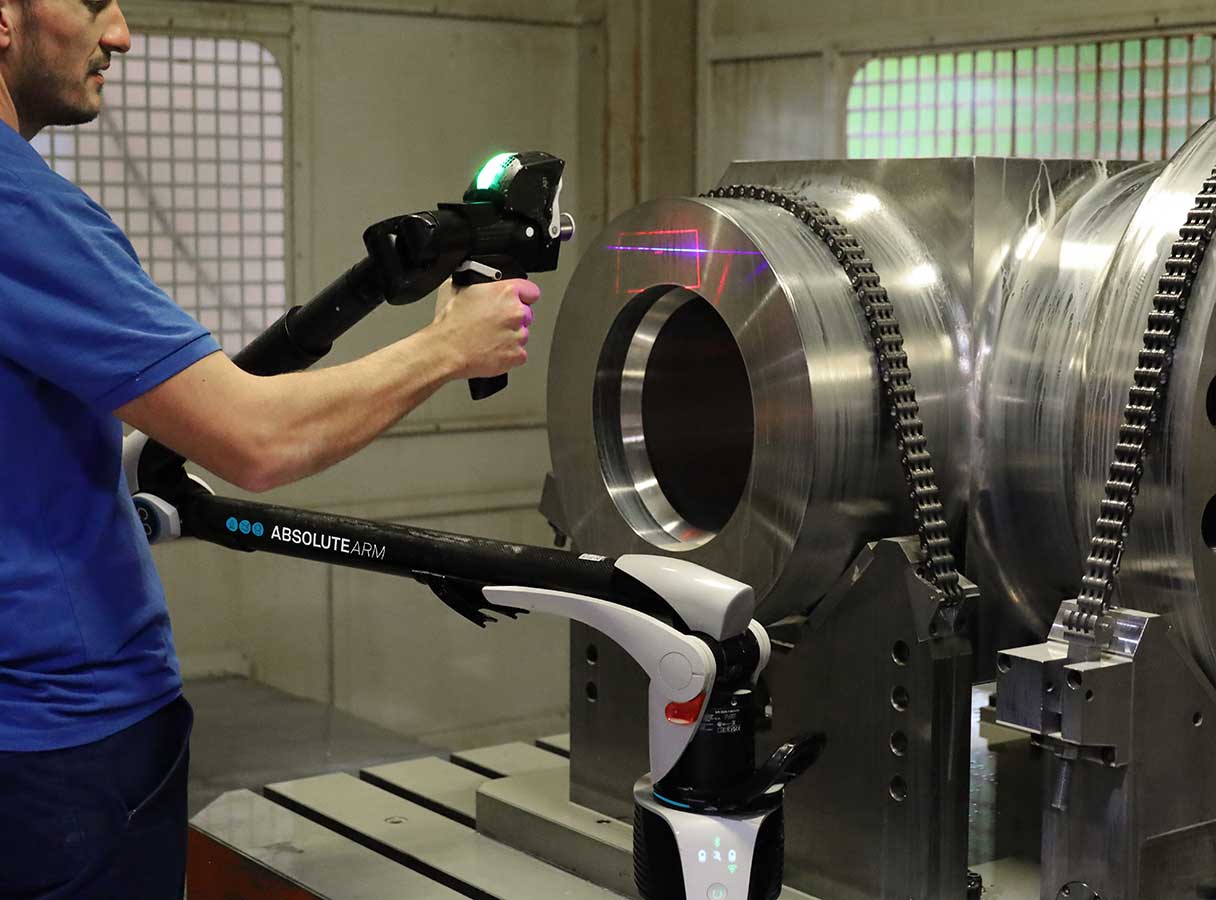

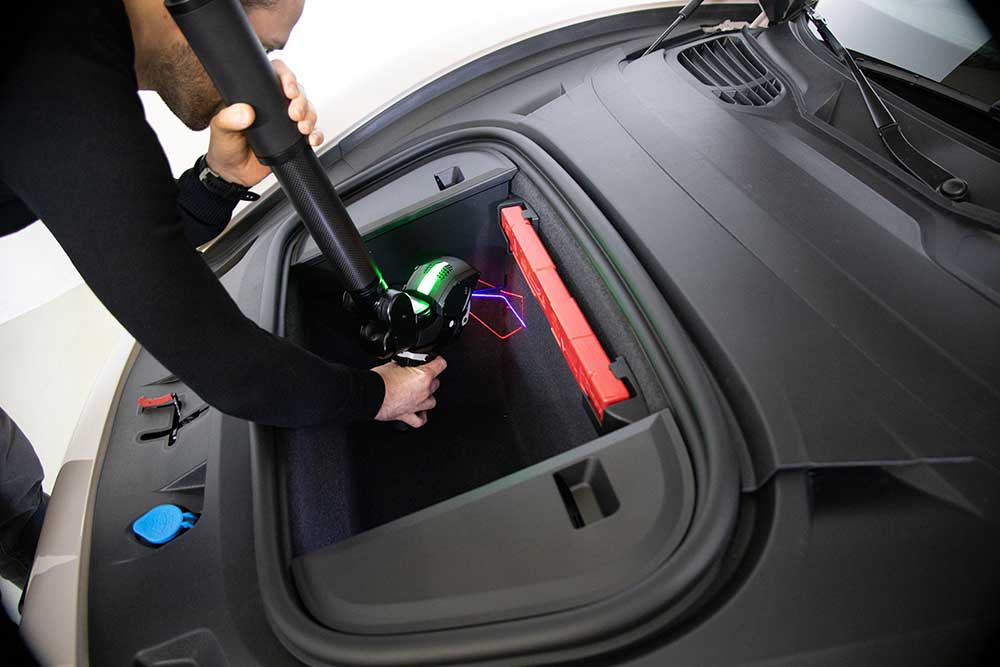

The Hexagon Absolute Arm 7-Axis supports a broad selection of quick-change accessories to suit different measurement needs. For tactile measurement, users can choose from more than 100 compatible probes. For high-speed 3D scanning and digitization, the Absolute Scanner AS1 provides exceptional accuracy, fast data capture, and automatic exposure control using advanced SHINE technology for easy scanning of varied surfaces. The Absolute Scanner AS1-XL extends coverage with an extra-wide laser line and longer standoff distance for efficient large-surface measurement. The proven RS5 Laser Scanner adds reliable, general-purpose scanning capability. Both the AS1 and AS1-XL can also be mounted on an Absolute Positioner AP21 and paired with a laser tracker for large-scale measurement without the need for realignment or recalibration.

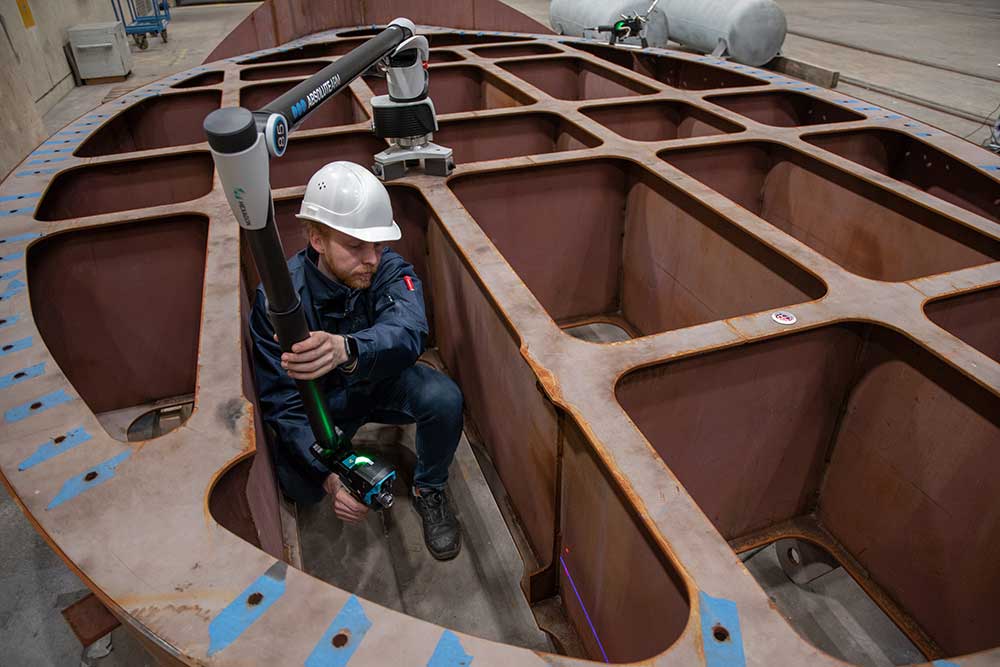

The Hexagon Absolute Arm 7-Axis is the first measurement arm with an IP54 rating, providing outstanding resistance to dust and water. Its rugged Advanced Frame Structure allows operation in ambient temperatures up to 45 °C, ensuring stable, precise measurement even in hot or challenging industrial settings. This robust construction offers assurance for everyday factory use and confidence in harsher production conditions.

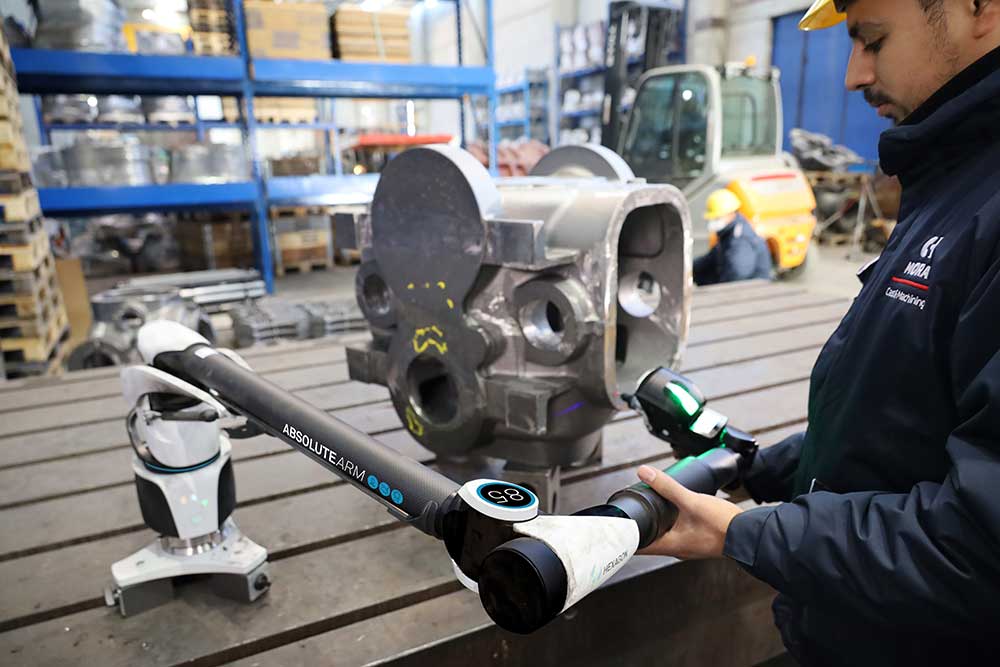

The Hexagon Absolute Arm 7-Axis is built to keep workflows moving with fast, uninterrupted measurement. Operators can switch quickly between modular accessories, work with zero warm-up time, and benefit from Wi-Fi connectivity and broad software compatibility. Hot-swap batteries, real-time condition monitoring, and the arm’s lightweight, balanced design further support extended use and consistent high productivity.
The Hexagon Absolute Arm 7-Axis is designed for comfort and accuracy, even in challenging industrial environments with vibration or background noise. Collaborative feedback provides real-time alerts to help maintain measurement reliability. Its modular wrist design improves ergonomics and allows work in confined spaces for detailed part inspection. Features such as a weightless Zero G arm and an integrated on-wrist touchscreen give operators direct control, instant results, and clear notifications, enabling longer, more productive measurement sessions.
The Hexagon Absolute Arm 7-Axis features robust, stable Wi-Fi, eliminating the need for cables and ensuring smooth operation in demanding industrial environments. Every Absolute Arm model integrates seamlessly with leading metrology data management and asset management software, supporting efficient workflows and accurate digital records across manufacturing and quality control processes.

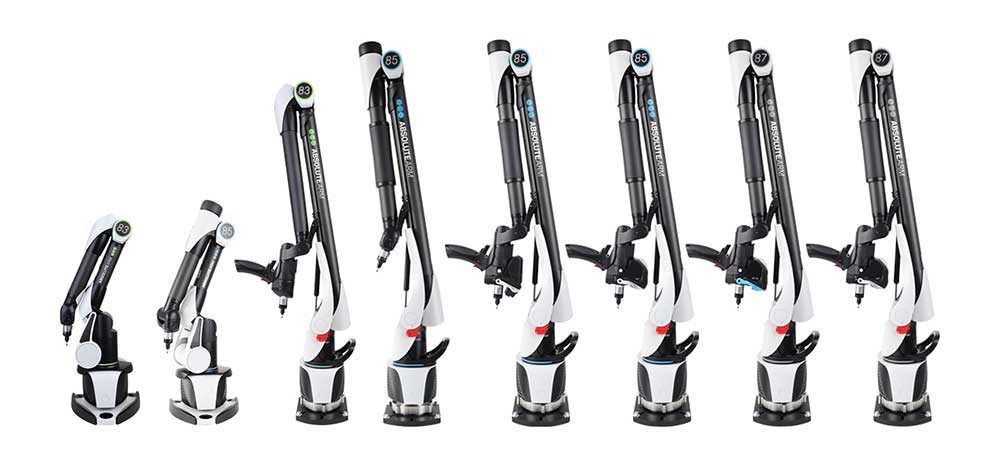

The Hexagon Absolute Arm series offers 36 different configurations to meet diverse industrial measurement needs. Customers can select from three models—Compact, 6-Axis, and 7-Axis—each available in three accuracy levels (83, 85, and 87). The Compact model provides a 1.2-metre diameter measurement volume, while the 6-Axis and 7-Axis models cover a range of 2.0 to 4.5 metres, ensuring the right balance of reach and precision for every application.
Features and Benefits
Probing and scanning

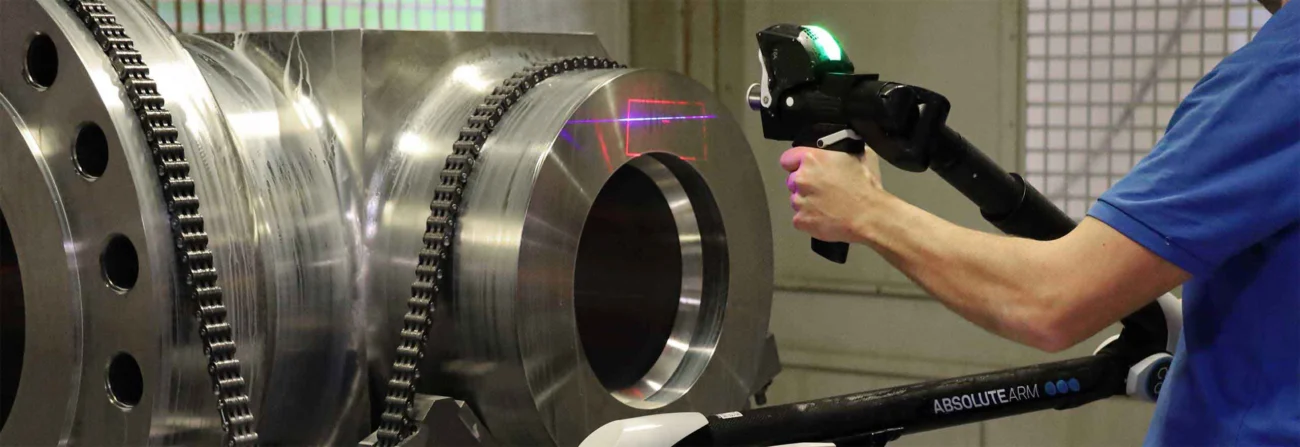

Combining high-accuracy touch probing with fast, high-productivity 3D scanning using the Absolute Scanner AS1 or AS1-XL, this multifunctional portable measuring system boosts efficiency through greater usability and versatility. It delivers reliable, detailed measurement data for complex inspection and quality control tasks across diverse industrial applications.
Absolute Encoders
Every articulated joint of the Hexagon Absolute Arm 7-Axis is equipped with Absolute Encoders, making it the only portable measuring arm that requires no encoder referencing or warm-up time. This advanced design delivers immediate, high-accuracy measurement and improved productivity, even when working in tight or hard-to-reach spaces.
Advanced Frame Structure

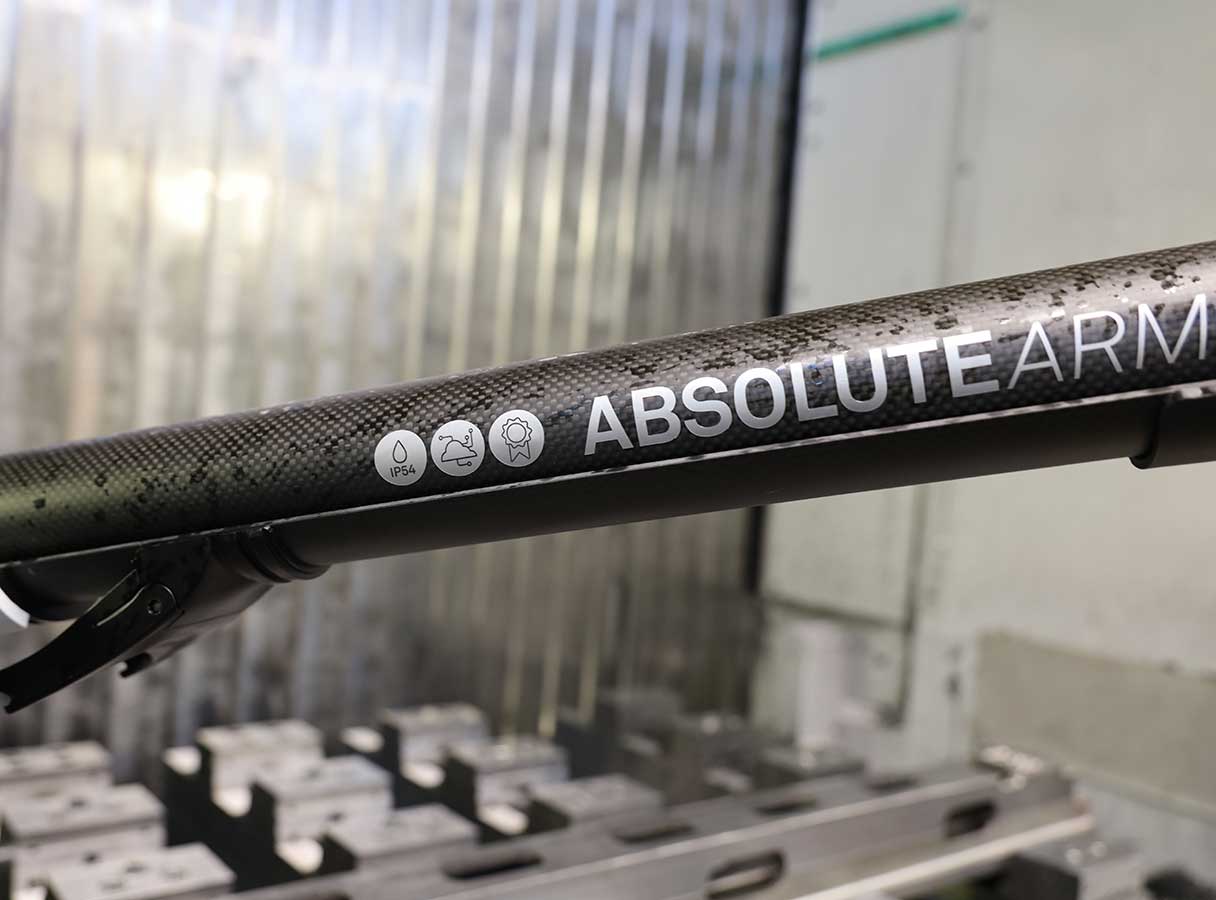

Engineered with a high-tech carbon-fibre tube frame, the Absolute Arm delivers exceptional rigidity and resists temperature fluctuations. This advanced design ensures reliable measurement accuracy in a wide range of industrial and environmental conditions.
Complete Protection
As the first portable measuring arm with an IP54 rating, the Absolute Arm delivers dependable performance in dusty or wet conditions. Built to operate reliably in temperatures up to 45 °C, it provides consistent, high-precision measurements even in the most challenging industrial settings.
Effortless movement

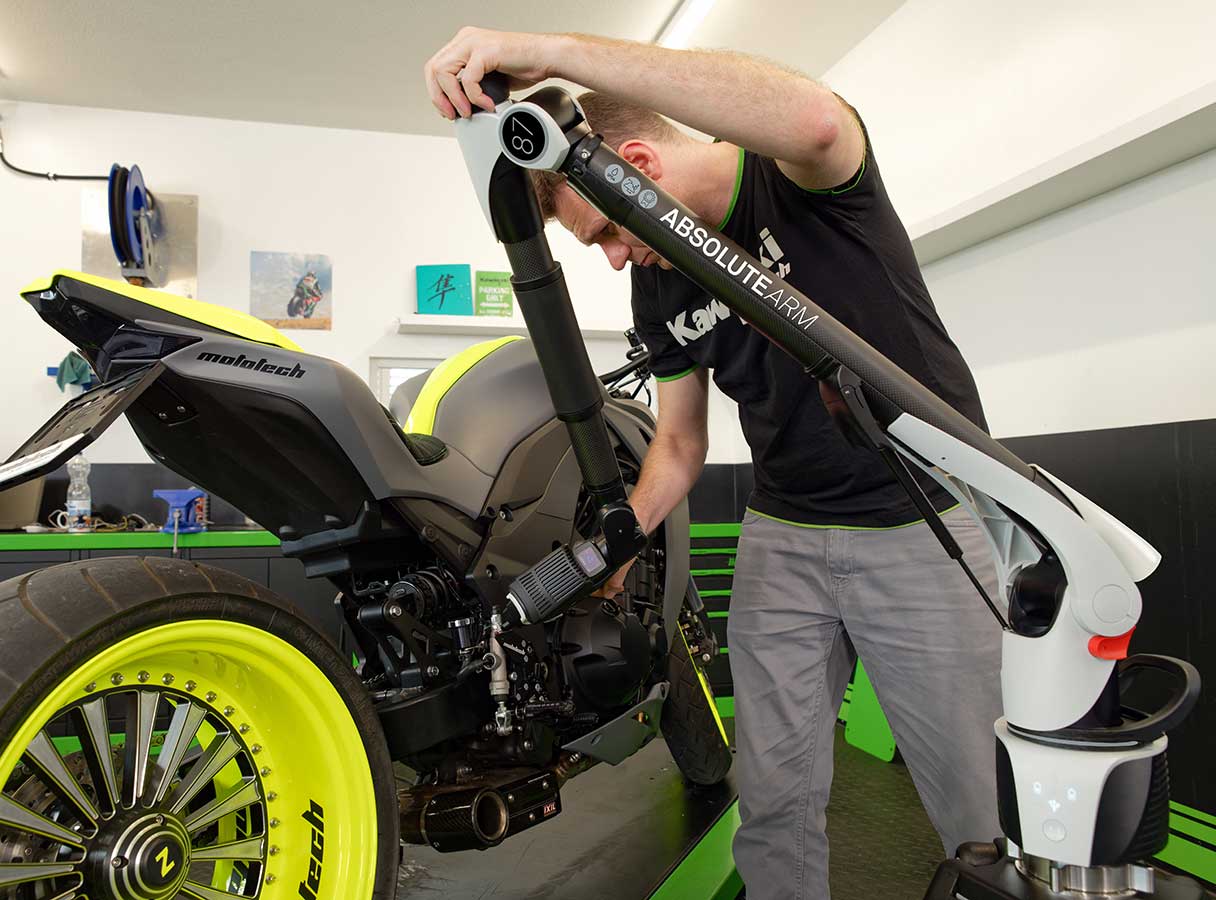

Intuitively positioned infinite-rotation, low-friction grips reduce operator fatigue and keep every movement light and accurate. Together with a sophisticated counterbalance system, this design provides exceptional agility, making the Absolute Arm one of the most user-friendly and precise portable measuring arms available.
User feedback
The Hexagon Absolute Arm 7-Axis keeps measurement processes running smoothly, even in harsh industrial environments. Its integrated visual, acoustic, and haptic feedback systems provide instant alerts and guidance, allowing operators to maintain speed and accuracy without interruption.
Absolute portability
With a maximum system weight of only 10.5 kilograms, even the largest models are easy to set up and reposition, making day-to-day operation highly efficient. A shock-resistant, purpose-built carry case adds extra security, keeping all components protected and ready for safe transport between sites.
ISO certification
Probing performance is certified to ISO 10360-12, ensuring reliable high-precision measurements for demanding industrial applications. When paired with an Absolute Scanner AS1, AS1-XL, or RS5 Laser Scanner, the complete scanning system is also certified to ISO 10360-8 Annex D, providing verified accuracy across both probing and 3D laser scanning operations.
Touchscreen Wrist Display
An integrated OLED wrist display allows operators to monitor and control measurements directly at the arm, eliminating the need to check a separate computer screen. This feature streamlines workflows and helps maintain focus during detailed inspection tasks.
Essential security
The HomeDock and SmartLock functions let operators safely stow and lock the Absolute Arm between measurements. These features protect scanners and probes from damage and help maintain factory-calibrated accuracy, ensuring long-term reliability and consistent measurement performance.
Asset management
All Absolute Arm systems integrate seamlessly with the Metrology Asset Manager platform, enabling users to track equipment health and measurement performance in real time from any location. This connectivity supports proactive maintenance and ensures consistent reliability across global operations.
Technological foundation
Developed from decades of expertise in portable measuring arm technology, the Absolute Arm 7-Axis represents the newest evolution of Hexagon’s market-leading articulated measuring arms. Building on the legacy of the ROMER Arm and ROMER Absolute Arm, it offers advanced design and performance for today’s high-precision industrial applications.
