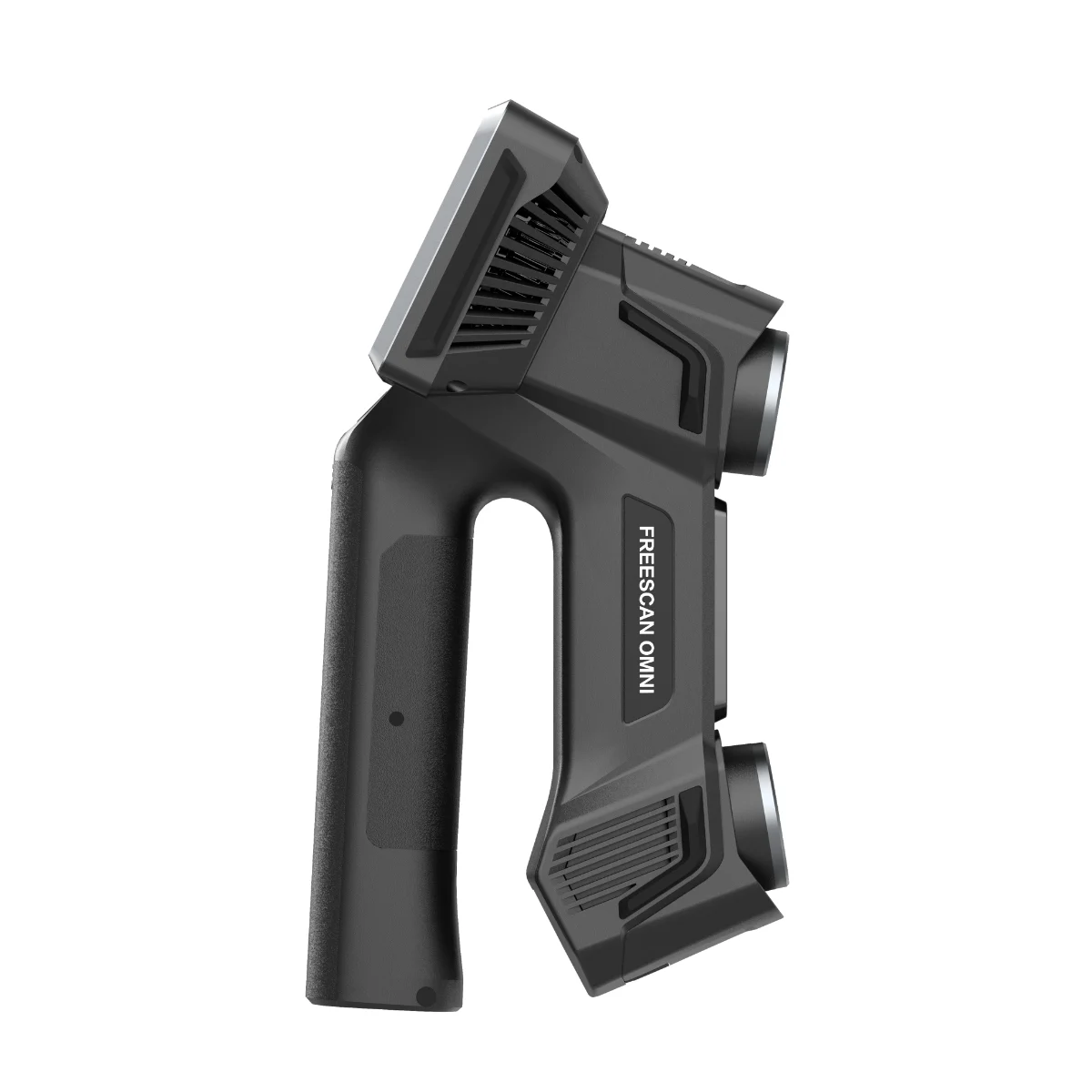

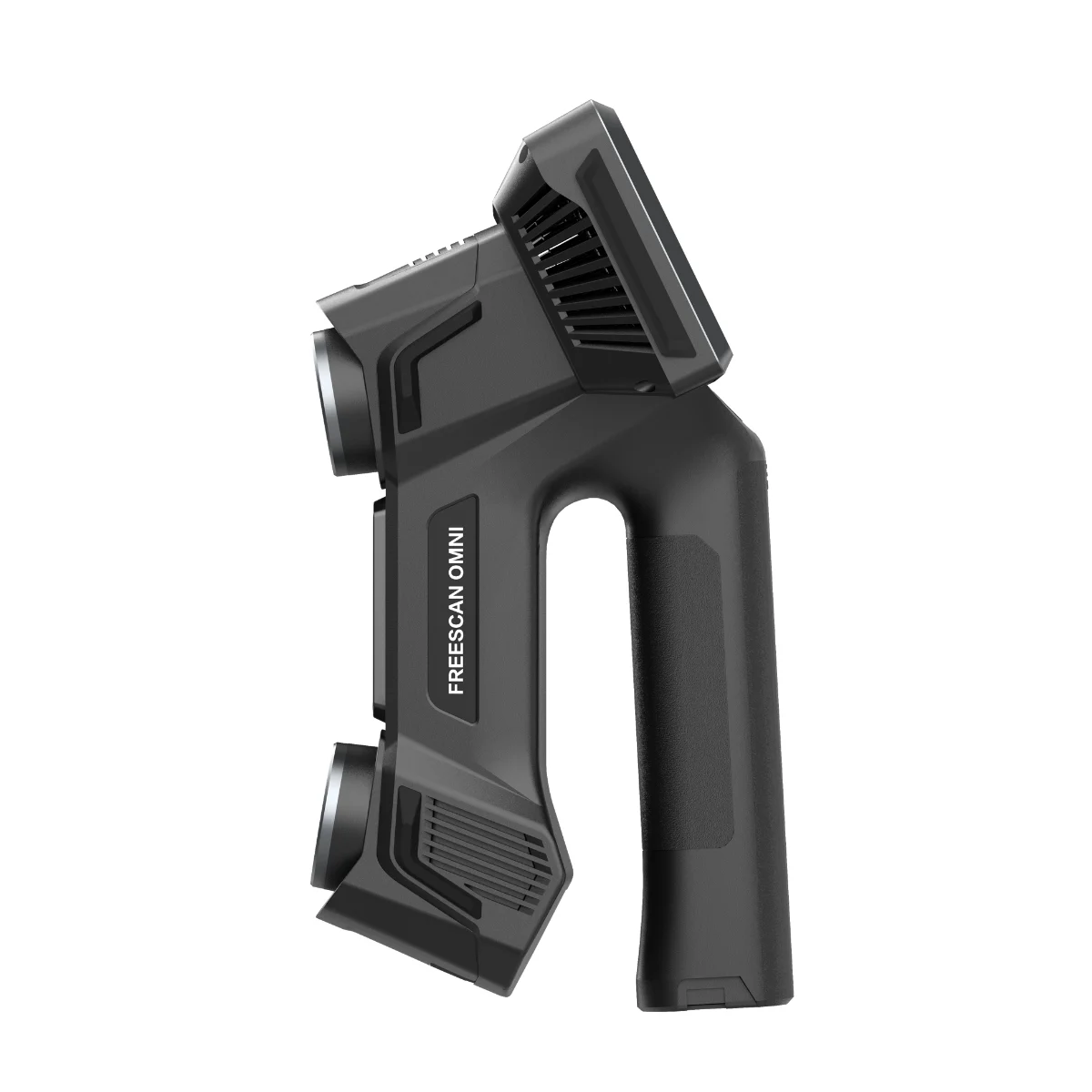

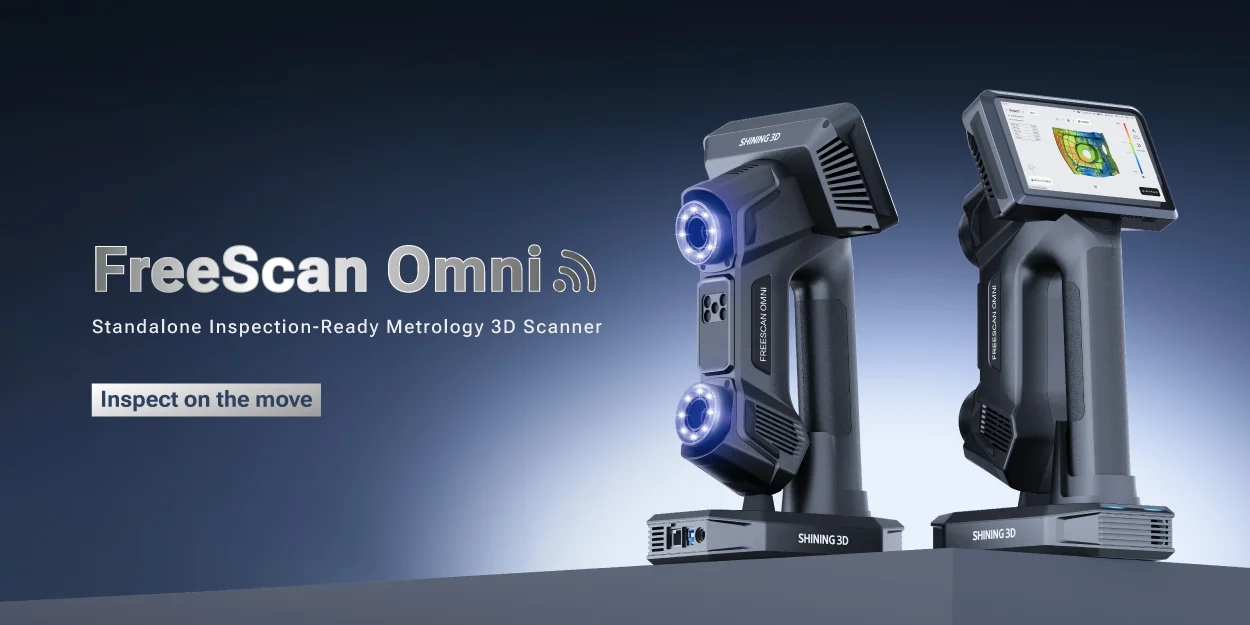

Standalone Wireless Metrology 3D Scanner for Industrial Inspection

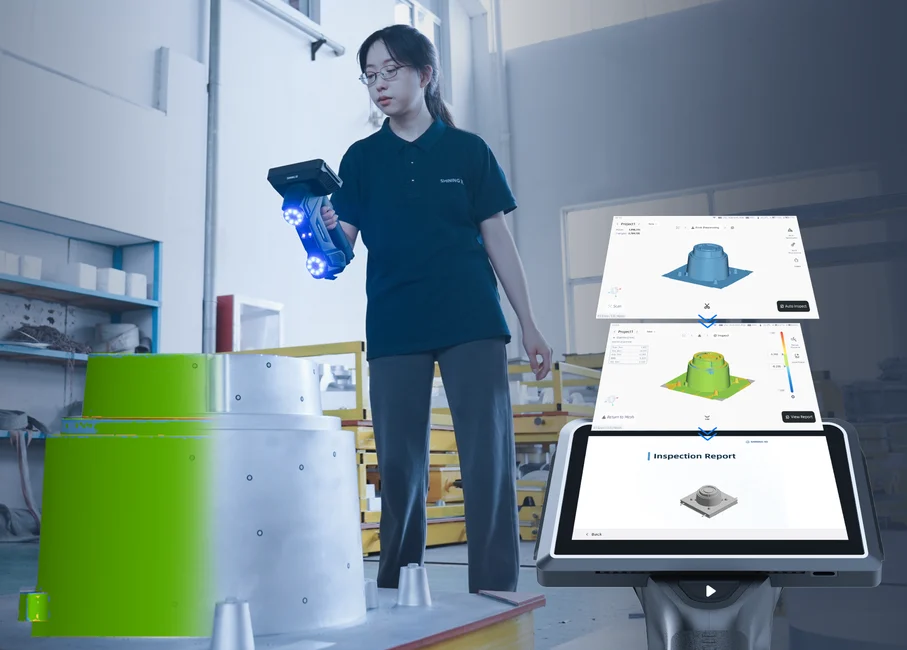

FreeScan Omni enables a complete scan-to-inspect workflow directly on the scanner, from 3D scanning and mesh processing to dimensional inspection and reporting. Powered by SHINING3D Inspect with PTB-certified measurement capabilities, its intuitive interface and preset inspection templates help operators perform consistent quality checks and generate inspection reports on the shop floor without a separate PC.

• PTB-Certified SHINING3D Inspect Software
• Automated, Template-Based Dimensional Inspection
• On-Device Reporting and Data Export

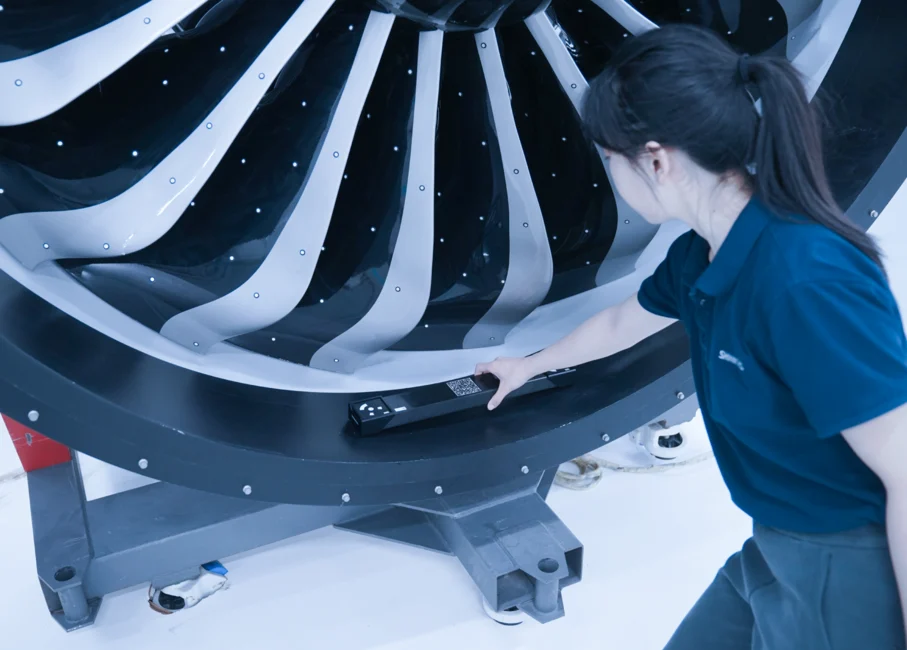

FreeScan Omni Series supports SHINING 3D’s patented Video Photogrammetry (VPG) technology for high-accuracy 3D scanning of large industrial components without coded markers. Using a calibration rod and real-time video-based marker verification, VPG streamlines scanning setup while improving volumetric measurement accuracy to 0.02 + 0.015 mm/m. VPG is included with FreeScan Omni and available as an optional module for FreeScan Omni Lite.

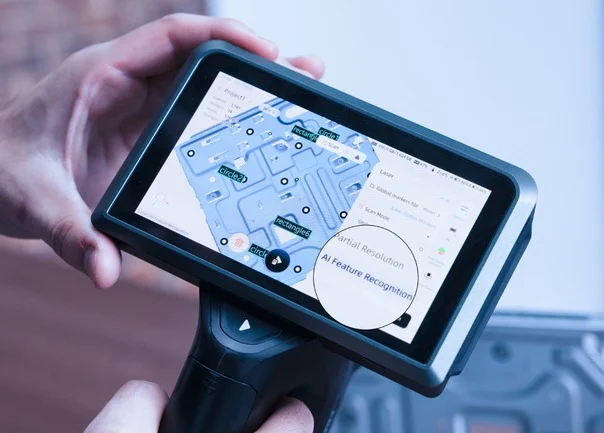

FreeScan Omni Series uses AI-powered feature recognition and intelligent boundary detection to identify and precisely measure circular holes, rectangular holes, and slots in scanned industrial components. This streamlines dimensional inspection, reduces manual measurement steps, and supports accurate, consistent quality control. AI Feature Recognition is included with FreeScan Omni and available as an optional module for FreeScan Omni Lite.

FreeScan Omni delivers a fully integrated scan-to-inspect solution, combining high-accuracy 3D scanning, dimensional inspection, and reporting directly on the device.

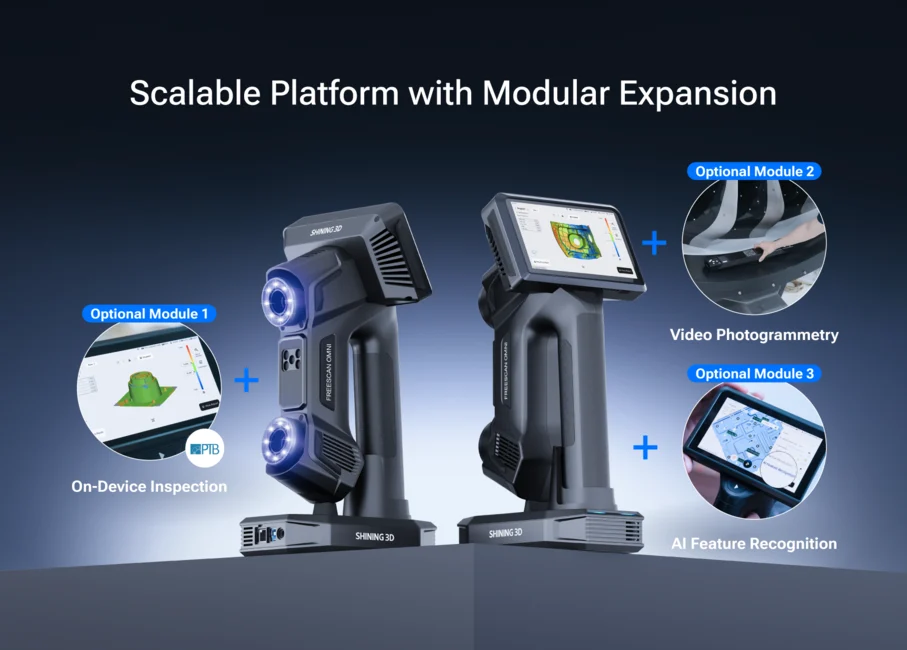

FreeScan Omni Lite shares the same scanning hardware and certified metrology accuracy, with optional modules for on-device inspection, Video Photogrammetry (VPG), and AI Feature Recognition. This scalable platform allows manufacturers to expand their inspection capabilities as industrial measurement and quality control requirements evolve.

• Certified Metrology Accuracy: FreeScan Omni Series delivers 0.02 mm measurement accuracy and volumetric accuracy of 0.02 + 0.03 mm/m. Verified through acceptance testing based on VDI/VDE 2634 Part 3 and ISO 10360 in an ISO/IEC 17025-accredited laboratory, it supports reliable dimensional inspection and industrial quality control.
• High-Performance Onboard Computing: Equipped with an integrated processing module, FreeScan Omni Series enables rapid 3D scanning and data processing directly on the device. This standalone capability streamlines shop-floor inspection workflows, reducing dependence on external computers while improving measurement efficiency.

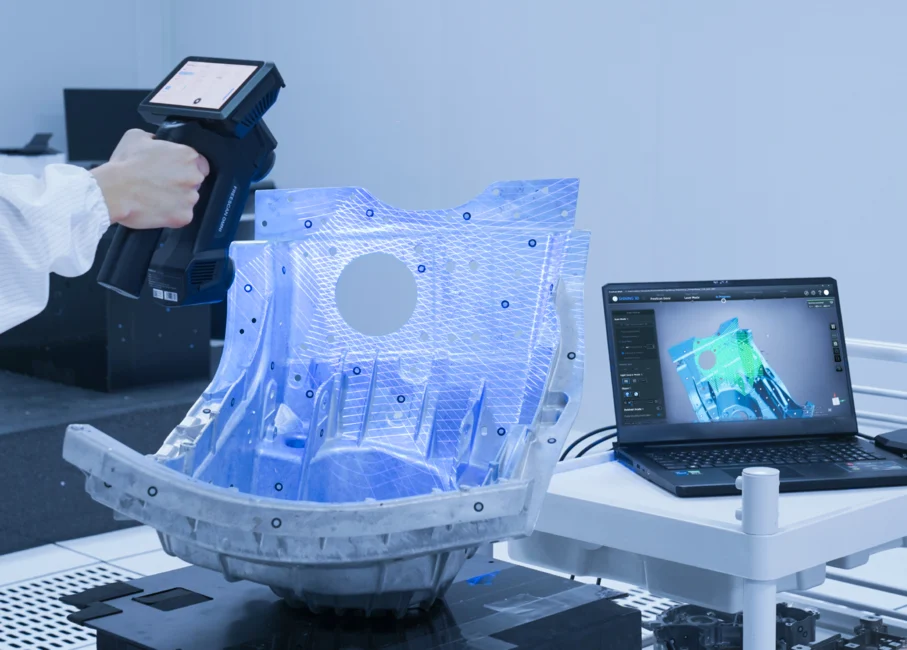

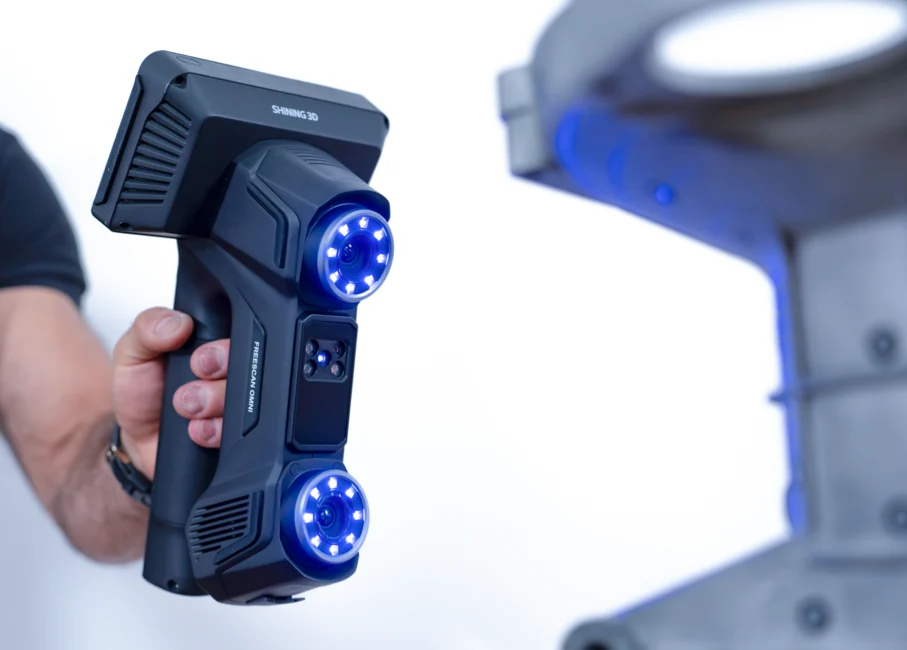

FreeScan Omni Series delivers fully wireless 3D scanning with no external power or data cables required during standalone operation. Its rechargeable, hot-swappable battery packs can be replaced without shutting down the scanner, enabling uninterrupted measurement workflows. With onboard data processing and portable operation, it supports efficient industrial inspection across production floors and on-site environments.

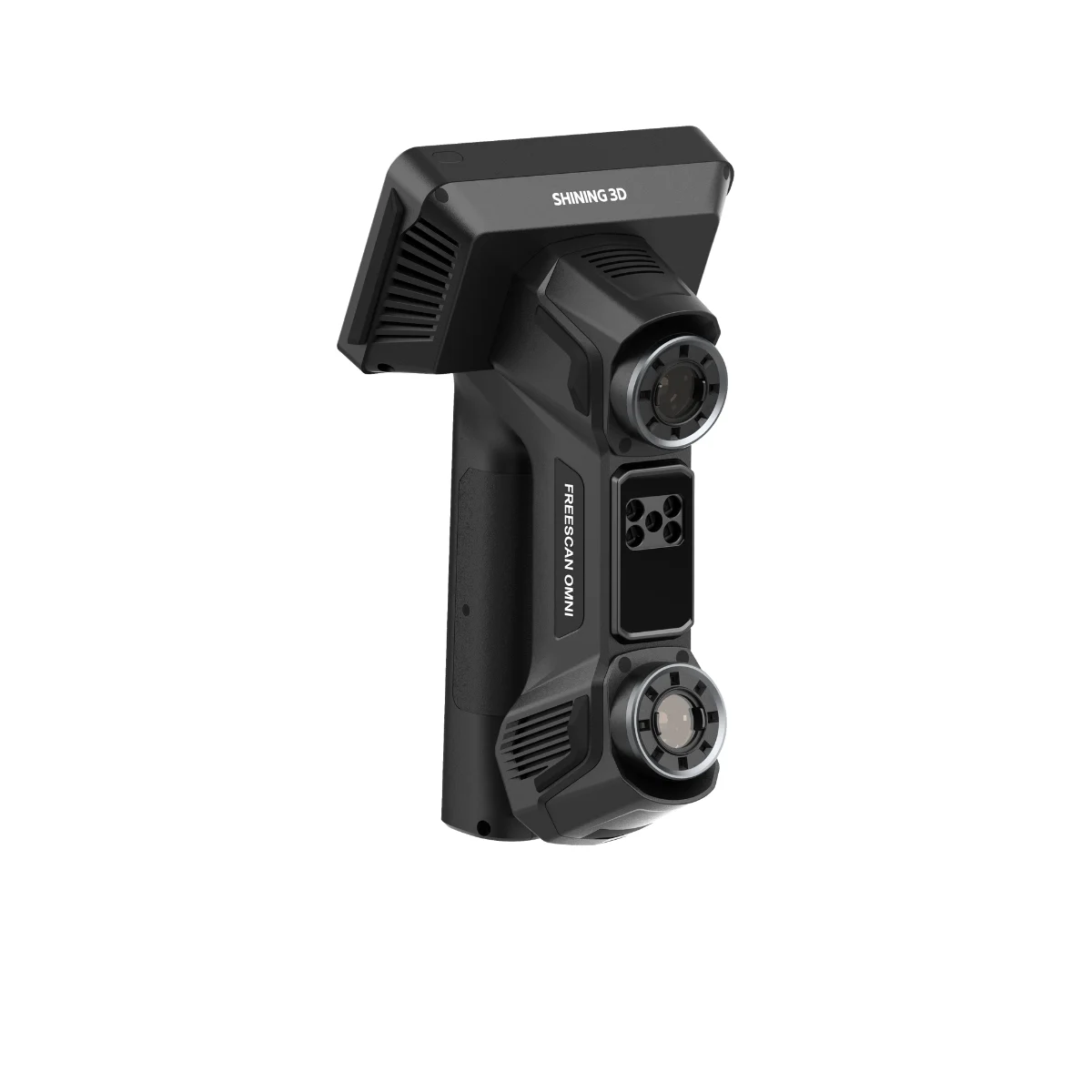

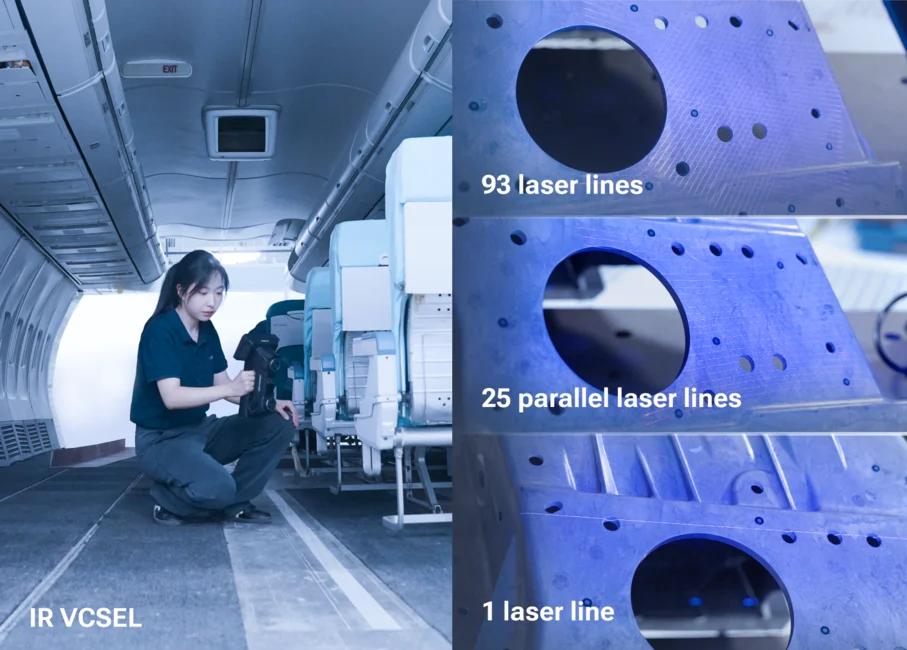

FreeScan Omni Series combines high-performance blue laser and infrared (IR VCSEL) scanning modes to capture complex industrial components with speed, precision, and flexibility. Its versatile scanning capabilities support dimensional inspection, quality control, and reverse engineering across different part geometries and surface conditions.

• High-Speed Scanning: 93 laser lines for fast 3D data capture and efficient coverage of large surfaces.
• Detailed Scanning: 25 parallel laser lines for precise measurement of intricate features and complex geometries.
• Deep-Pocket Scanning: A single laser line for capturing recessed areas, narrow cavities, and hard-to-reach features.
• IR Rapid Scanning: Infrared VCSEL technology for fast, marker-free 3D scanning of suitable industrial components.

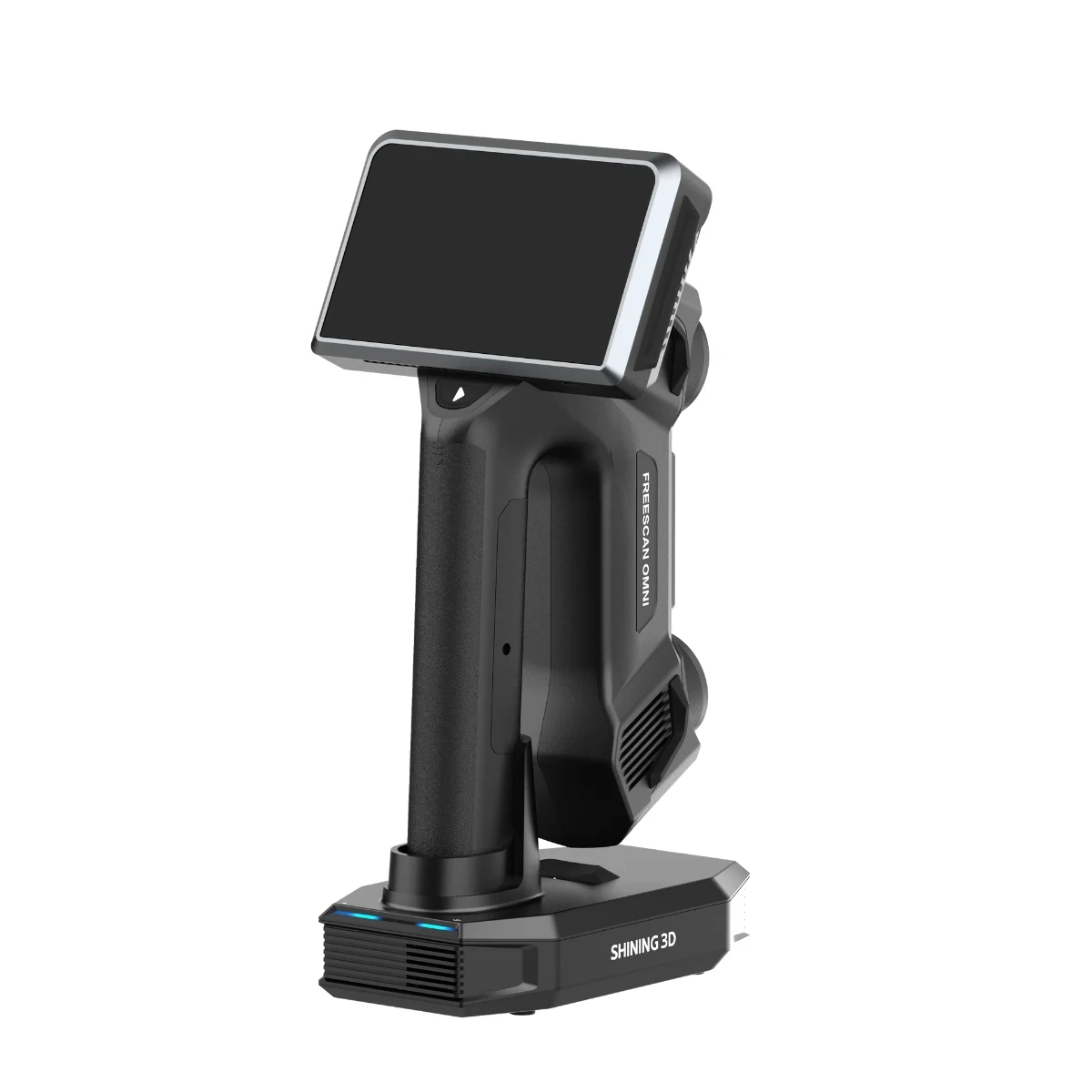

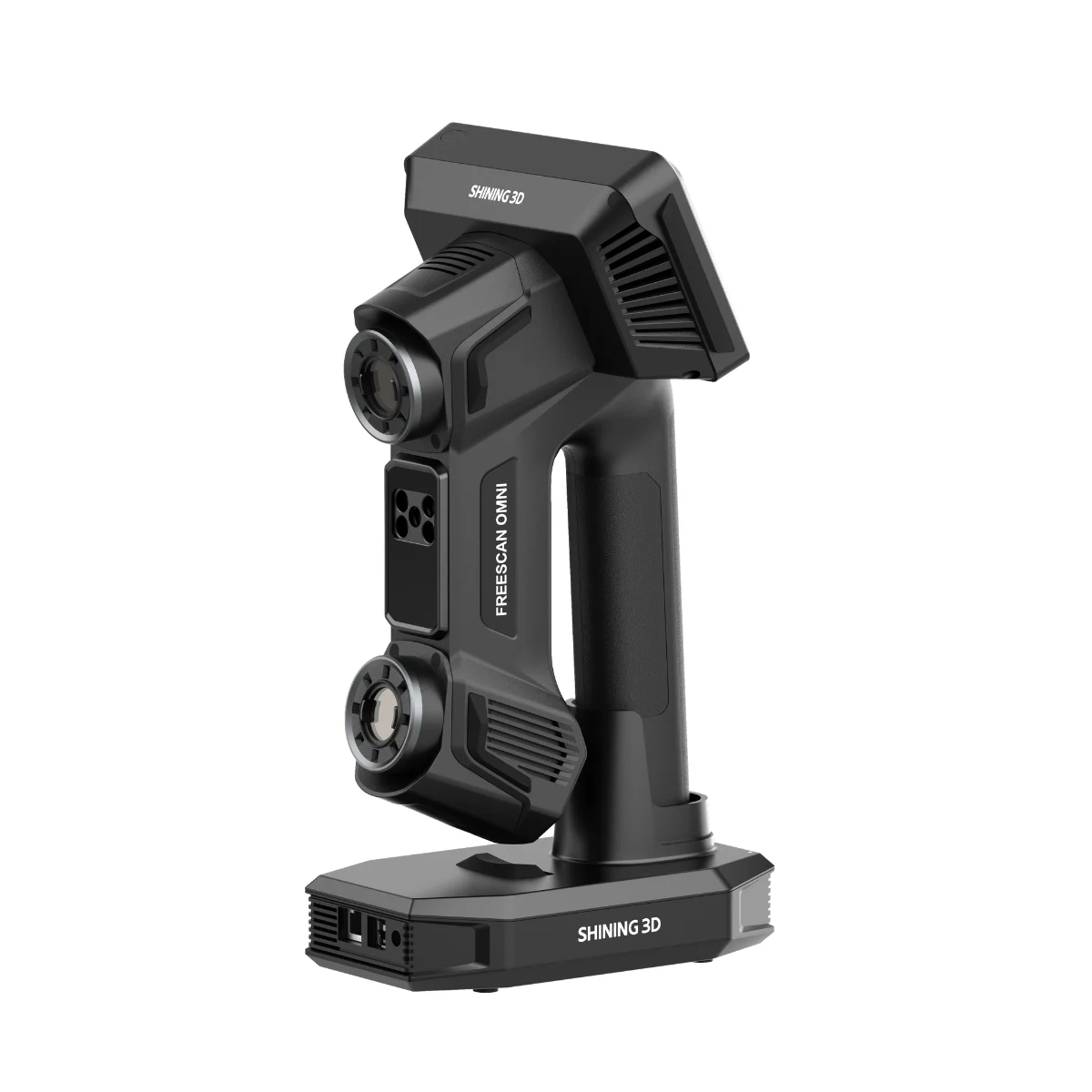

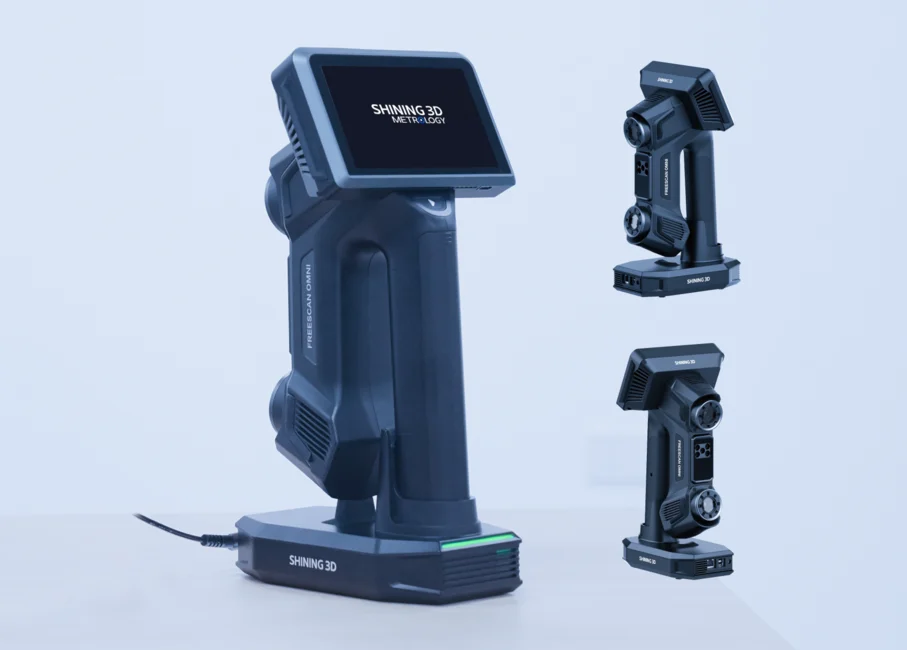

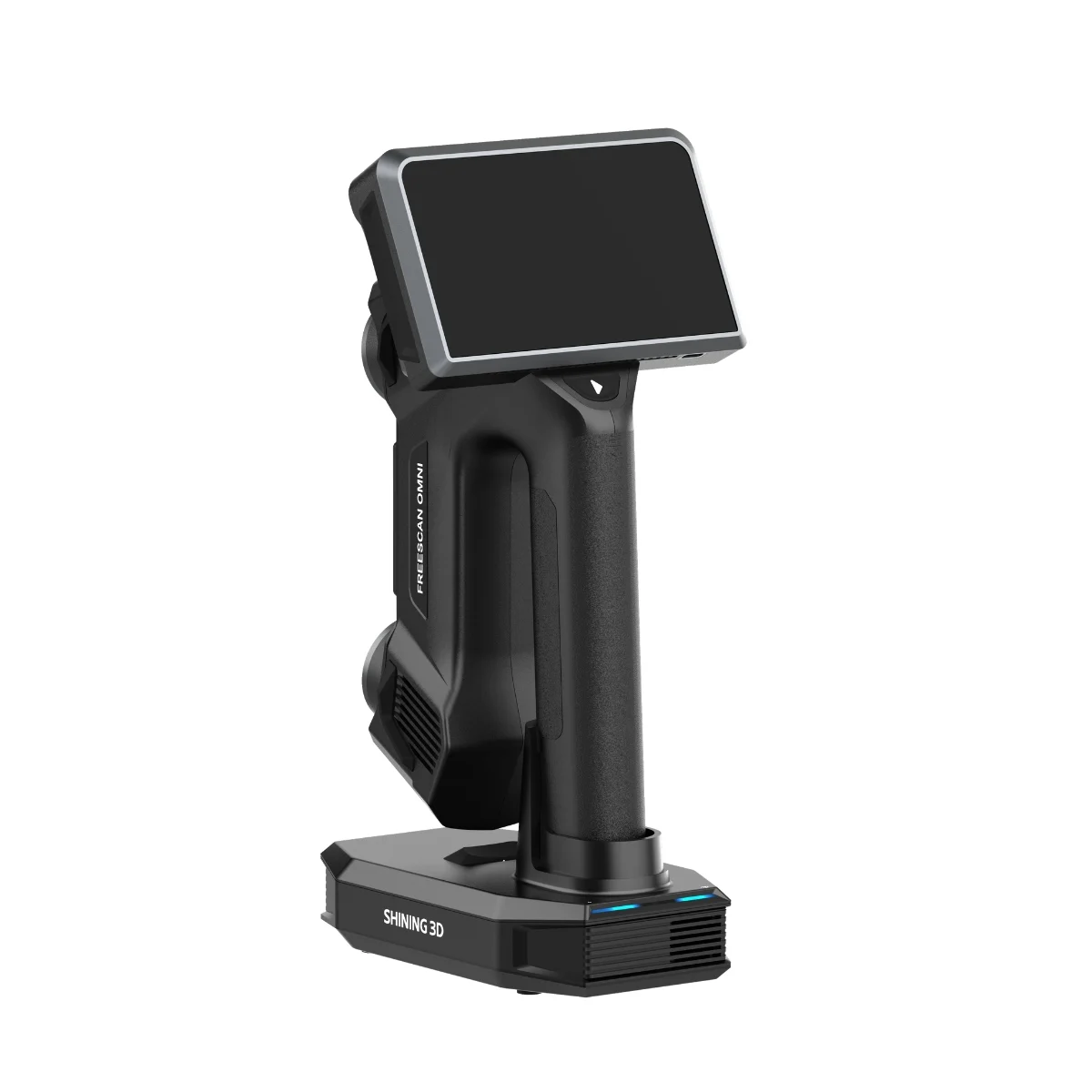

The FreeScan Omni Series Smart Dock simplifies device charging and wireless network setup, keeping the scanner ready for industrial 3D scanning and inspection workflows.

• Convenient Charging: Quickly recharge the scanner through its dedicated docking station.
• Automatic Wi-Fi Setup: Dock the scanner to simplify network configuration and establish wireless connectivity.

FreeScan Omni received the Red Dot Award: Product Design 2026, recognizing its innovative industrial design, ergonomic construction, and integrated metrology capabilities. The award highlights SHINING 3D’s approach to combining wireless 3D scanning, onboard inspection, and user-friendly operation in a standalone industrial measurement solution.

FreeScan Omni Series delivers reliable, traceable 3D measurement for industrial quality control and dimensional inspection, supported by SHINING 3D’s accredited accuracy laboratory and internationally recognized metrology standards.

• Verified Measurement Standards: Acceptance testing based on VDI/VDE 2634 Part 3 and ISO 10360 confirms metrology performance and measurement accuracy.

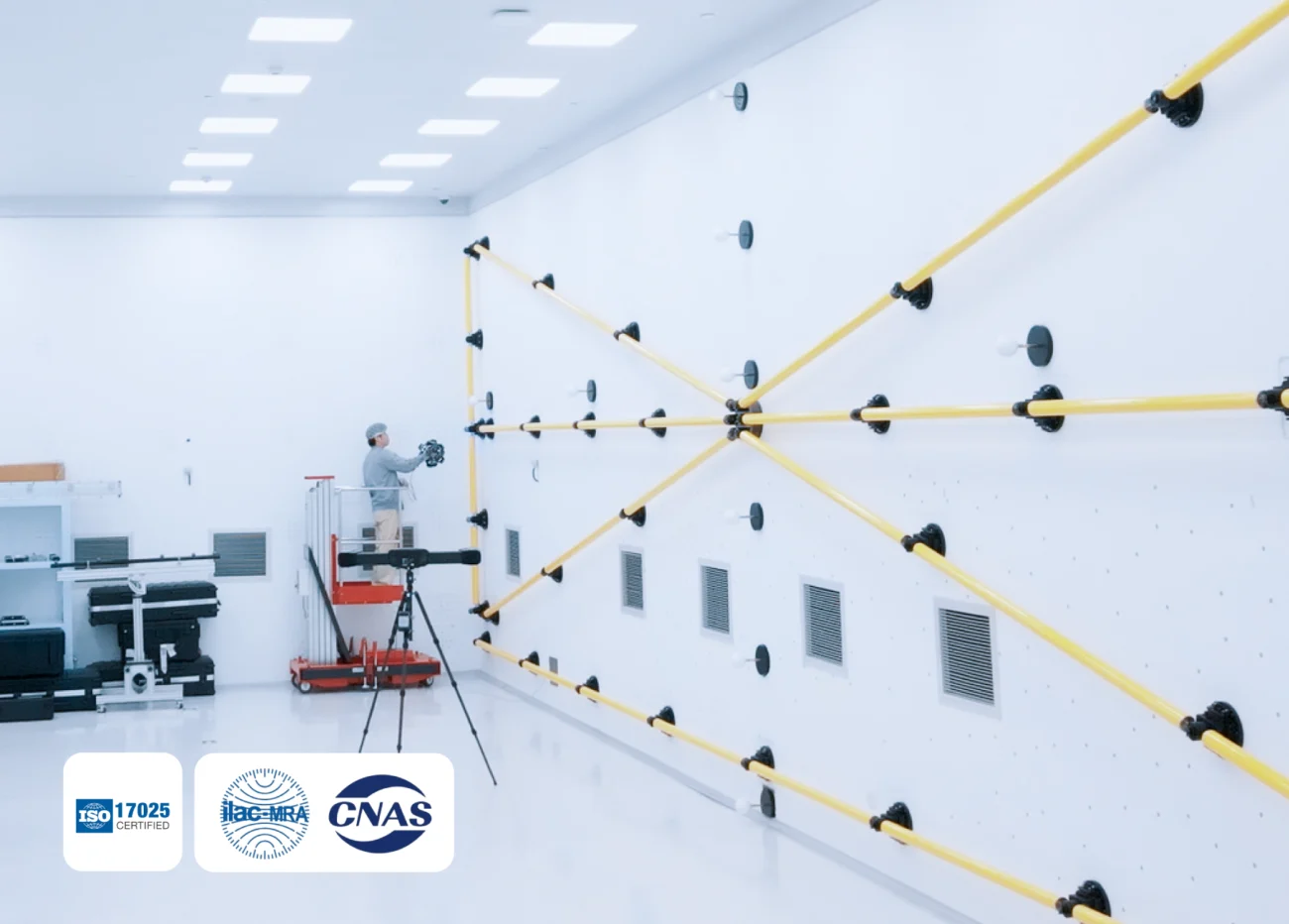

• ISO/IEC 17025-Accredited Laboratory: Calibration and verification are conducted in SHINING 3D’s accredited Accuracy Laboratory to support consistent measurement quality.
• International Measurement Traceability: Applicable calibration certificates and inspection reports provide documented traceability to international measurement standards.

SHINING 3D provides application-focused metrology solutions backed by technical expertise and global support. In Saudi Arabia, SITML assists customers with FreeScan Omni Series product enquiries, configuration guidance, and suitable 3D scanning and inspection solutions for their industrial measurement requirements.
