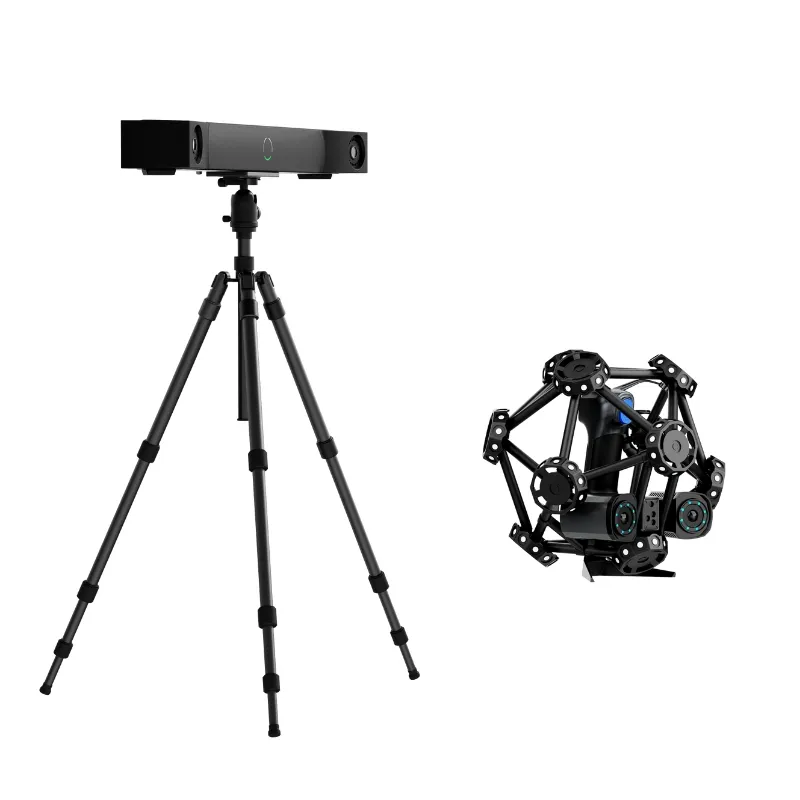

Optical 3D Measurement with Marker-Free Dynamic Tracking
Achieve exceptional accuracy of 0.023 mm (0.0009 in)
Ultra-fast scanning speed of up to 3,070,000 points per second
Wide-area tracking capability
Optional FreeProbe compatibility for enhanced versatility
Marker-Free Optical 3D Measurement and Dynamic Tracking
Perfect for quality control and 3D inspection, the FreeScan Trak Pro2 delivers high accuracy and repeatability. It enables rapid, precise inspection across diverse part types and surface finishes—no markers required.
Markerless Operation

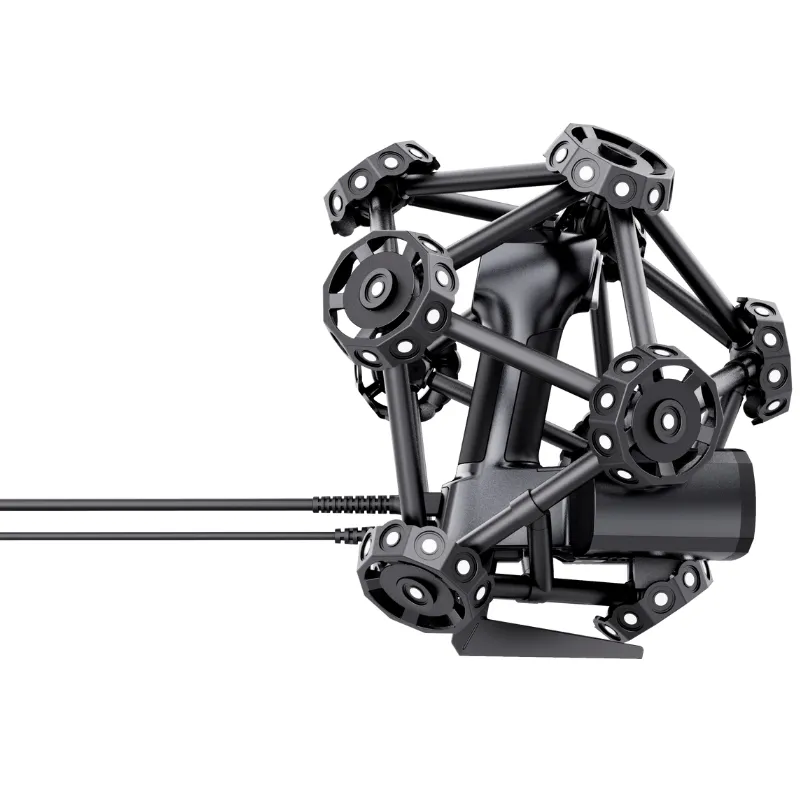

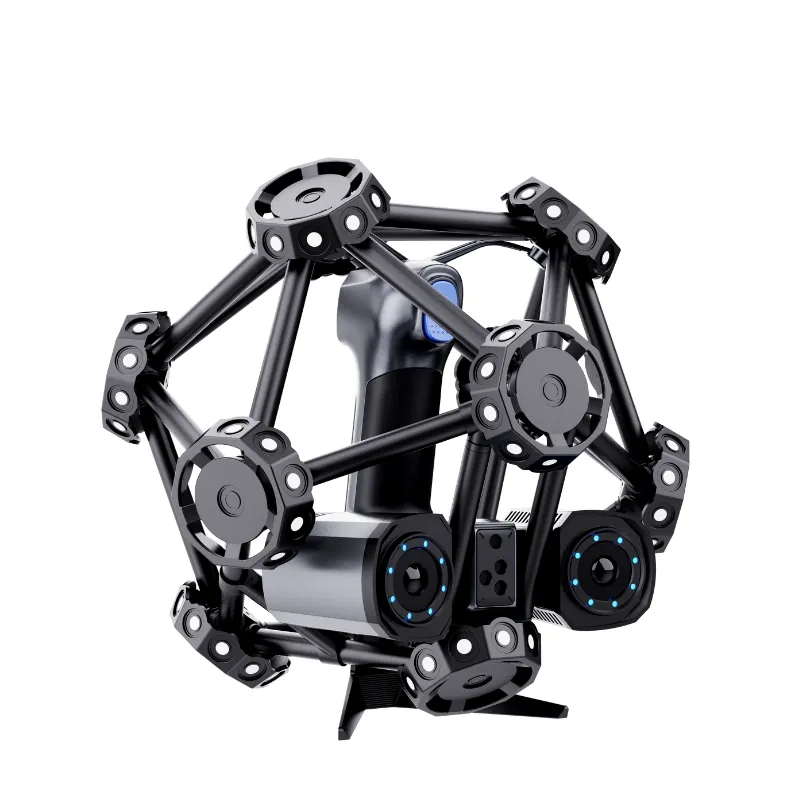

The FreeTrak system dynamically tracks the TE25 scanner via built-in tracking targets, removing the need for manual marker placement on scanned objects.
Superior Precision
The FreeScan Trak Pro2 provides metrology-grade scanning performance with outstanding accuracy down to 0.023 mm.
Triple Laser Line Mode Options
Equipped with 50 crossed laser lines for fast, high-precision scanning, 7 parallel laser lines for ultra-detailed partial HD scans, and a single laser line designed for deep hole inspection with a 1:4 diameter-to-depth ratio.
Extended Measurement Range
The FreeScan Trak Pro2 offers a broad, scalable tracking range, enabling accurate measurement of large volumes and complex surfaces—no leapfrogging needed and no loss in precision.

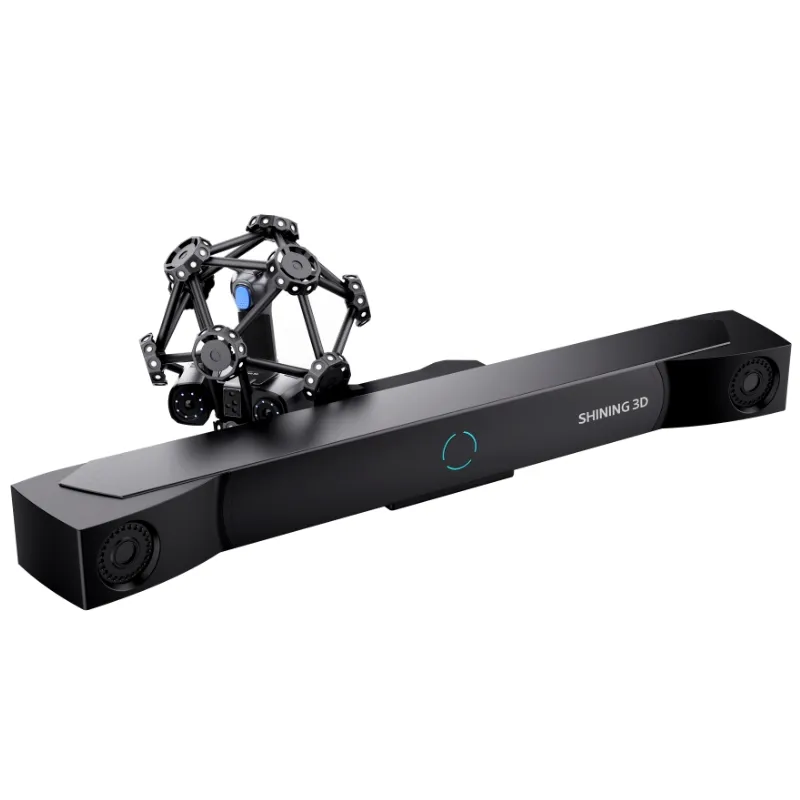

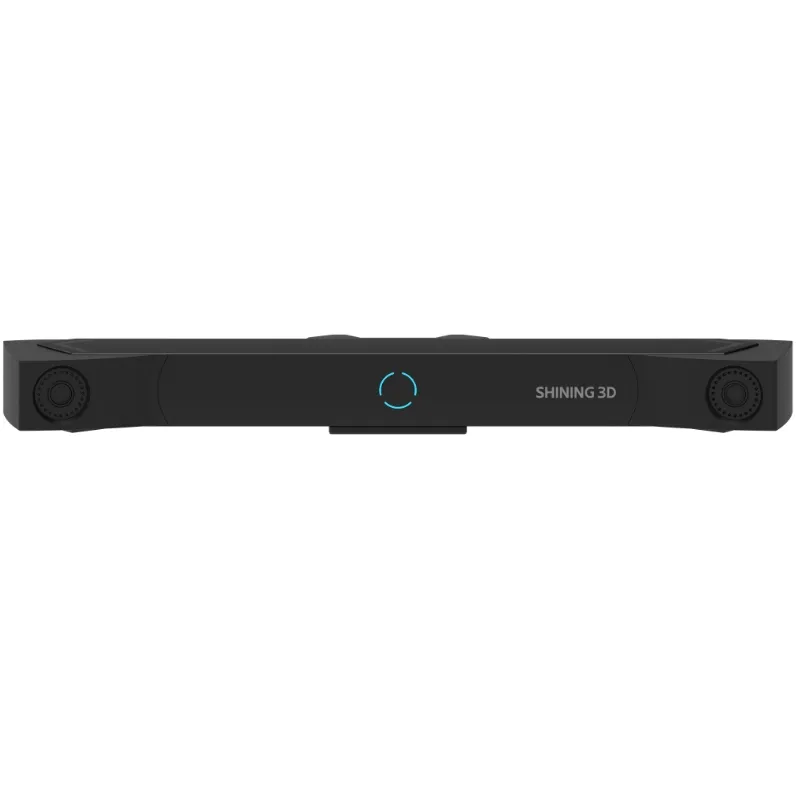

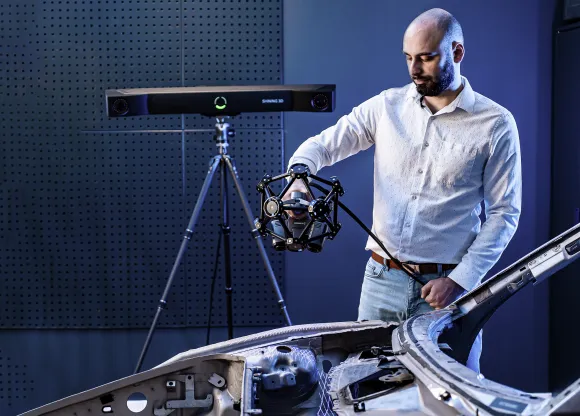

Effortless Markerless Tracking, The FreeTrak system automatically tracks the TE25 scanner via its integrated tracking markers, removing the need for manual marker placement. This streamlined, marker-free workflow significantly enhances efficiency and simplifies the 3D scanning process.
Metrology-Grade Accuracy up to 0.023 mm*, The FreeScan Trak Pro2 delivers high-precision scanning with accuracy reaching 0.023 mm, ensuring reliable and repeatable results for professional inspection tasks.
*Tested according to VDI/VDE 2634 standards. Accuracy verified using traceable length artifacts and markers, measured at various positions and orientations within the working volume in an ISO/IEC 17025:2017-certified lab under controlled conditions (20 ± 0.5°C, 40–60% RH).
Wide and Scalable Tracking Range, The FreeScan Trak Pro2 features an expansive, flexible tracking range that enables precise measurement of various volumes and surfaces—maintaining high accuracy without the need for traditional leapfrogging techniques.
Seamless Mode Switching
Easily toggle between the two scanning modes to suit your specific needs and object types. This dual-mode functionality provides the versatility to handle a broad range of applications and surface materials with precision.
At SITML, we go beyond hardware by offering tailored solutions, nationwide support, and a dedication to your success. From user-friendly tools to precision-calibrated accuracy, we’re committed to elevating your workflow.

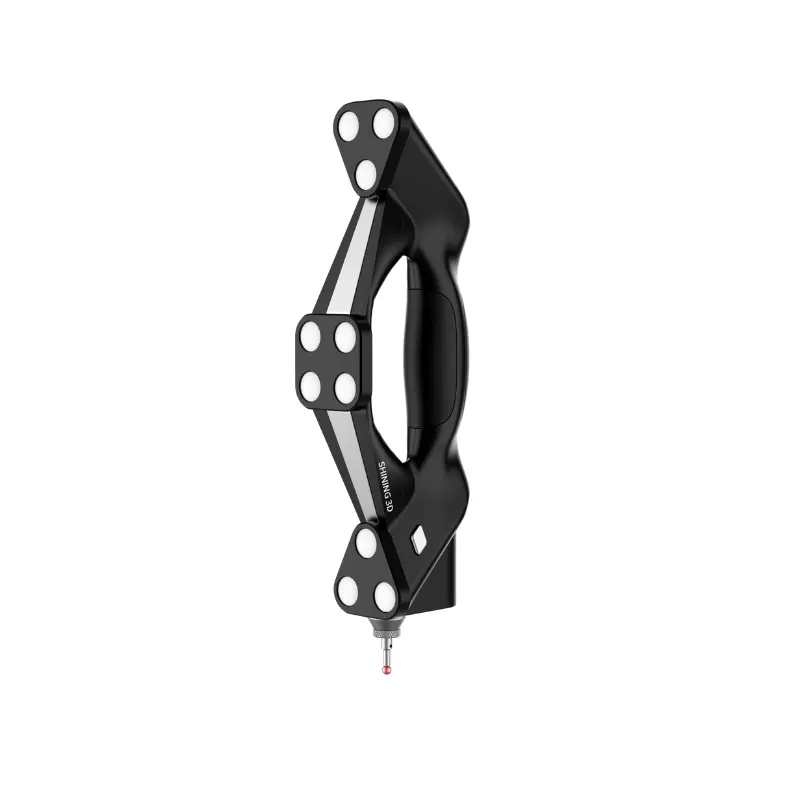

FreeProbe (Optional)
When targeted data is required, the Probe allows you to capture geometric features instantly—perfect for quick inspections or measurements without the need to generate full mesh data.
What You Can Achieve with Our Scanners
Boost your productivity and achieve outstanding results by incorporating our scanners seamlessly into your workflow.
Robust & Intuitive Software
The FreeScan Trak software supports marker-free track scanning, laser scanning, and optional contact scanning with the FreeProbe for enhanced versatility.
The software provides real-time mesh data visualization during scanning, eliminating the need for post-processing point cloud meshing and streamlining your workflow.
Easily adjust the resolution on the fly during scanning without restarting your project, ensuring a seamless and efficient scanning process.
Verify the correct working distance by monitoring the laser line color on the scanned object. A built-in quality indicator also identifies areas with insufficient data for improved scanning accuracy.
| High-speed scanning |
50 laser lines |
| Deep pockets |
1 single line |
| Volumetric accuracy |
9.6 m³: 0.062 mm; 17.6 m³: 0.072 mm |
| Max. FOV |
650 x 580 mm |
| Point distance |
0.01 ~ 10 mm |
| Certifications |
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, TISAX |
| Detailed Scan | 7 laser lines |
| Accuracy | 0.023 mm |
| Volumetric accuracy | (w/photogrammetry) 0.044 + 0.012 mm/m |
| Scan Speed | Up to 3,070,000 points/s |
| FreeProbe (optional) accuracy | 0.025 mm |
| Accuracy Certification | VDl/VDE 2634 Part 3 (ISO 17025 certified lab) |
