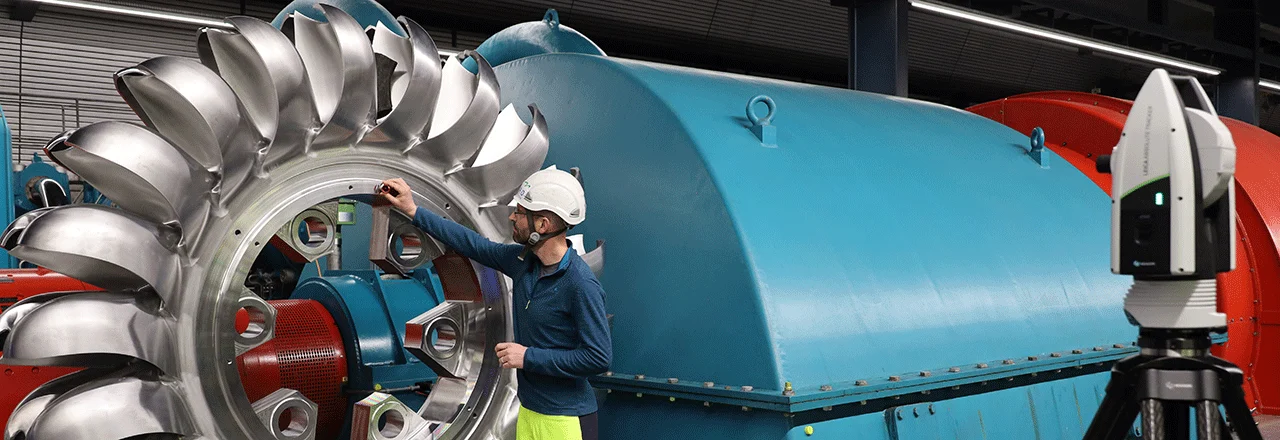

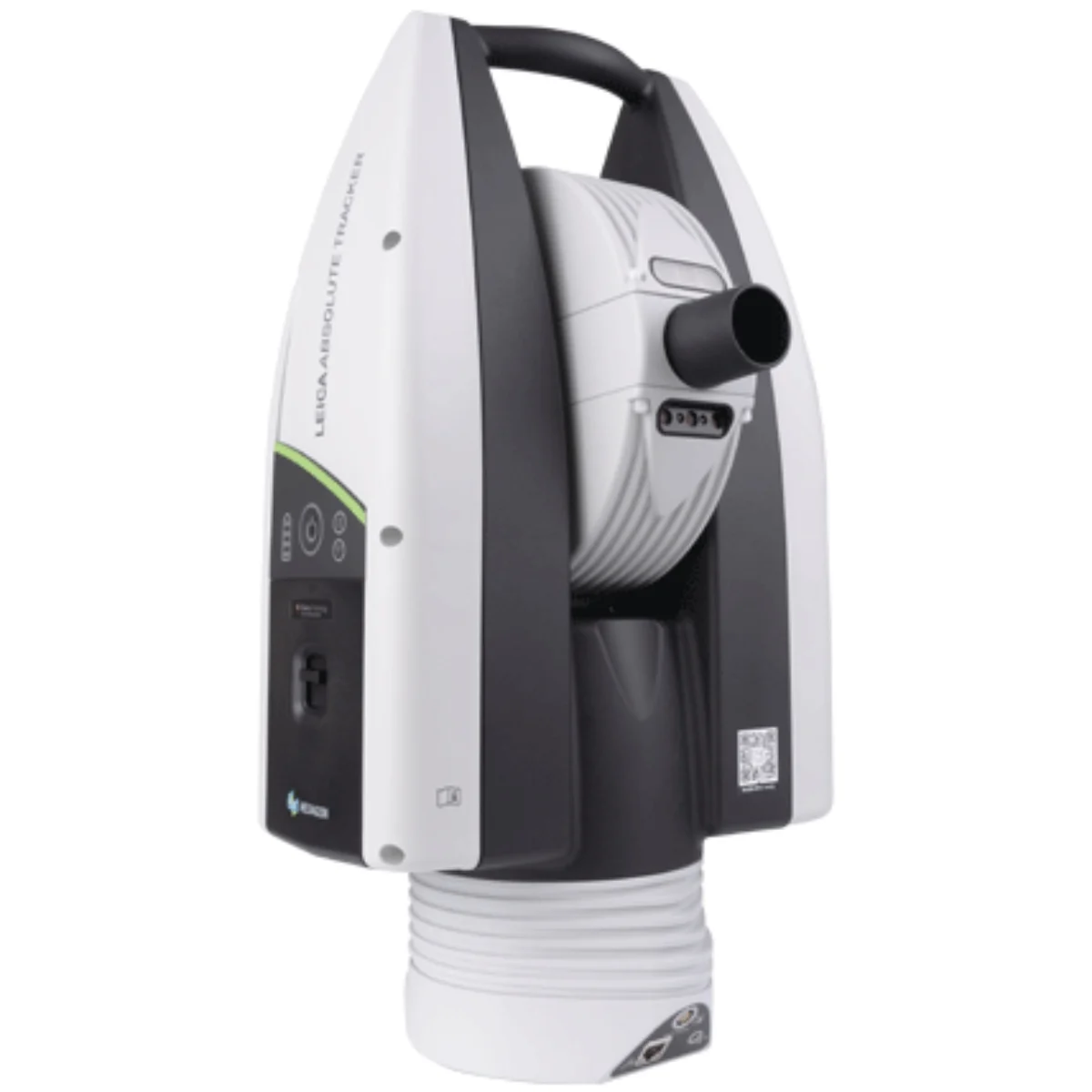

The Leica Absolute Tracker AT500 is a portable large-volume metrology solution designed for high-accuracy measurement and inspection of large parts and assemblies. Built for shop-floor and production environments, it delivers fast setup, stable performance, and reliable precision across extended measurement ranges. Ideal for manufacturers in Saudi Arabia requiring efficient dimensional control, alignment, and quality verification workflows.
Measure anywhere with enhanced productivity
The Leica Absolute Tracker AT500 simplifies large-volume measurement while maintaining full portability, productivity, and durability. Designed for fast deployment, it transitions from transport case to full-scale measurement in minutes through a streamlined setup process. With IP54 protection and a wide operating temperature range, the AT500 performs reliably in demanding shop-floor and industrial environments.
Supporting reflector-based measurements at distances of up to 160 meters and integrated 6DoF probing capabilities, the AT500 is engineered to handle complex manufacturing, inspection, and assembly tasks across large structures, regardless of location or scale.
The Leica Absolute Tracker AT500 is designed for maximum ease of use, enabling measurement immediately after unpacking and powering on. Its fully integrated design eliminates the need for external cables, with an onboard controller and internal battery system supporting completely wireless operation. No manual levelling or reflector initialization is required, reducing setup time and simplifying deployment in production environments.
Powered by two IATA-compliant, hot-swappable batteries, the AT500 delivers up to six hours of continuous operation, supporting uninterrupted measurement workflows. High-speed data acquisition at 100 Hz enables significantly faster point collection compared to previous tracker generations, while the latest PowerLock automatic targeting technology maintains consistent tracking and minimizes measurement interruptions. The AT500 Connect App further enhances usability by allowing network configuration and levelling to be managed directly from a smartphone or tablet, supporting both Android and iOS devices.
The B-Probeplus introduces an enhanced probing experience for entry-level applications by enabling fully wireless measurement with real-time user feedback. It supports a wide acceptance angle of up to 16 degrees in all directions and operates at distances of up to 12 meters from the tracker, allowing flexible access to hard-to-reach features during inspection and alignment tasks.
The updated probe design includes reinforced, more durable buttons and an extended battery life of up to six hours to support continuous operation. Probing measurement accuracy is specified in accordance with ISO 10360-10, ensuring reliable and repeatable results in industrial measurement environments.
The Leica Absolute Tracker AT500 is engineered for reliable operation across challenging industrial conditions. With IP54-rated protection and a working temperature range from -15°C to +50°C, it supports accurate measurement in environments ranging from outdoor installations to high-temperature production facilities.
Its all-in-one architecture, featuring a fully integrated controller within the tracker body, enhances portability and simplifies transport and deployment. This integrated design enables efficient large-volume measurement wherever it is required, without added system complexity.
Features and Benefits
All-in-One Integrated Design
The AT500 integrates all essential components into a single, compact system. A battery-powered onboard controller, built-in wireless connectivity, environmental sensing, long-duration battery operation, HD overview camera, and an ergonomic carry handle are combined into one self-contained solution, reducing setup complexity and improving portability.
Single-Box Probing System
A single transport case houses the lightweight tracker sensor, probing solution, and IR remote, providing a streamlined and portable probing configuration. Multiple transport case options are available, allowing users to adapt the system to different workflow and mobility requirements.
Smart Connectivity
Integrated WiFi with true access-point capability enables straightforward single-user operation. The system can be configured quickly through a simple PC connection, while also supporting remote control for flexible measurement workflows.
Bluetooth Control
The AT500 Connect App allows system configuration and adjustments directly via Bluetooth from a smartphone or tablet. The application supports both Android and iOS devices, enabling fast and convenient setup without physical connections.
PowerLock
PowerLock technology automatically reacquires targets after line-of-sight interruptions within a wide field of view. This process requires no manual user input, helping maintain measurement continuity and reduce downtime.
Continuous Measurement
The system supports continuous distance and time-based measurement with a sampling rate of up to 100 Hz, enabling efficient data capture for dynamic inspection and alignment tasks.
Entry-Level Probing
The Leica B-Probeplus provides a fully wireless, battery-powered probing solution. It supports configurable hidden-point probing, allowing accurate measurement of features that are difficult to access.
IP54 Certification
The sealed unit is certified to IP54 standards, providing protection against dust ingress and environmental contaminants. This ensures reliable performance in demanding industrial and shop-floor conditions.
MeteoStation
An integrated environmental monitoring unit continuously tracks temperature, pressure, and humidity. These measurements are used to compensate for environmental variations, supporting consistent and accurate measurement results.
Orient-to-Gravity
This function allows the measurement coordinate system to align the Z-axis with gravity, simplifying levelling, alignment, and vertical measurement applications.
Battery Power
Independent hot-swappable batteries enable completely cable-free operation. Batteries can be replaced during use, supporting uninterrupted workflows and extended operating time.
Operating Temperature
The AT500 is designed to operate reliably across a wide temperature range from -15°C to +50°C, supporting use in both outdoor and high-temperature industrial environments.
Measurement Volume
The system supports an ultra-large measurement volume with a diameter of up to 320 metres, while maintaining a minimum measurement distance of less than 0.8 metres for close-range tasks.
Hexagon Guarantee
The AT500 is supplied with a full 24-month factory warranty and a guaranteed ten-year serviceability commitment, supporting long-term investment protection.
Real-Time Asset Management
The AT500 integrates seamlessly with Metrology Asset Manager, enabling real-time monitoring of system usage and performance. Data is collected continuously and presented through a centralized dashboard, supporting asset optimization, predictive maintenance, and smart manufacturing initiatives aligned with Industry 4.0 strategies.
