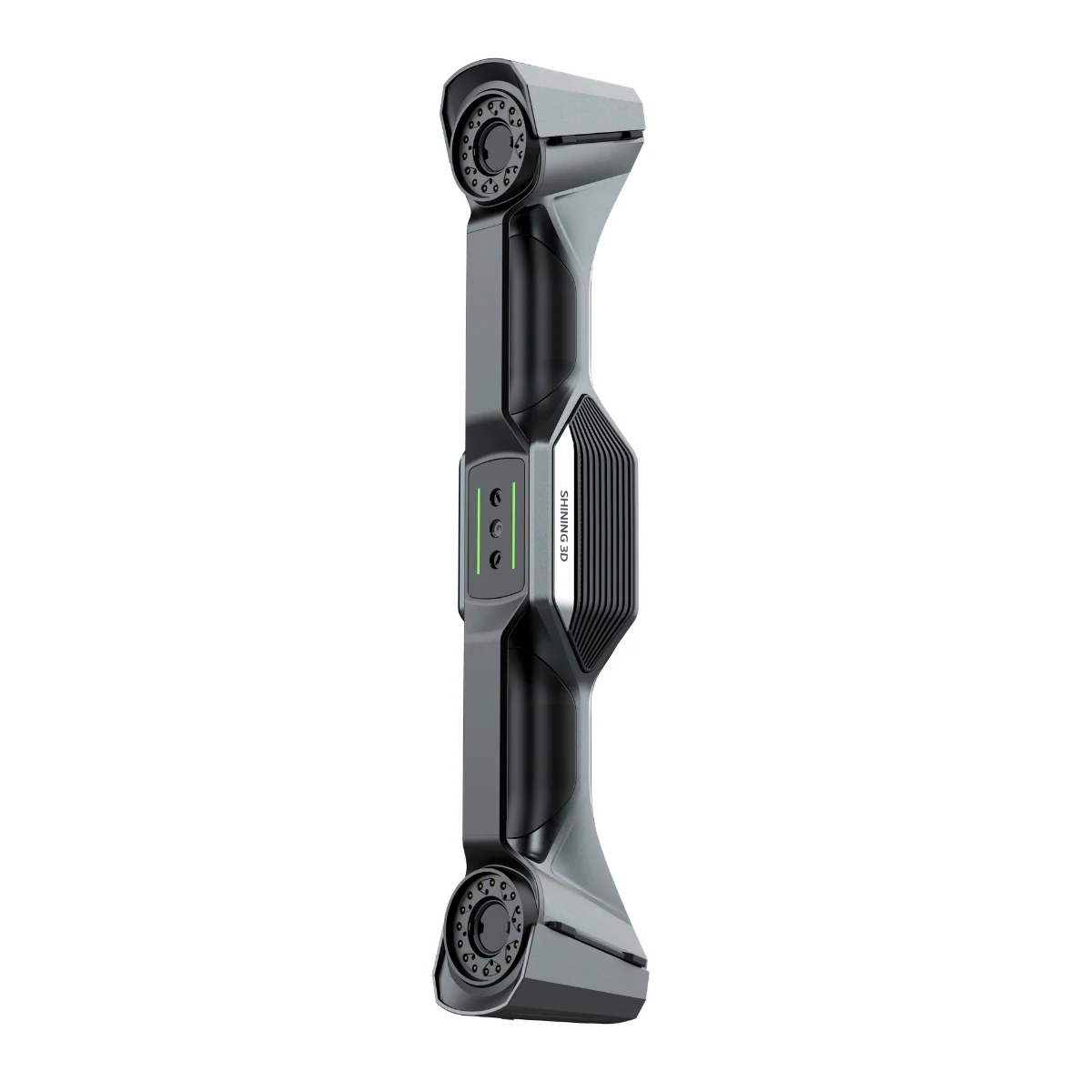

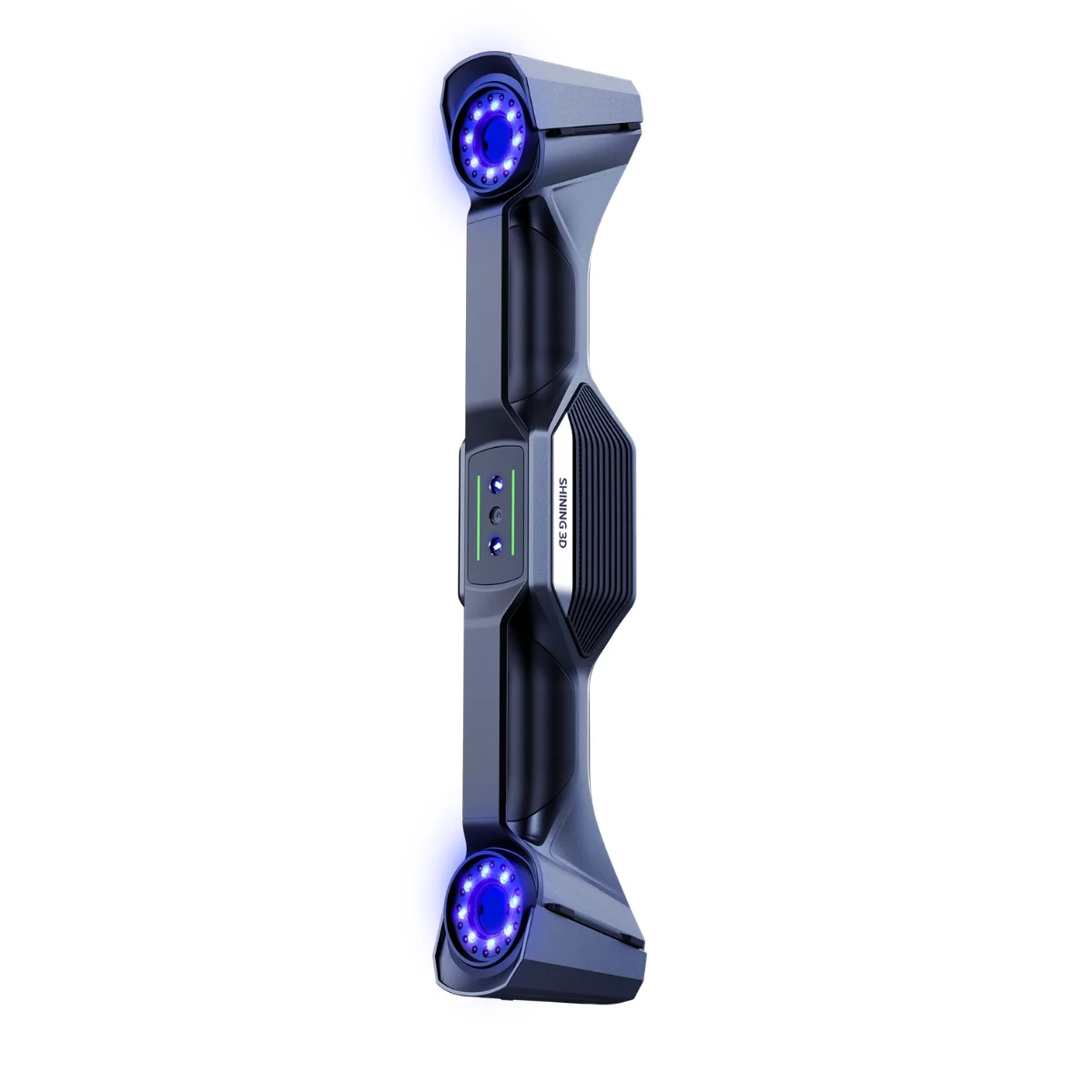

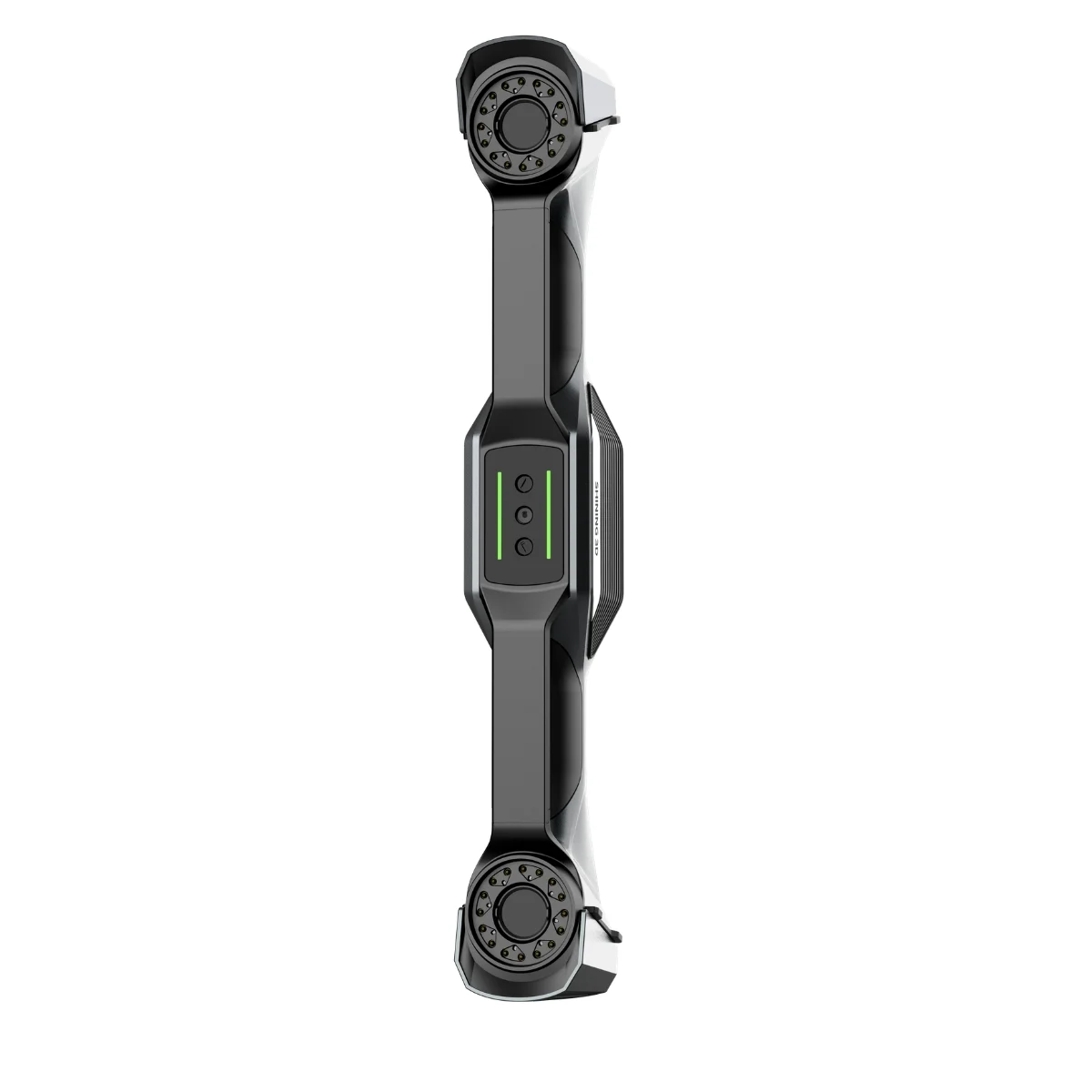

The FreeScan UE Nova Series from SHINING 3D is a wireless handheld 3D laser scanner designed for fast, accurate measurement of large industrial parts. Featuring an extra-large field of view up to 2,600 × 2,200 mm, integrated video photogrammetry and flexible scanning ranges, it supports dimensional inspection, quality control and reverse engineering.
Wiress 3D Laser Scanning for Large Industrial Part
- Extra-Large Field of View: Up to 2.6 × 2.2 m
- Ultra-Fast Scanning: Up to 5.7 Million Points/s (Nova+)
- Integrated Video Photogrammetry (VPG)
- Wireless Operation with Hot-Swappable Batteries

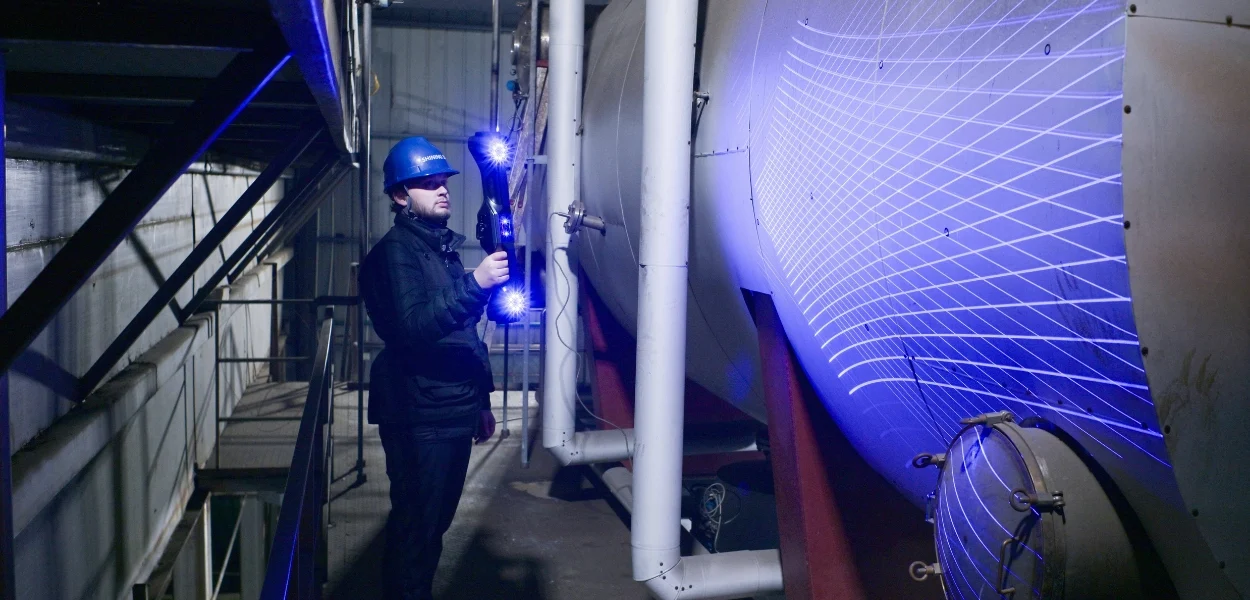

Wireless Metrology 3D Scanner for Greater Reach
The FreeScan UE Nova Series combines an extra-large field of view with wireless portability for efficient 3D scanning of large industrial components. Designed to capture extensive surfaces with greater flexibility, this handheld 3D laser scanner streamlines measurement workflows and enhances productivity in demanding industrial environments.
Large-Scale 3D Scanning Coverage
The FreeScan UE Nova Series offers an extra-large field of view of up to 2.6 × 2.2 m and a maximum scanning distance of 2.6 m, enabling efficient 3D data capture of large industrial parts, machinery and equipment.
Ultra-Fast Laser Scanning
Equipped with 50 or 62 laser lines, depending on the model, the FreeScan UE Nova Series delivers rapid 3D data acquisition, reducing scanning time for large components and industrial inspection workflows.
Integrated Video Photogrammetry (VPG)
SHINING 3D’s patented Video Photogrammetry (VPG) technology enhances volumetric measurement accuracy without requiring coded markers, supporting reliable dimensional inspection of large industrial components.
Flexible Scanning Range
Three selectable working ranges, Near, Standard and Far, allow operators to adjust the scanning field of view for detailed measurements in confined spaces or wide-area scanning of large objects.

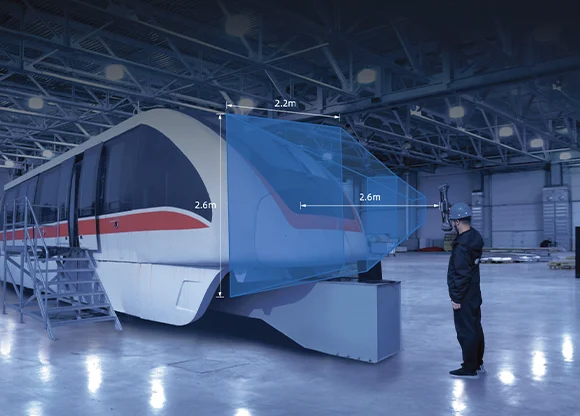

Wide-Range Laser Scanning for Large Industrial Parts
The FreeScan UE Nova Series delivers efficient large-scale 3D scanning with an extra-large field of view of up to 2.6 × 2.2 m and a maximum scanning distance of 2.6 m. Equipped with 50 or 62 laser lines, depending on the model, this handheld 3D laser scanner enables rapid data capture of large industrial components, reducing scanning time for inspection and reverse engineering applications.

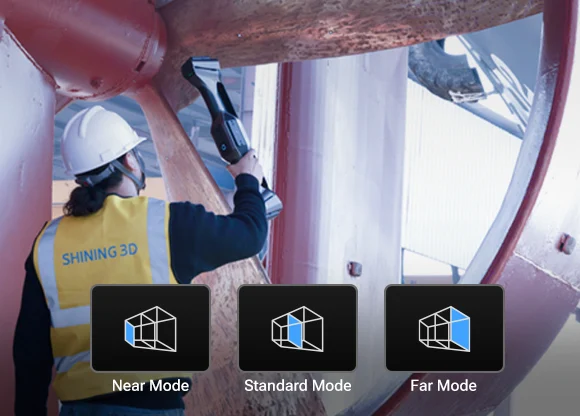

Flexible Field of View
The FreeScan UE Nova Series offers three selectable working ranges, allowing operators to adjust the field of view for different industrial 3D scanning applications and on-site conditions.
- Near Mode (300–800 mm): Ideal for detailed scanning in confined spaces, capturing intricate features and complex geometries.
- Standard Mode (600–1,500 mm): Suitable for general-purpose 3D scanning, balancing scanning coverage and detail for industrial measurement tasks.
- Far Mode (1,200–2,600 mm): Designed for large-scale industrial components, providing wider scanning coverage for efficient data capture.

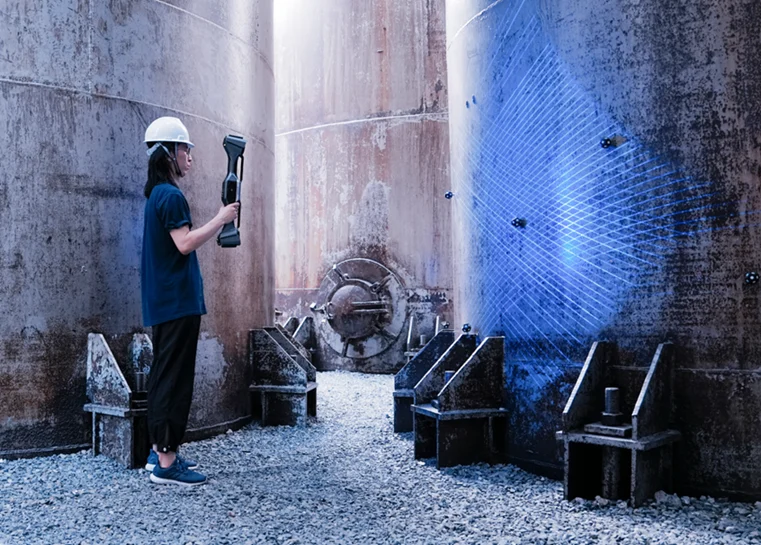

Free to Scan, Built to Perform
- Integrated Wireless Modules: Enable stable, high-speed data transmission for efficient wireless 3D scanning in demanding industrial environments.
- Hot-Swappable Batteries: Detachable, hot-swappable batteries support continuous scanning during extended projects and on-site operations.
- Built-In Computing Modules: Provide onboard data processing for efficient 3D scanning workflows, enhancing portability and productivity in the field.

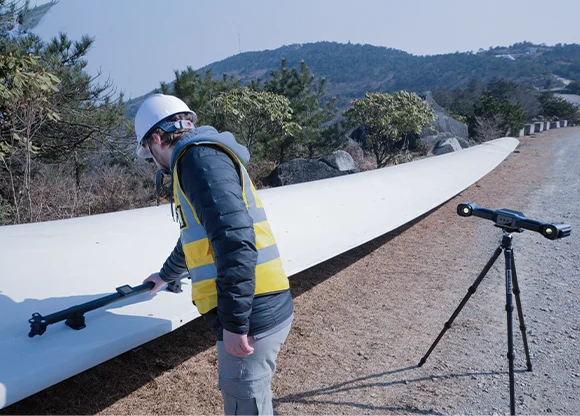

Video Photogrammetry (VPG)
The FreeScan UE Nova Series integrates SHINING 3D’s patented Video Photogrammetry (VPG) technology without requiring coded markers. Combined with a calibration rod for real-time marker verification, it delivers volumetric accuracy of 0.072 mm + 0.012 mm/m, supporting precise and efficient 3D measurement of large industrial components.

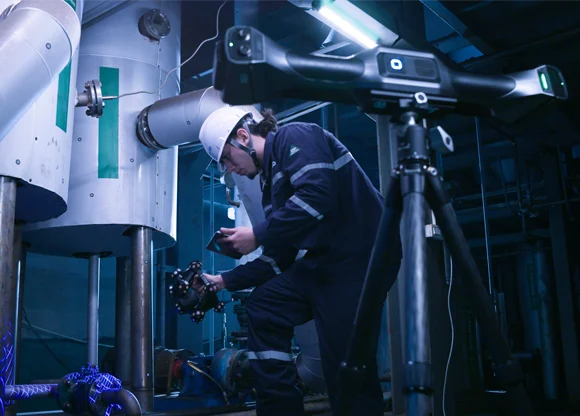

Expand Your Capabilities with FreeScan Trak Nova Series
Take industrial 3D measurement further with the FreeScan Trak Nova Series, combining the FreeScan UE Nova handheld 3D laser scanner with dynamic optical tracking for accurate and flexible measurement of complex industrial components.
- Dynamic Tracking: Real-time optical tracking enables precise 3D scanning in confined spaces and challenging industrial environments.
- Marker-Free Scanning: Capture complex surfaces without attaching reference markers to the scanned object during dynamic tracking.

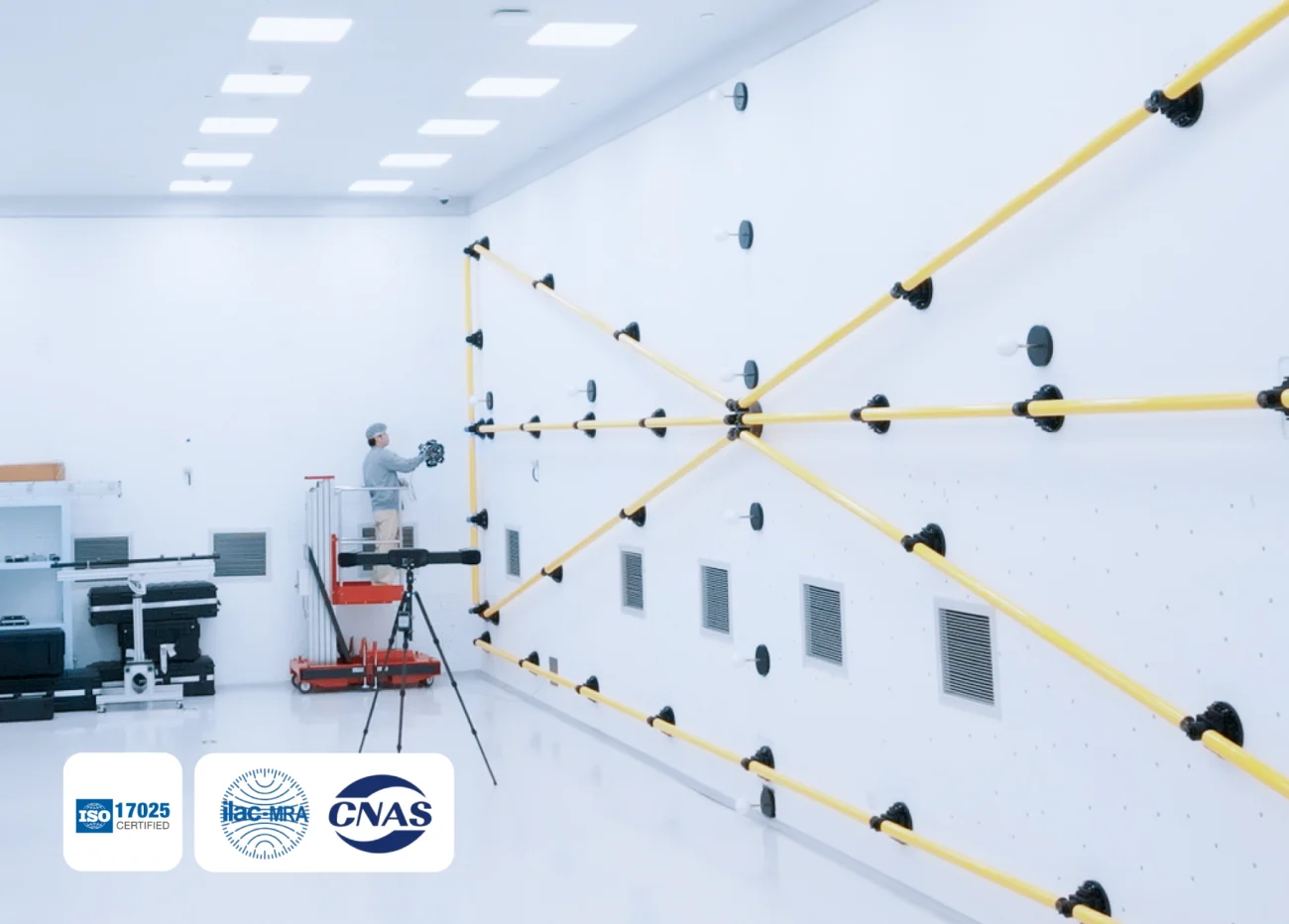

Certified Metrology Accuracy
- Verified Standards: Acceptance testing based on VDI/VDE 2634 Part 3 and ISO 10360 standards ensures reliable metrology performance for industrial 3D scanning and inspection.
- Accredited Laboratory: The FreeScan UE Nova Series is tested and calibrated in SHINING 3D’s ISO/IEC 17025-accredited Accuracy Laboratory.
- Measurement Traceability: Calibration certificates and inspection reports support traceable 3D measurements for industrial quality control and dimensional inspection.

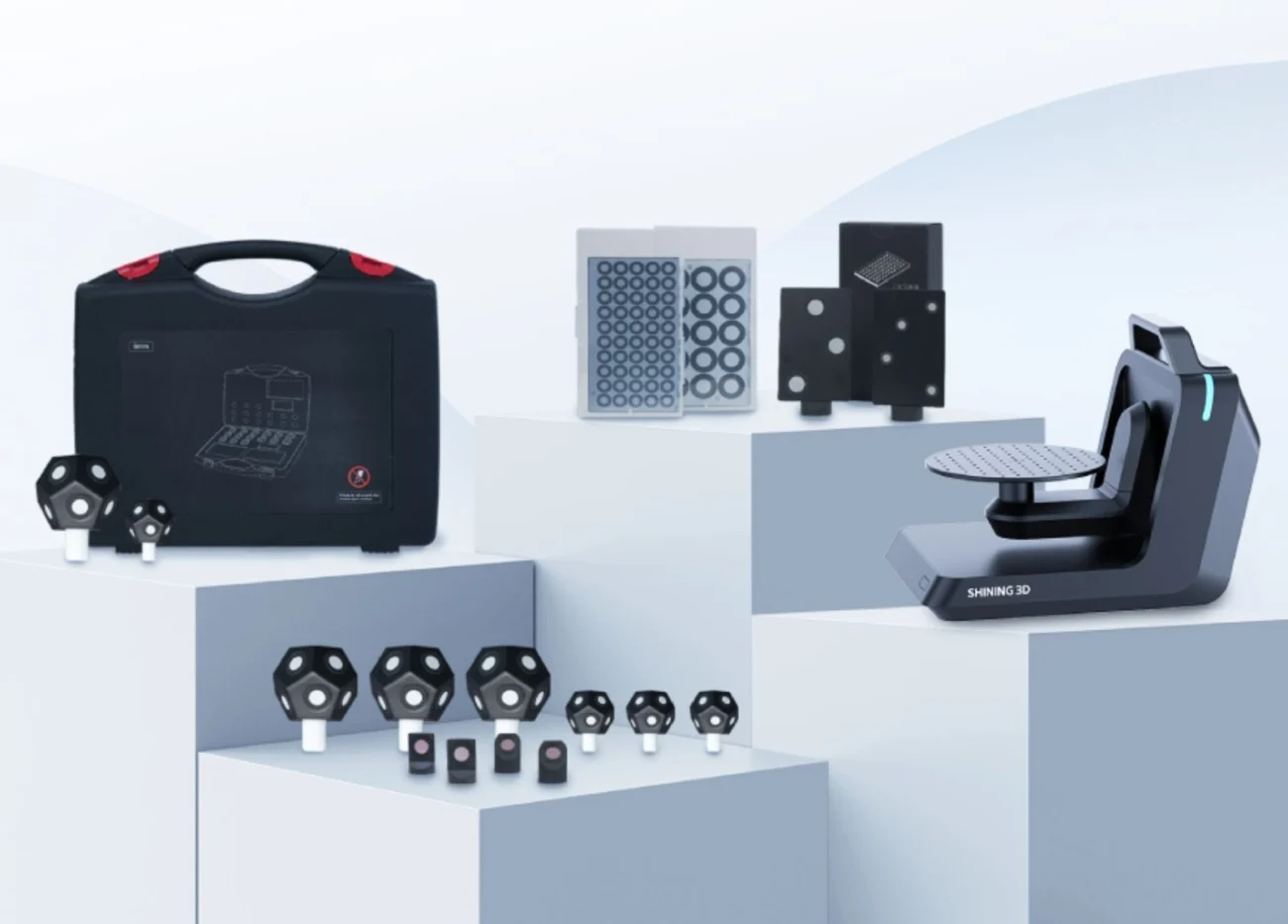

Metrology Kit
The SHINING 3D Metrology Kit includes magnetic marker balls and positioning accessories designed for handheld 3D laser scanners. These reusable tools simplify marker placement, improve scanning stability and support efficient 3D measurement workflows for industrial inspection and reverse engineering.
Product Guidance and Support
SITML helps customers in Saudi Arabia explore suitable SHINING 3D metrology solutions for their industrial measurement needs. For the FreeScan UE Nova Series, our team can assist with product enquiries, application guidance, software compatibility and information about available technical support options.
Industrial Applications of FreeScan UE Nova Series
The FreeScan UE Nova Series supports industrial 3D scanning, dimensional inspection and reverse engineering across manufacturing, transportation, energy and automotive industries. Its wide scanning coverage, wireless operation and material adaptability enable efficient measurement of large and complex components.
FreeScan Trak Software
Intelligent Resolution
Automatically adjusts 3D mesh resolution based on surface curvature, capturing fine details and complex geometries while optimizing scanning data.
SHINING3D Inspect
Integrates with SHINING3D Inspect software to streamline dimensional inspection, measurement analysis and reporting through flexible, customizable workflows.
Data Quality Indicator
Provides visual feedback on reference marker quality during photogrammetry and scanning data completeness, helping operators identify areas requiring additional measurements.
Material Adaptability
Supports 3D scanning of various surface types, including standard, black and reflective materials, enabling versatile industrial inspection and reverse engineering applications.
For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
FreeScan UE Nova | Wireless 3D Laser Scanning for Large Industrial Parts
Discover the FreeScan UE Nova handheld 3D laser scanner in action, featuring wireless operation and an extra-large field of view up to 2.6 × 2.2 m for fast, efficient scanning of large industrial components.
For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
FreeScan UE Nova | Truck Bed Scanning and Reverse Engineering
See how the FreeScan UE Nova captures 3D data from large truck beds using wide-range laser scanning, supporting reverse engineering, dimensional measurement and industrial component redesign workflows.
