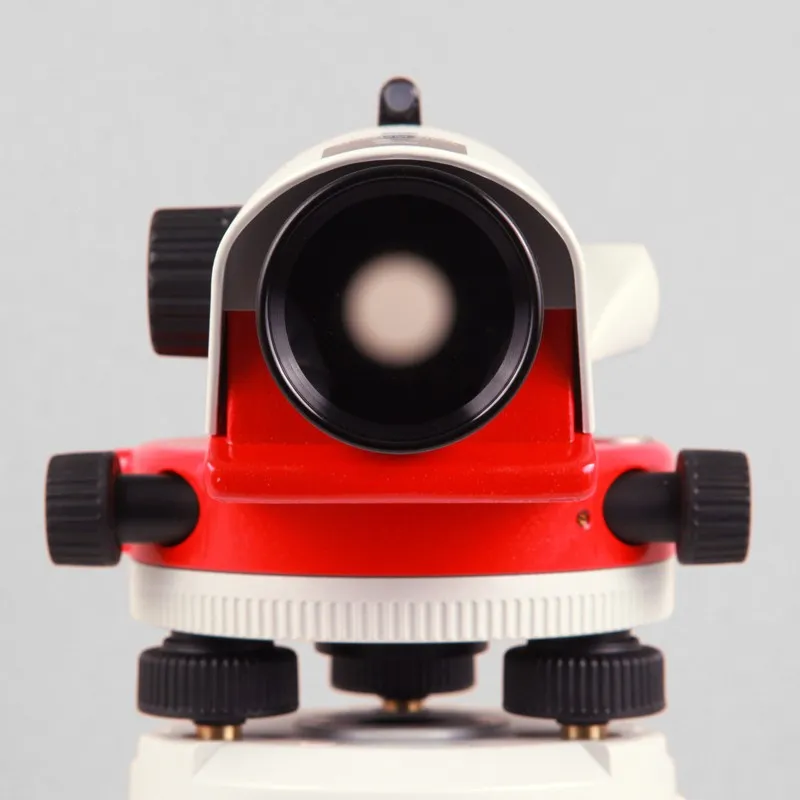

Leica NA720 and FS23 Tripod

The Leica NA720 automatic level is extremely popular within the construction industry being known for its increased robustness and precision when working in tough environments.

Onsite hazards such as falling to ground from a low height, exposure to water and vibrations caused by heavy machinery are no problem for the robust Leica NA720. With no need to re-adjust this level carries on working and measuring precisely, day in and day out.

The horizontal circle and circular bubble are easily read, both being positioned next to the telescope and the external sight allowing for easy targeting. The upright image is clearly shown and the double sided endless drives provide fast targeting. The NA720 comes with one of the finest optics allowing for short measuring distances, measuring in adverse light conditions and accurate aiming.

The increased tough and robust features of the NA720 include waterproof and protection against dust. The tight seals and gas filled telescope give protection against hazards should the instrument be dropped in to water.

Leica NA720 features include:

  • 20x magnification
  • Upright telescope image
  • Gas filled telescope
  • 30mm objective diameter
  • 50cm short focus distance
  • 360 degree / 400 gon selectable angle measurement
  • 10’ / 2 mm circular bubble
  • Endless Horizontal Drive
  • 2.5mm double run accuracy
  • ± 15’ working range
  • Water resistant
  • –20 to +50 °C operating temperature
  • 1.6kg total weight
  • 19cm x 12cm x 12cm

FS23 Aluminium Tripod

Robust construction. With shoulder carrying strap. Diameter of head: 158mm. Length: 1.05m. Extended length 1.7m. Weight: 5.1kg.

Includes:

  • Leica NA720 Automatic Level
  • FS23 Aluminium Tripod
  • Carry Case
  • User Manual
SKU: Leica NA720 and FS23 Tripod Offer Category:

Description

Technical Data
NA720 NA724 NA728 NA730
Accuracy
Per km double run 2.5 mm 2 mm 1.5 mm 1.2 mm
Single measurement – Target distance 30m 1.5 mm 1.2 mm 1 mm 0.8 mm
Compensator
Setting accuracy < 0.5" < 0,5" < 0.3" < 0.3"
Working range ± 15' ± 15' ± 15' ± 15'
Environmental
Impact standard ISO 9022-33-5 ISO 9022-33-5 ISO 9022-33-5 ISO 9022-33-5
Resistance to water and dust ingress IP57 IP57 IP57 IP57
Temperature Range
- Operation -20° to +50°C -20° to +50°C -20° to +50°C -20° to +50°C
- Storage -40° to +70°C -40° to +70°C -40° to +70°C -40° to +70°C
Dimensions & Weight
Dimensions 19x12x12 cm 19x12x12 cm 21x12x12 cm 21x12x12 cm
Weight 1,6 kg 1,6 kg/TD> 1,7 kg 1,7 kg
