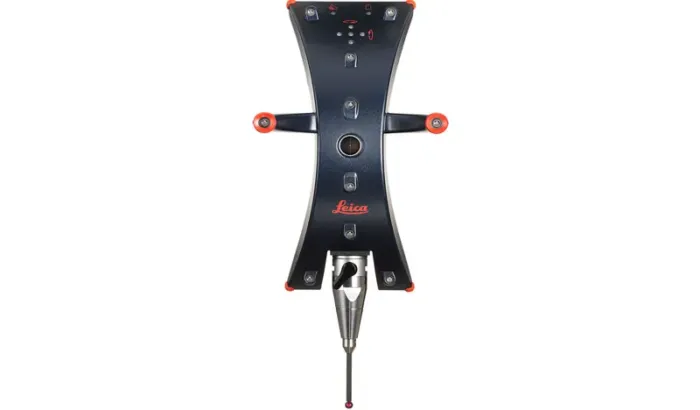

Leica T-Probe

The Leica T-Probe is a portable wireless probing system for Leica Absolute Tracker AT960 systems. Its lightweight design and configurable function buttons support measurement in small and large volumes with minimal preparation time. Designed for hidden and hard-to-reach points, the T-Probe provides a measurement range of up to 30 meters in all directions.

Contact SITML for Leica T-Probe inquiries in Saudi Arabia.

SKU: Leica T-Probe Category: Leica Laser Tracker Probing Solutions

Description
Brand

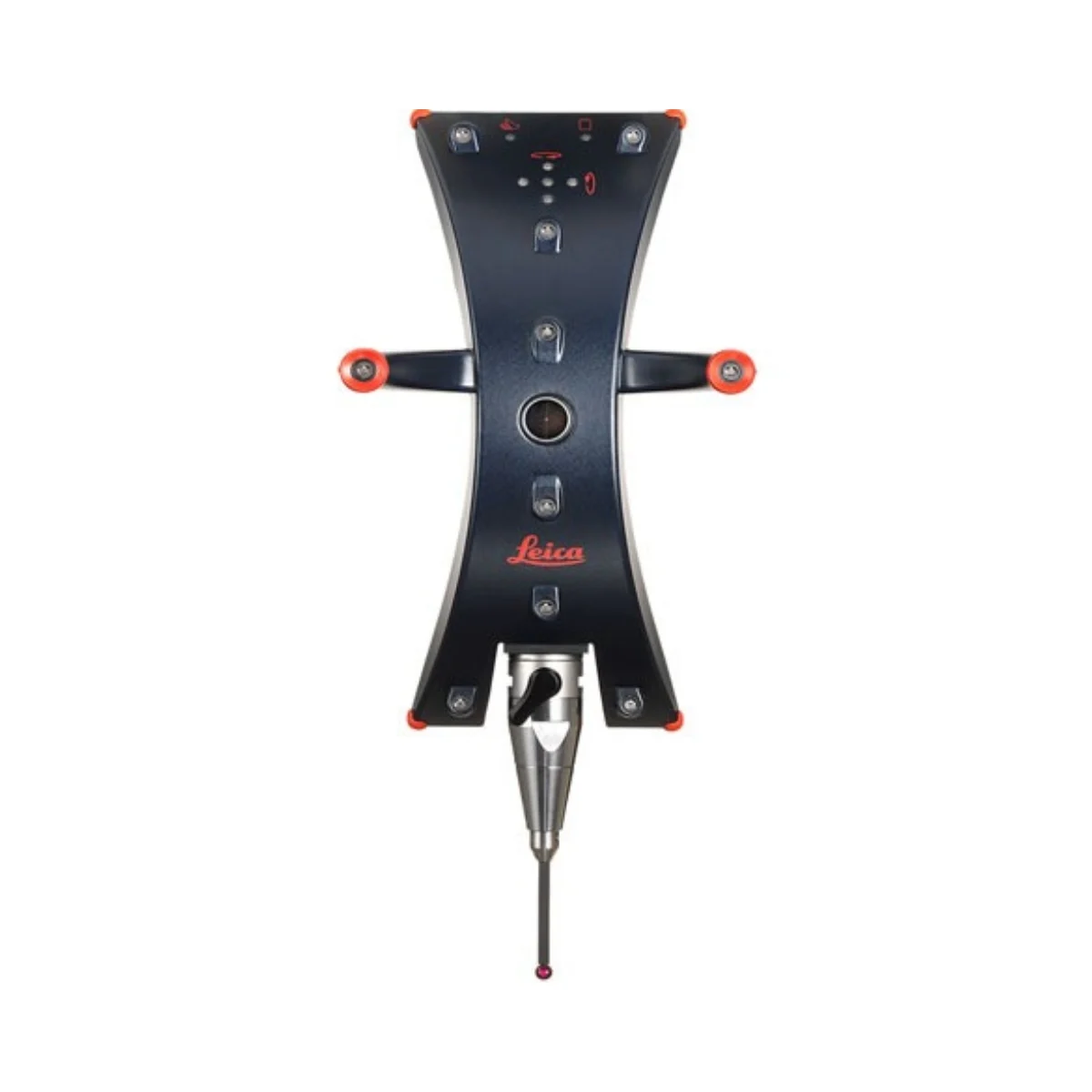

The Leica T-Probe is a walk-around, armless wireless device for probing hidden and hard-to-reach points. It can measure up to nine cars from a single setup with minimal preparation time, while increased accuracy, a tenfold increase in point acquisition rate and user-assignable multifunction buttons support efficient operation.

Compact, lightweight and easy to use, the Leica T-Probe provides more than six degrees of freedom for handheld measurement. With longer styli, it covers a typical measurement volume of up to 60 metres (196 feet) in diameter.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.

Leica T-Probe Features and Benefits

PowerLock: The laser beam moves to the user rather than requiring the user to move to the beam.
Compact design: Smaller, lighter and more convenient than comparable solutions.
Large armless measurement volume: Supports a typical measurement volume of up to 60 metres (196 feet) in diameter, reducing inspections by a minimum of 50%.
Wide acceptance angles: Provides pitch of ±45°, yaw of ±45° and roll of 360°.
Battery-powered operation: Enables wireless operation and increased productivity.
Extended battery runtime: A flexible sleep mode helps extend battery life.
Automated probe identification: Reduces the risk of operator errors.
Assignable multifunction buttons: Each button can be configured for individual application functions.
One-hand operation: Supports both left-handed and right-handed use.
Renishaw-compatible styli: Compatible with a wide range of styli, including 100 mm, 200 mm and longer options.
Visual feedback: Displays battery status, in-view and in-distance status, and process information.
Acoustic feedback: Provides audible process information.
Environmental-light resistance: Operation is insensitive to environmental light.
Point-rate output: Delivers 1,000 points per second.
Tracking speed: Supports tracking speeds greater than 1 metre per second.
Quick stylus exchange: A precise quick-release mechanism and automated stylus recognition allow styli to be changed without calibration.

*Typical measurement volume, diameter.
