Amberg Rail Tamping VMS 3000

The long-chord track survey system for demanding track works

Innovation of a proven principle for track works

  • Long chord method
  • Combined survey of track and lateral distance offsets in one run
  • Absolute accuracy 3 mm
  • Greatest operational flexibility – thanks to twin-trolley mode and tripod mode option
  • Integrated fixed-point measuring device
  • Cost savings of 70 % and more compared to manual / optical chord methods
  • Safe digital data handling – from initial data input to final transfer of correction data
  • Easy handling and flexible transportation

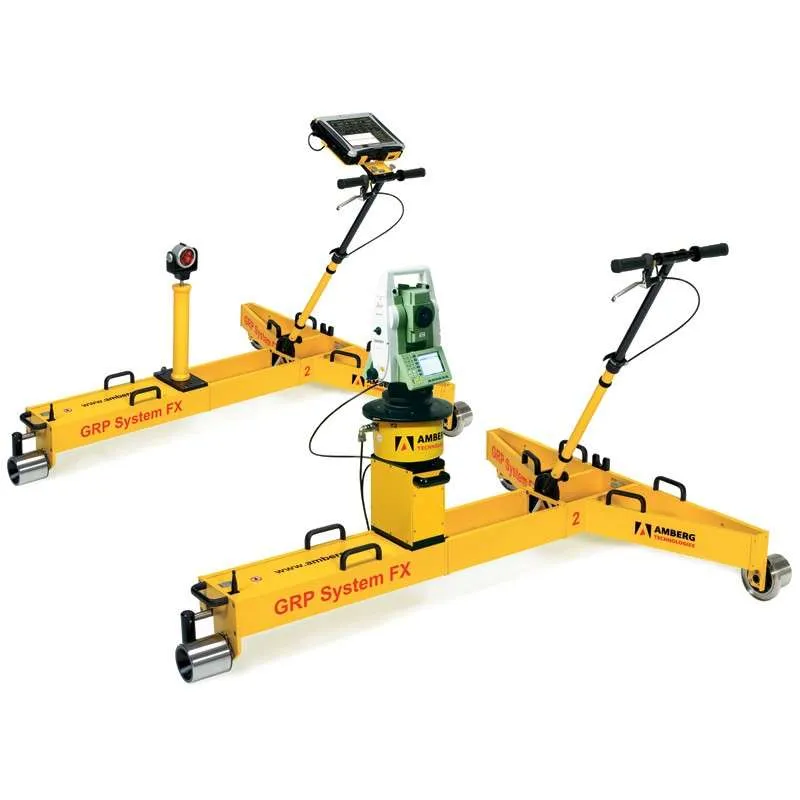

High performance for long track sections – twin-trolley mode

  • 1st Choice for measurements during track closures
  • Measuring performance of up to 2300 m/h
  • Length of reference chord of up to 250 m
  • Measuring system GRP 3000 consisting of precision sensors for gauge, superelevation and distance, Profiler 110 with prism and ruggedized notebook
  • Measuring system GRP TSC with automatic tripod for quick and easy self-levelling of tachymeter
  • LED lightening bar assuring safe work during night
  • User friendly handling specially designed for track workers

Greatest flexibility under demanding project conditions – tripod mode

  • Ideal for short track sections, e.g. turnouts, multi-track sections and projects with limited track access
  • Length of reference chord of up to 400 m
  • Measuring system GRP 3000
  • Tachymeter on tripod (with automatic self-levelling tribrach)
  • Flexible measuring mode – as twin-trolley mode – complemented by Flex-Stop functionality
  • Immediate measurement stop for rapid track clearance on demand – without impact on performance
  • Modular system design allows upgrading at any time e.g. 2nd trolley and other survey applications
SKU: Amberg Rail Tamping VMS 3000 Category:

Description

Project data management

Simple and quick project data management

  • Project setup and track data definition in only a few steps
  • Smart input of track data coming from track layout plan or other analogue document
  • Direct import of digital alignment data
  • Data base model assures immediate access to data input, management and reporting
  • Various interfaces for design data transfer
  • Integrated track point calculator

Measurement

Tamping surveying with highest efficiency

  • Easy measuring process – supported by big control screen for complete overview and control at any time
  • Track and lateral distance offset survey in one run
  • Real-time display of relevant track data
  • Kinematic measuring mode
  • Single point shots incl. code and note function for relevant track objects (e.g. synchro point, frog)
  • Control point measurement including tie-distance control
  • Different operation mode for optimal utilisation – during complete track possession or short access windows

Evaluation

Automatic evaluation and correction data calculation

  • Automatic linking and analysis of measuring sequences
  • Clear display of results of actual / nominal track comparison including tolerance levels, cross level, point and code info
  • Comprehensive evaluation tool for determination of correction values, lift and slue (shift), including ramping, check of possible ramp slope, maximum lift and slue correction
  • Actual / nominal fixed-point check
  • Comprehensive documentation and export of results including tamping data files
  • Lift & slue report for machine driver
