Amberg Rail IMS

Track surveying: faster, more efficient and more accurate

New measuring sensor: AMU 1030 (Amberg Measuring Unit)

  • Based on IMU technology (Inertial Measurement Unit)
  • Integrated microcomputer
  • Surveying of track alignment with AMU instead of a total station

Track surveying: faster, more efficient and more accurate. Amberg Technologies is expanding the well-established rail surveying system GRP System FX with the new Amberg IMS 1000 and Amberg IMS 3000 system configurations.

These configurations provide reliable and highly precise geometry information during the construction and maintenance of railway track systems – while achieving unparalleled productivity. IMS 1000 and IMS 3000 measure the inner and outer rail geometry of ballast tracks and slab tracks using a new, high-performance sensor – the Inertial Measurement Unit (IMU). Measuring 4000 metres of track per hour, the system’s performance is twice as high as of devices available on the market today. It furthermore ensures that the track will be measured reliably by providing a typical positional accuracy of ±1mm.

The IMS 1000 / IMS 3000 software processes the measurement data, analyses the quality of the track and reports the deviations to a design centreline. Correction data for tamping machines can also be generated directly. Advantage for the system’s users: the greater productivity and accuracy during track measurement reduces costs, enables efficient track maintenance and thus contributes significantly to the quality and safety of railway lines.

SKU: Amberg Rail IMS Category:

Description

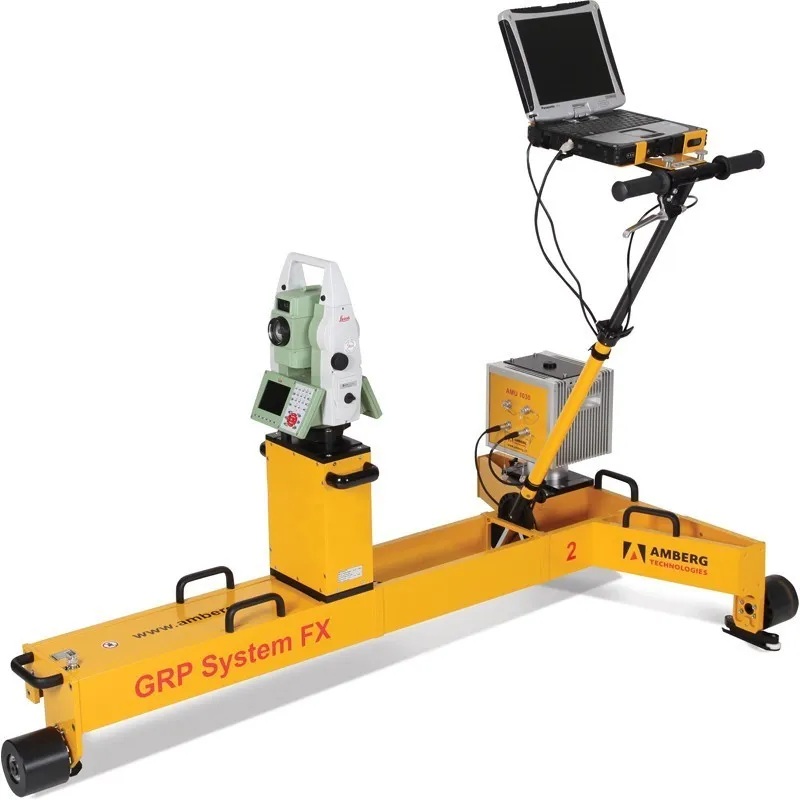

Amberg IMS 1000

  • GRP System FX basic measurement system
  • AMU 1030 sensor
  • Leica total station (TS15/30/50, MS50, TPS1200)

Main features

  • Unrivalled measuring performance (up to 4 km/h)
  • Unique kinematic accuracy
  • Proven VMS work procedure with only one measurement trolley
  • Single and multi control point mode
  • Automatic control point surveying

Accuracy

  • Single control point mode
    • absolute accuracy at control point: 1 mm
    • accuracy of track geometry: 1 mm
  • Multi control point mode
    • absolute accuracy: < 1 mm
    • high reliability

IMU – Inertial Measurement Unit

  • High-precision Inertial Measurement Unit
  • 3 Gyros and 3 Accelerometers
  • Integrated on-board computer

General Principle

  • Similar to current long chord / VMS method (VMS 1000 / 3000)
  • Relative position changes acquired by AMU 1030 instead of TPS
  • Geo-referencing by given absolute / relative control points (CPs)

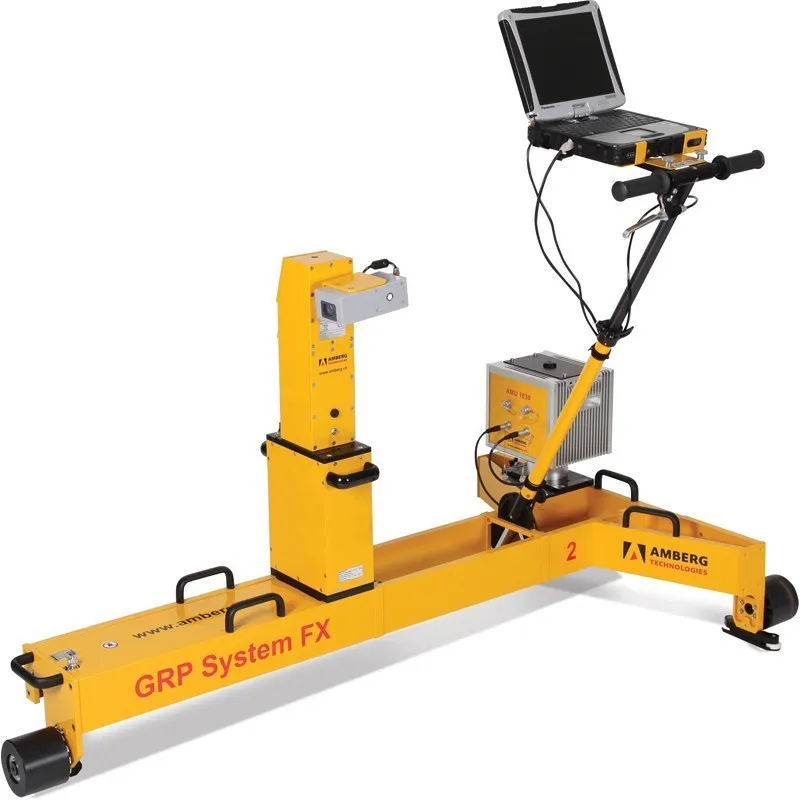

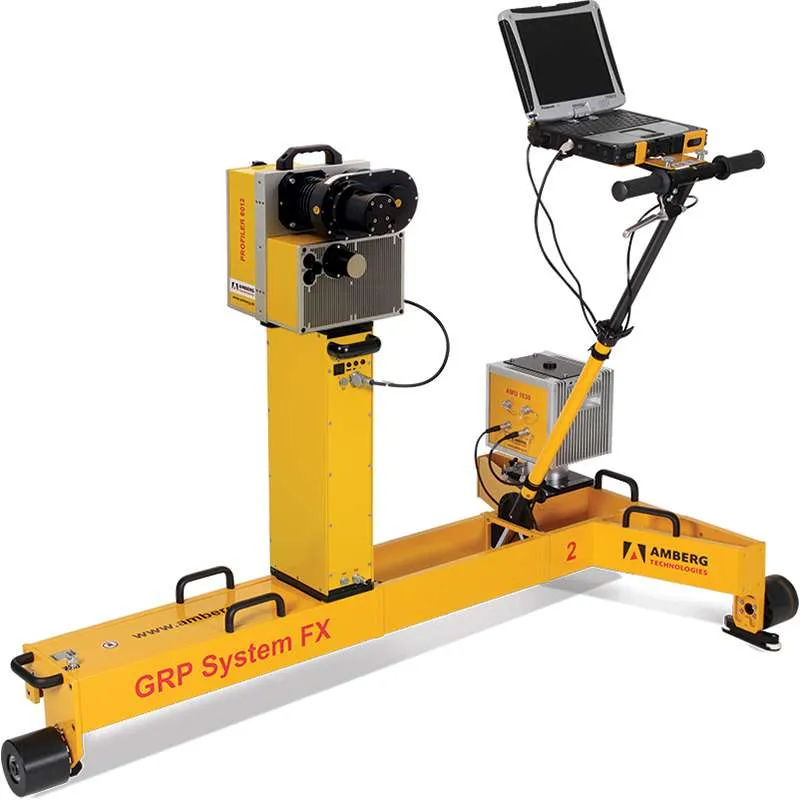

Amberg IMS 3000

  • GRP System FX basic measurement system
  • AMU 1030 sensor
  • Amberg Profiler 110 FX

Main features

  • Unrivalled measuring performance (up to 4 km/h)
  • Unique kinematic accuracy
  • Proven VMS work procedure with only one measurement trolley
  • Single control point mode
  • Manual control point surveying

Accuracy

  • Single control point mode
    • absolute accuracy at control point: 3 mm
    • accuracy of track geometry: 1 mm

AMU 1030

  • Measuring frequency 1000 Hz
  • 0.02° drift accuracy
  • Recording of 3D trajectory
  • 1 mm accuracy – chord length 150m, inner track geometry
  • Weight: 10.3 kg

Single CP Mode – Long-chord High Speed Mode

  • Speed up to 4 km/h
  • Long-chord principle
  • Off-set measurement at Start / End LP
  • Highest relative precision

Accuracy [mm] Accuracy [mm] CP Interval [m]
+/- 3 < 100m
+/- 5 < 200m
+/- 10 < 500m

Multi CP mode – Geodetic Long-chord Precision Mode

  • Geodetic Long-chord method
  • Geodetic set-up at Start / End LP
  • Highest absolute and relative precicion

Accuracy [mm] Accuracy [mm] CP Interval [m]
+/- 1 < 100m
+/- 2 < 200m
+/- 5 < 500m

Technology Slab Track Ballasted Track
System Configuration
IMS 1000
IMS 3000
Modus Multi CP Single CP
Accuracy
  • Absolute position
  • Relative geometry at 300m chord length

+/- 1 mm
1.5 mm

+/- 2-5 mm
1.5 mm
Measuring speed
  • Maximum
  • Typical average

4 km/h
1’000 m/h

4 km/h
2’500 m/h
Line of sight Required for setup No requirements
Refraction
  • Absolute position
  • Relative position

During setup
No

No
No
Staff 1 Operator
2 Assistants
1 Operator
1 Assistant
Performance table - System comparison
System
Absolute Accuracy [mm]
Performance Shift [8 hours]
Performance per hour
Survey Crew
GRP 1000 +/- 1 4'800 600 4
VMS 1000 +/- 5 10'400 1'300 2-3
VMS 3000 +/- 5 9'200 1'150 2-3
IMS 1000 +/- 3 20'000 2'500 2
