Amberg Rail Tamping VMS

Innovation of a proven principle for track works

• Digital long chord method
• Ground-breaking performance of up to 2000 m/h
• Combined survey of track and lateral distance offsets in one run
• Greatest operational fl exibility – thanks to twin-trolley-mode and tripod-mode option
• Integrated fi xed-point measuring device
• Cost savings of 70 % and more compared to manual / optical chord methods
• Safe digital data handling – from initial data input to final transfer of correction data
• Easy handling and fl exible transportation

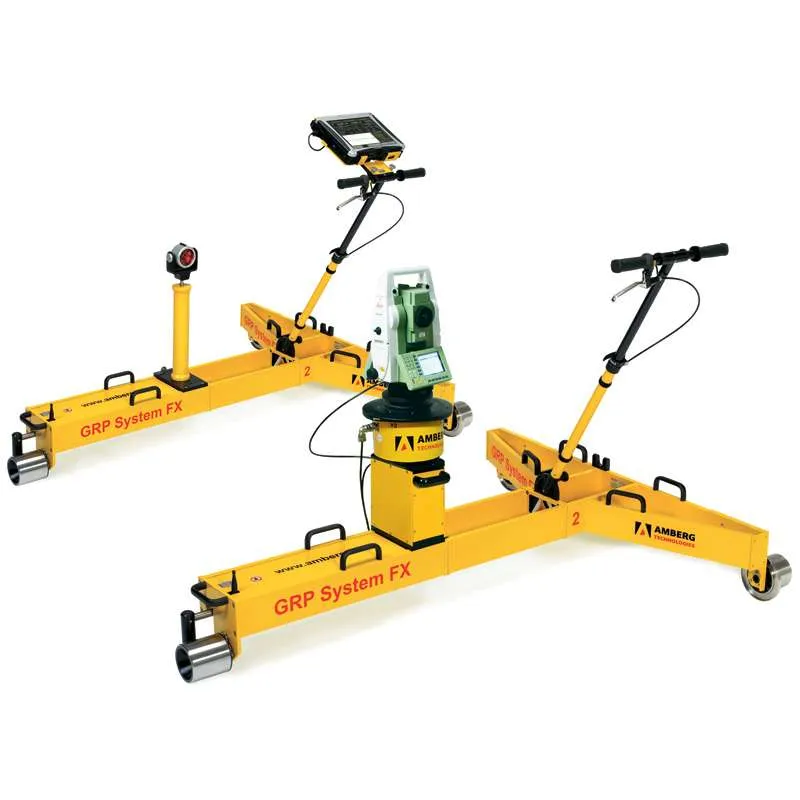

High performance for long track sections – VMS Twin-Trolley-Mode

• 1st Choice for measurements during track closures
• High performance of up to 2 km/h
• Length of reference chord of up to 250 m
• Automatic tripod for quick and easy self-levelling of laser tachymeter
• LED lightening bar assuring safe work during night
• User friendly handling specially designed for track worker

Greatest fl exibility under demanding project conditions – VMS Tripod-Mode

• Ideal for short track sections, e.g. turn outs, multi- track sections and projects with limited track access
• Length of reference chord of up to 400 m
• Flexible measuring mode – as twin-trolley-mode – complemented by Flex-Stop functionality
• Immediate measurement stop for rapid track clearance on demand – without impact on performance
• Modular system design allows upgrading at any time e.g 2nd trolley and other survey applications
