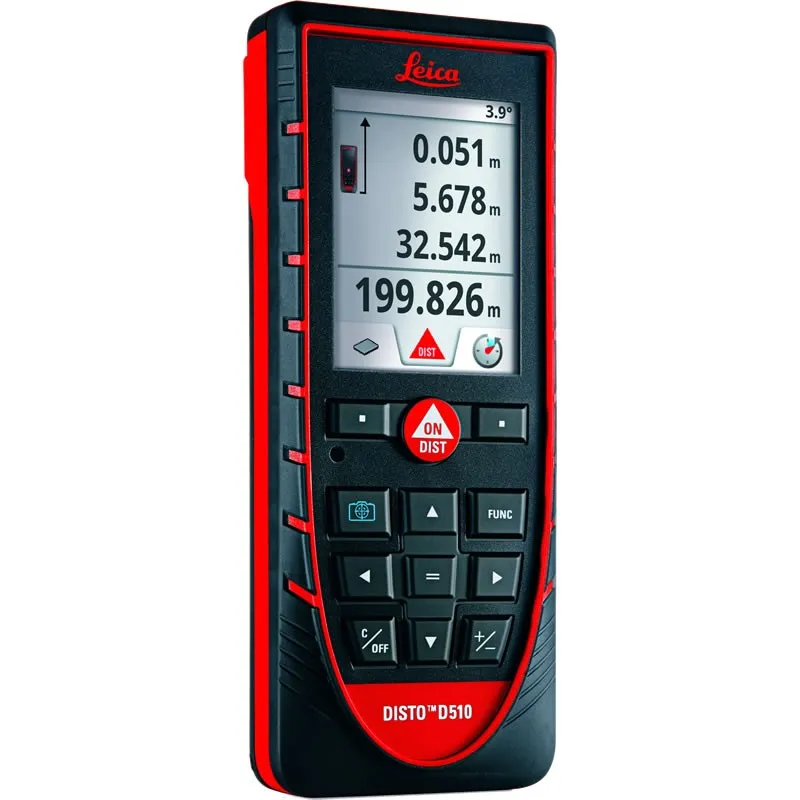

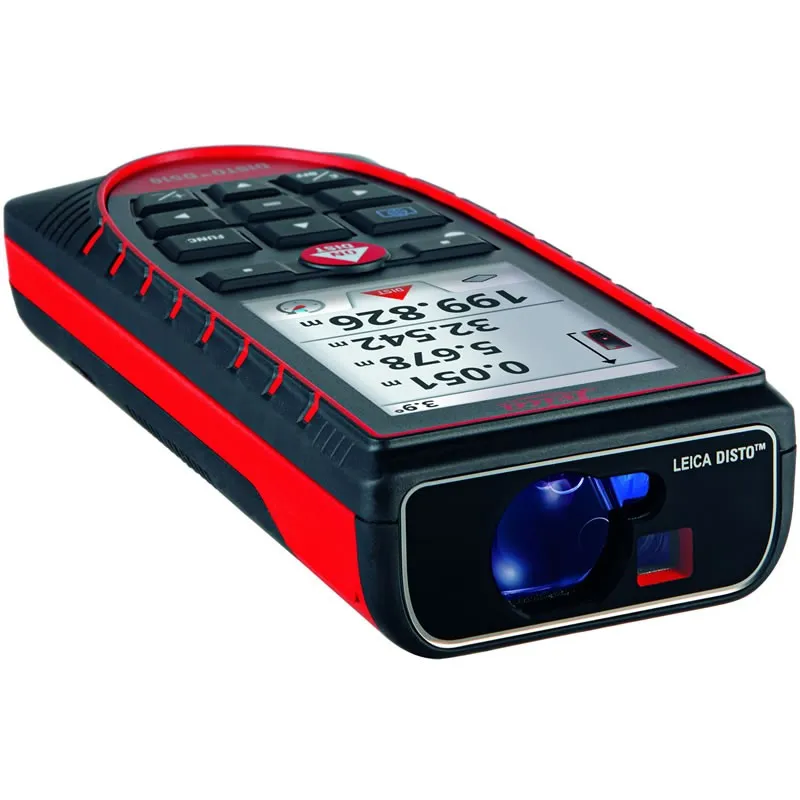

Leica Disto D510 Laser Distance Meter

2,800.00 SAR

In stock

The Leica DISTO™ D510 is an easy to use laser distance meter with an intuitive interface and 200m range. The Pointfinder with 4x zoom allows for accurate measuring where there is no reflective target which can occur when working outside in bright conditions. The 360° tilt sensor can measure both angles and distances and can be used in conjunction with the Pointfinder to provide indirect measurements.

The Disto D510 is also extremely durable and ideal for all working environments and weather conditions. It is protected to IP65 rating and is protected against water and also dust proof, making it very easy to clean.

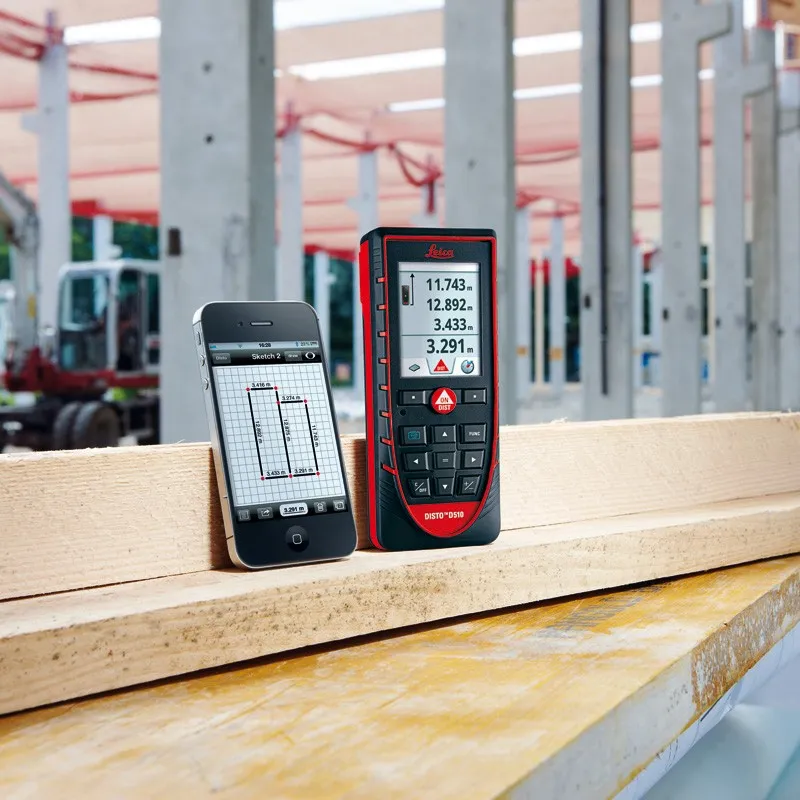

The Disto D510 is Bluetooth® Smart Ready so it easily transfers measuring information to other devices such as the iPad and iPhone simply and can be used with the FREE Leica Disto Sketch app (available from iTunes). Easily draw sketches and assign measuring results. Use the app to edit or overwrite photographs and draw ground plans or tables.

Leica Disto Sketch is the ideal interface between a DISTO and smart phone or tablet. They allow sketches or photographs to be created and dimensioned quickly, or the transfer of measurements into a chart. The data can be sent to the office by e-mail. This simplifies and speeds up your workflow.

At a glance:

  • Easy to use
  • 200m Range
  • Intuitive user interface
  • Bluetooth® Smart Ready
  • Communicates with Apple iPad, iPhone
  • Free App – Leica DISTO™ sketch
  • Pointfinder with 4x zoom
  • Protected to IP65 – water jet protection and dust-tight extremely robust for all working environments
  • 360° tilt sensor
  • Smart Horizontal Mode™
  • Height tracking

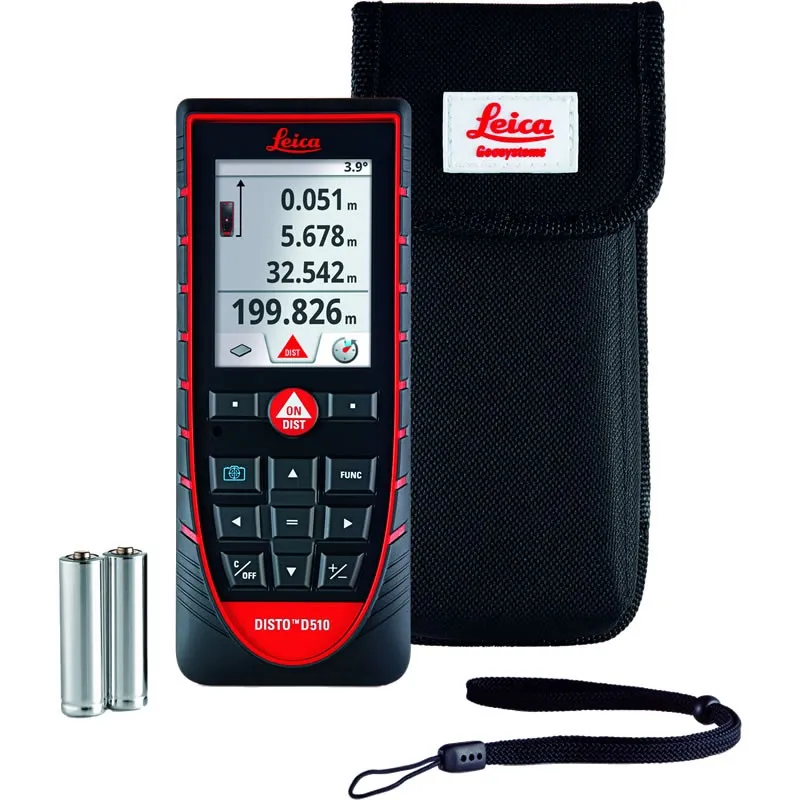

  • Leica DISTO™ D510 laser distance meter
  • Holster
  • Hand loop
  • Batteries

In stock

SKU: 792290 Categories: ,


Disto D510 Modern Ergonomics

Leica provide simple and easy-to-use solutions for intricate measuring jobs. The new Leica DISTO™ D510 has had its user interface developed to cell phones. Repeated and favoured functions can be designated to specific keys to allow for single button press and the help function is always to hand should you need it.

IP65 – Sealed against Water and Dust

For use in harsh weather conditions, the D510 laser distance meter’s housing is sealed from water and dust and it is ideal for working environments such as construction sites.

ISO 16331-1 – The Standard for Laser Distance Meters

The range and accuracy of laser distance meters are dependant on light conditions and on the reflectivity of the measuring target. Leica Geosystems’ laser distance meters perform in perfect conditions but also in the everyday working environment . Working together with external experts, Leica Geosystems have developed a standard by which all laser distance meters can be tested and compared to each other.

Accuracy, typ. ± 1 mm
Range 0.05 – 200 m
Measuring units m, ft, in, yd
Tilt sensor 360°
Color display with Pointfinder 4x zoom
Data interface* Bluetooth® Smart
Free App* Leica DISTO™ sketch
Batteries 2 x AA
Dimensions 143 × 58 × 29 mm
Memory 30 Displays

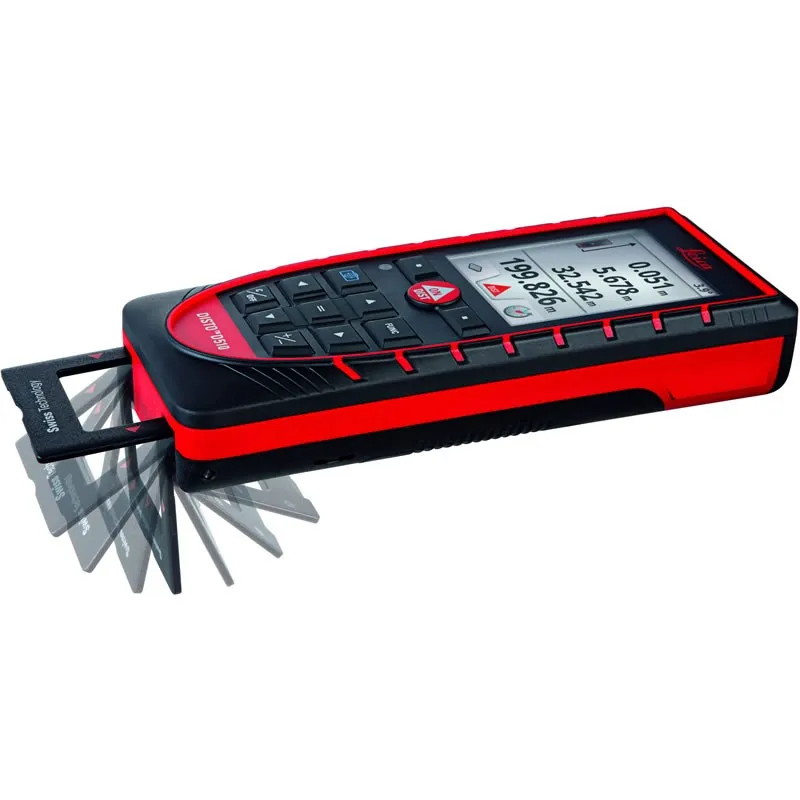

Multifunctional end-piece automatic recognition
Distance measurement Inclination tracking
Min/max measurement Area/volume
Smart Horizontal Mode Addition/subtraction
Height tracking Pythagoras
Height profile Stake-out
Sloped objects Trapezium
Long Range Mode Calculator
